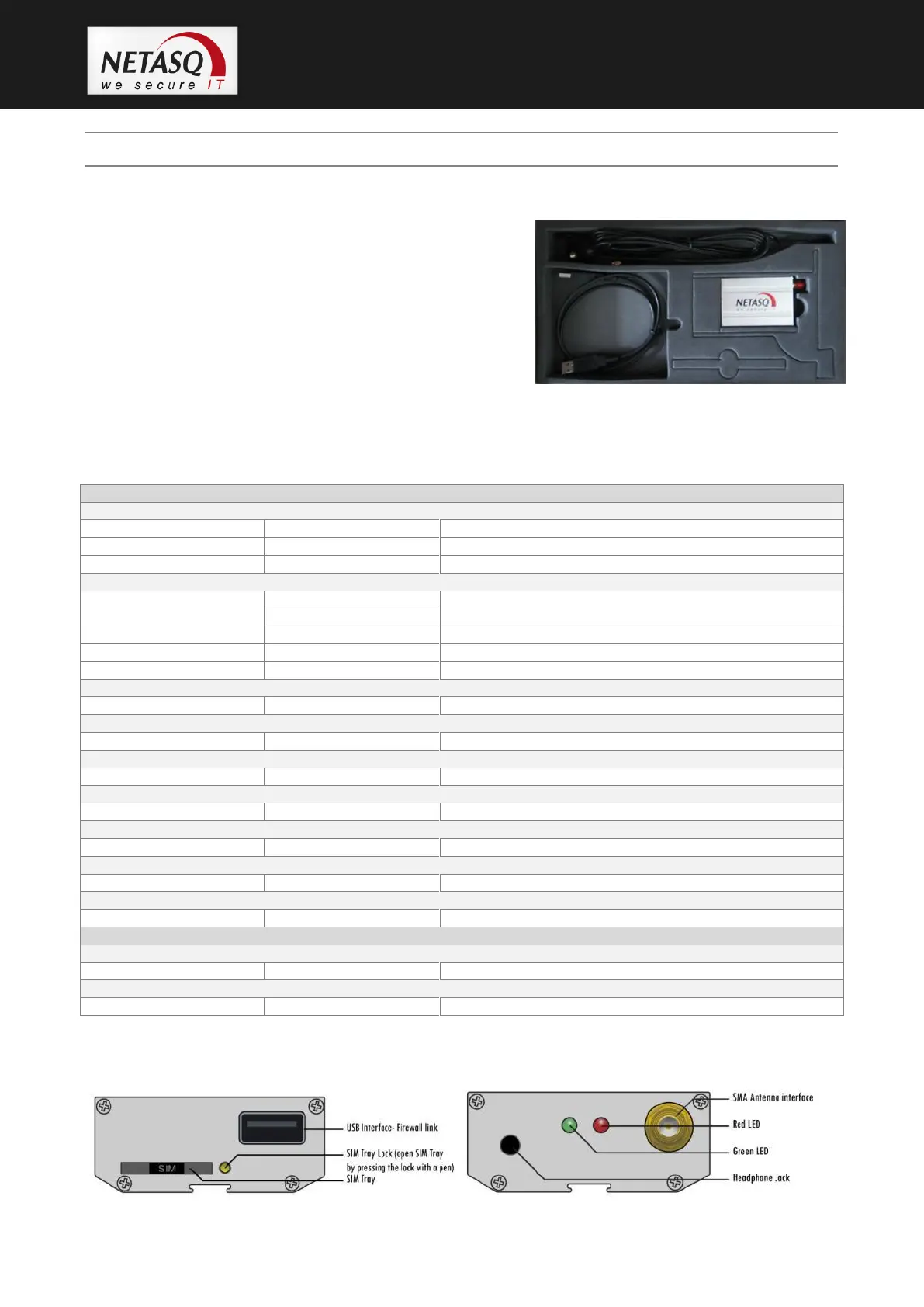

APPENDIX G: INSTALLING THE 3G MODEM
APPENDIX G: INSTALLING THE 3G MODEM
General points
Contents of the parcel
The pack consists of a modem, an antenna with its base
and a USB cable.
Appliances concerned
All U and NG series appliances.
Modem Specifications
NETASQ 3G-MODEM (NA-EXT-3GM)
Frequencies
EDGE/GPRS/GSM
Quad-band 850/900/1800/1900MHz
HSDPA/UMTS
Tri-band 850/1900/2100 MHz
Access/Standards
HSUPA
3GPP R6, up to 5.76Mbps(max) UL, Category 4
HSDPA
3GPP R5, up to 7.2 Mbps(max) DL, Category 8
WCDMA(UMTS)
Up to 384 Kbps DL and UL
EDGE(EGPRS)
3GPP Release4, class 10, up to 236.8Kbps DL and 118.4Kbps UL
GPRS/GSM
Up to 85,6 Kbps DL and 42,8 Kbps UL
SIM Interface
Standard 6 PIN interface
USB Interface
USB 2.0
Power Supply
5Vdc by USB interface
Dimensions
71(D)×49(W)×20(H)mm
Weight
Hardware 50g
Enhanced antenna 55g
Operational Temperature
-20 to +60°C
Certifications
CE, FCC, ROHS
ANTENNA
Interface
SMA
Frequency range
800-2800 (MHz)
Overview
