NETGEAR DGN1000 User Manual

Hardware Setup
15
N150 Wireless ADSL2+ Modem Router DGN1000

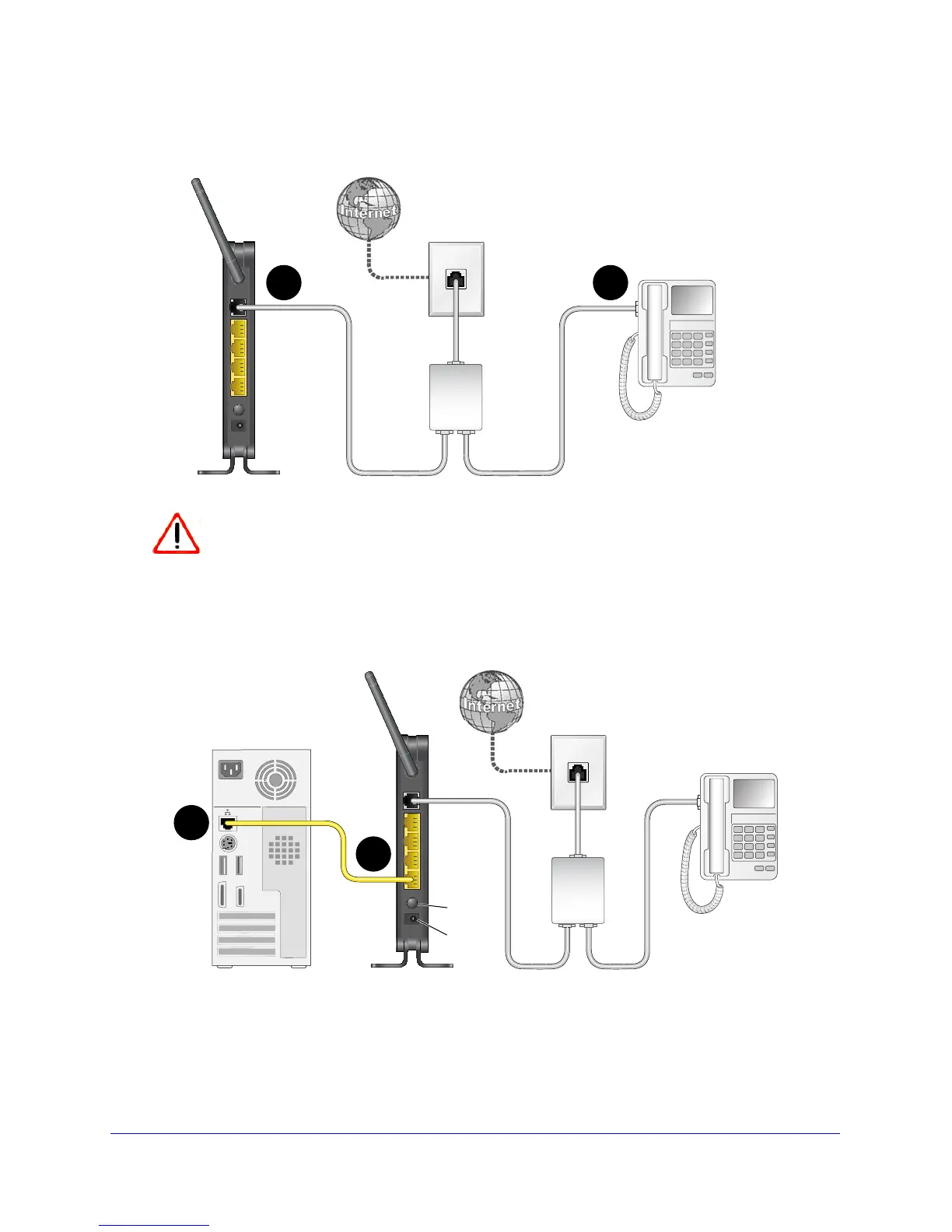

2. Use the included phone cable with RJ-11 jacks to connect the ADSL port (A) of the wireless
modem router to the ADSL port (B) of the two-line ADSL microfilter.
A
B
ADSL
Phone
Line
CAUTION:
Incorrectly connecting a filter to your wireless modem router blocks your
DSL connection.
3. Connect the Ethernet cable (C) from a wireless modem router LAN port to the Ethernet
adapter (D) in your computer.
ADSL
Phone
Line
D
C
On/Off
Power
1
2
3
4
.
4. Plug the power adapter into the AC power adapter input (labeled Power), and plug the other
end into a power outlet
.
5. Connect any additional wired PCs to your router by inserting an Ethernet cable from a PC
into one of the th
ree remaining LAN ports.

NETGEAR DGN1000 Specifications

General

Wireless Standard	802.11b/g/n
Frequency Band	2.4 GHz
Wireless Speed	Up to 150 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Port	1 x ADSL2+
Security	WEP, WPA, WPA2
Firewall	SPI, NAT
Antenna	Internal
Weight	0.6 lbs
