NETGEAR DGN1000 User Manual

Hardware Setup
9
N150 Wireless ADSL2+ Modem Router DGN1000
Back Panel
The back panel has the On/Off button and the port connections shown in the following figure:
ADSL line
Ethernet LAN ports
Power button
AC power adapter input

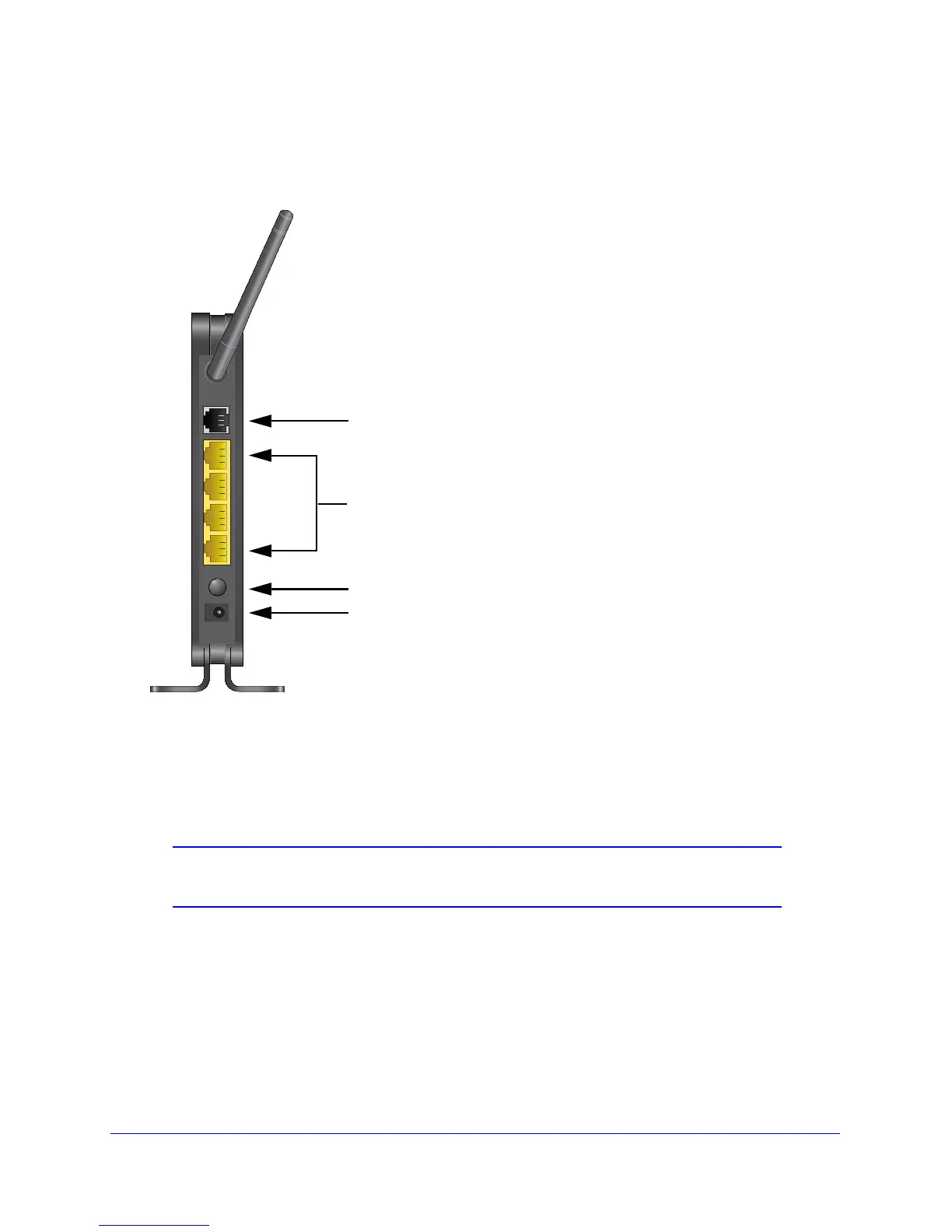

Figure 4. Back panel port connections
Viewed from left to right, the rear panel contains the following elements:
1. RJ-11 Asynchronous DSL (ADSL) port for connecting the wireless modem router to a
DSL line
Note: An ADSL port is capable of sending data over a DSL line at one
speed and receiving it at another speed.
2. Four Ethernet RJ-45 LAN ports to cable the wireless modem router to the local computers
3. Power button to turn the router on and off.
4.
AC power adapter input

NETGEAR DGN1000 Specifications

General

Wireless Standard	802.11b/g/n
Frequency Band	2.4 GHz
Wireless Speed	Up to 150 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Port	1 x ADSL2+
Security	WEP, WPA, WPA2
Firewall	SPI, NAT
Antenna	Internal
Weight	0.6 lbs
