Advanced Settings
73
N150 Wireless ADSL2+ Modem Router DGN1000
WAN Setup
The WAN Setup screen lets you configure a DMZ (demilitarized zone) server, change the
Maximum Transmit Unit (MTU) size, and enable the wireless router to respond to a ping on
the WAN (Internet) port. Select.
To set up the WAN:

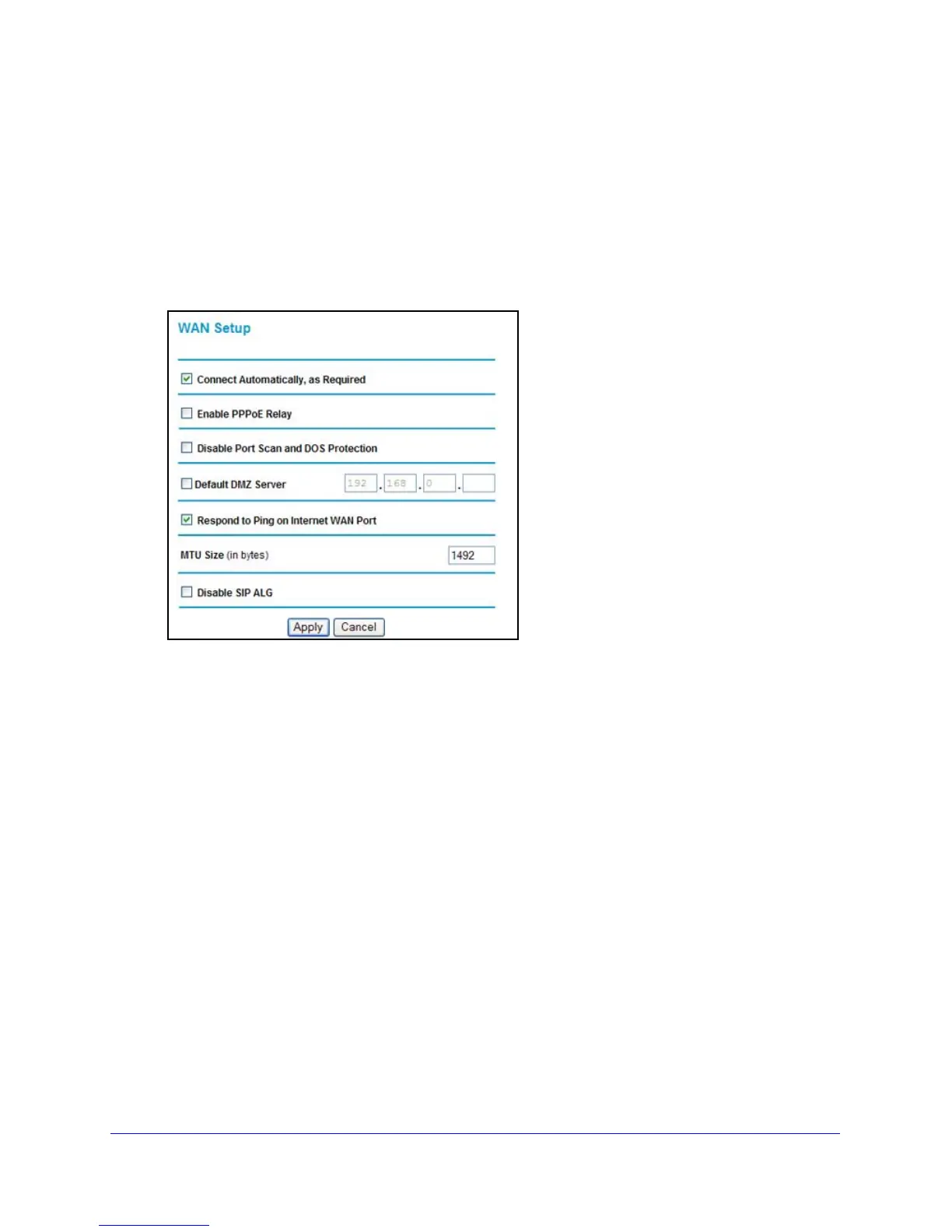

1. Select Advanced > W
AN Setup to display the following screen:
2. Fill in the fields as follows:
Connect Automatically, as Required. This o
ption is enabled by default so that Internet
connections are made automatically whenever Internet-bound traffic is detected. If this
causes high connection costs, you can disable this setting and connect manually from the
Router Status screen. See In the Router Status screen, select the Connection Status
button to display a screen similar to this: on page 69
.
Enable PPPoE Relay. When
enabled, this feature allows a PPPoE client on a local PC to
connect to a remote PPPoE server with the gateway acting as a relay agent.
Disable Port Scan and DOS Protection. The firewall prot
ects your LAN against port
scans and denial of service (DOS) attacks. This protection should be disabled only in
special circumstances.
Default DMZ Server. The default demilit
arized zone (DMZ) server feature is helpful when
you use online games and video conferencing applications that are incompatible with
NAT. The wireless modem router is programmed to recognize some of these applications
and to work correctly with them, but there are other applications that might not function
well. In some cases, one local computer can run the application correctly if that
computer’s IP address is entered as the default DMZ server.
