NETGEAR DGN1000 User Manual

Network Maintenance
70
N150 Wireless ADSL2+ Modem Router DGN1000
View Attached Devices

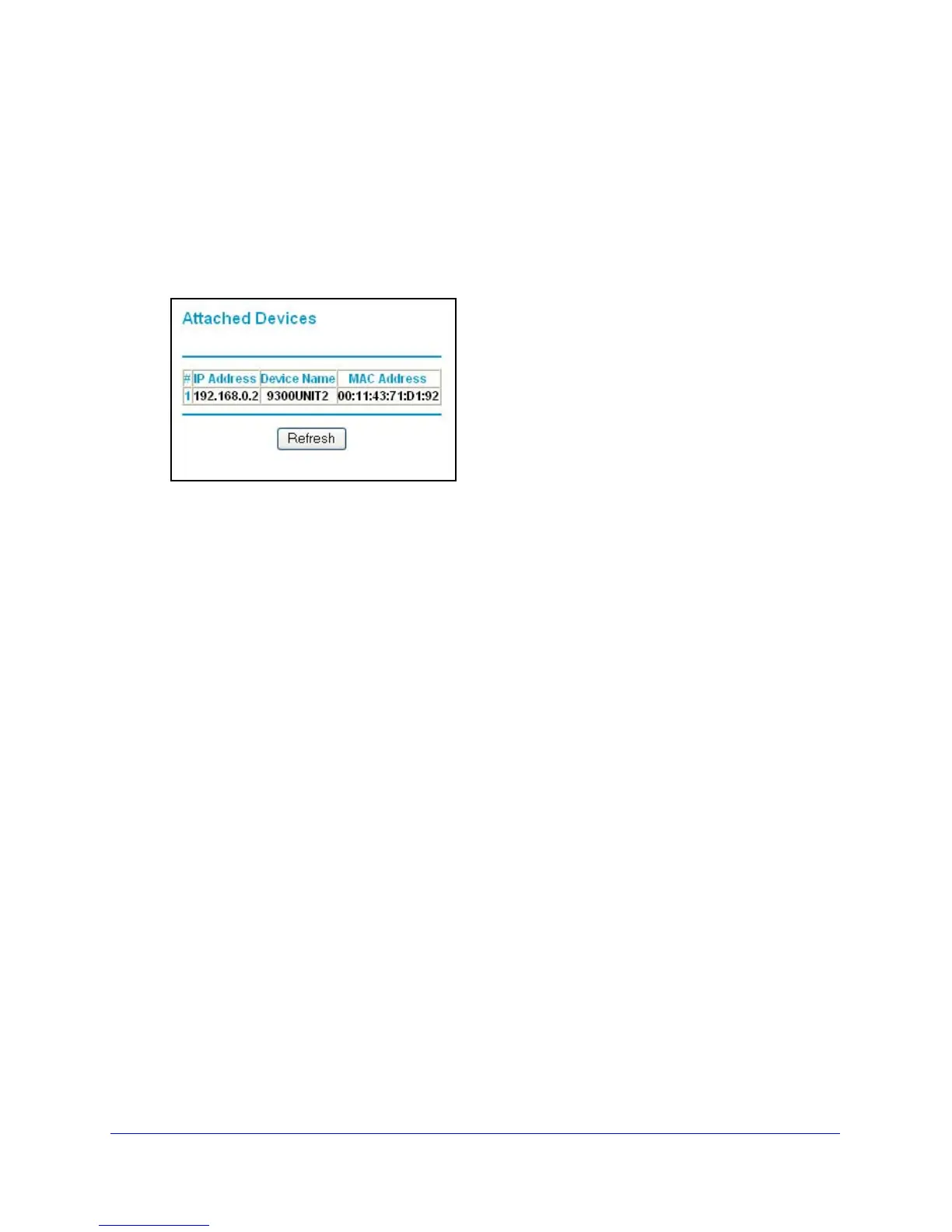

The Attached Devices screen presents a table of all IP devices that the wireless modem
router has discovered on the local network.
 To view attached devices:
1. Select Maintenanc
e > Attached Devices to view the following table:
2. Click Refresh to update the screen.
For each device, the table shows the IP address, device name if available, and the Ethernet
MAC address. Note th
at if the wireless modem router is rebooted, the table data is lost until
the wireless modem router rediscovers the devices. To force the wireless modem router to
look for attached devices, click the Refresh button.

NETGEAR DGN1000 Specifications

General

Wireless Standard	802.11b/g/n
Frequency Band	2.4 GHz
Wireless Speed	Up to 150 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Port	1 x ADSL2+
Security	WEP, WPA, WPA2
Firewall	SPI, NAT
Antenna	Internal
Weight	0.6 lbs
