NETGEAR DGN1000 User Manual

Network Maintenance
66
N150 Wireless ADSL2+ Modem Router DGN1000
View Router Status
 To view the router status:

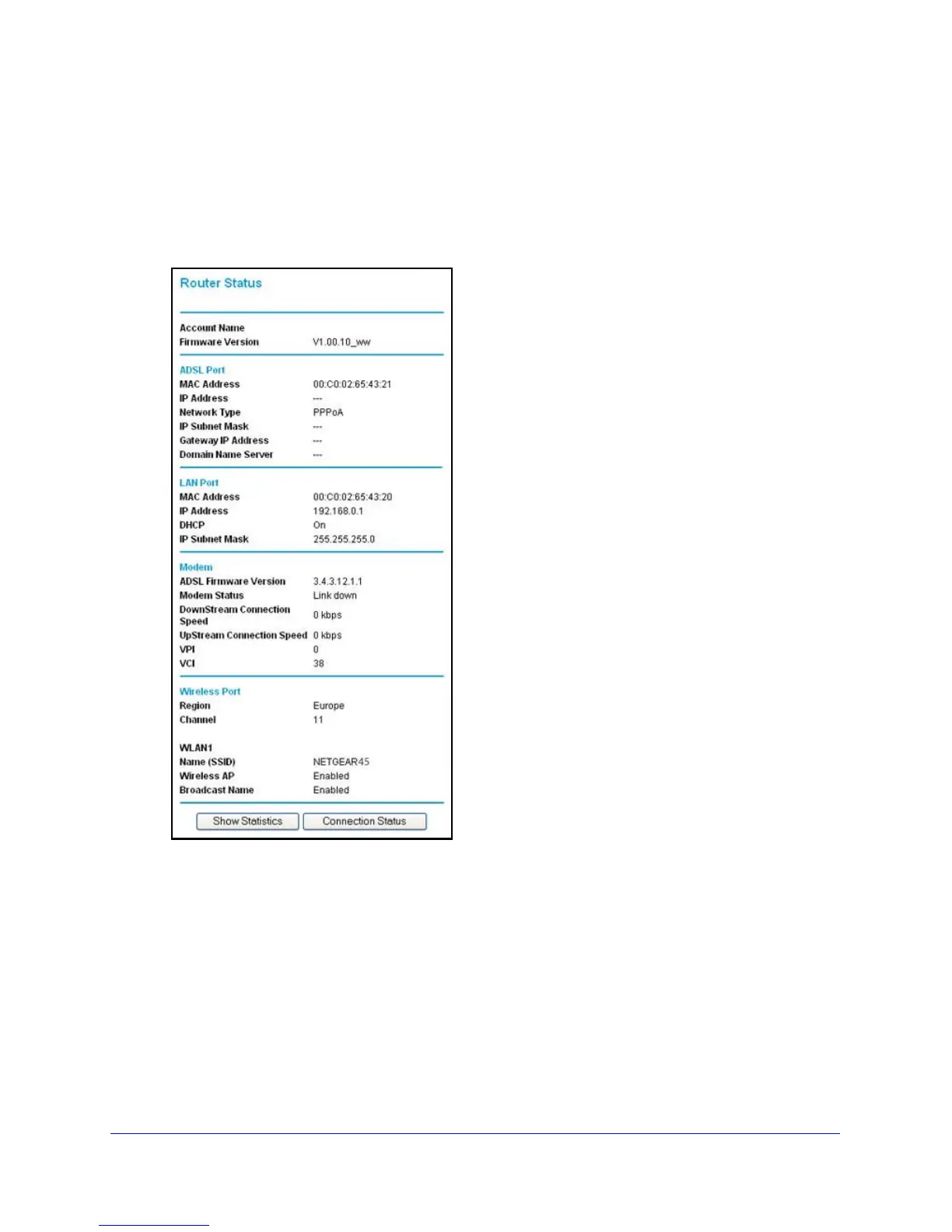

1. Select Maintenance
> Router Status to display the following screen. The Router Status
screen provides the status and usage information described in the following figure.
2. Fill in the fields as follows:
Account Name. The host
name assigned in the Basic Settings screen.
Firmware Version. The firmware version.
ADSL Port.
MAC Address. The Ethern
et MAC ad
dress of the DSL port.
IP Address. The DSL port
IP address. If no address is shown, the wireless modem
router cannot connect to the Internet.
Network Type. The valu
e depe
nds on your ISP.
IP Subnet Mask. The DSL po
rt IP subnet mask.

NETGEAR DGN1000 Specifications

General

Wireless Standard	802.11b/g/n
Frequency Band	2.4 GHz
Wireless Speed	Up to 150 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Port	1 x ADSL2+
Security	WEP, WPA, WPA2
Firewall	SPI, NAT
Antenna	Internal
Weight	0.6 lbs
