NETGEAR DGN1000 User Manual

Network Maintenance
69
N150 Wireless ADSL2+ Modem Router DGN1000

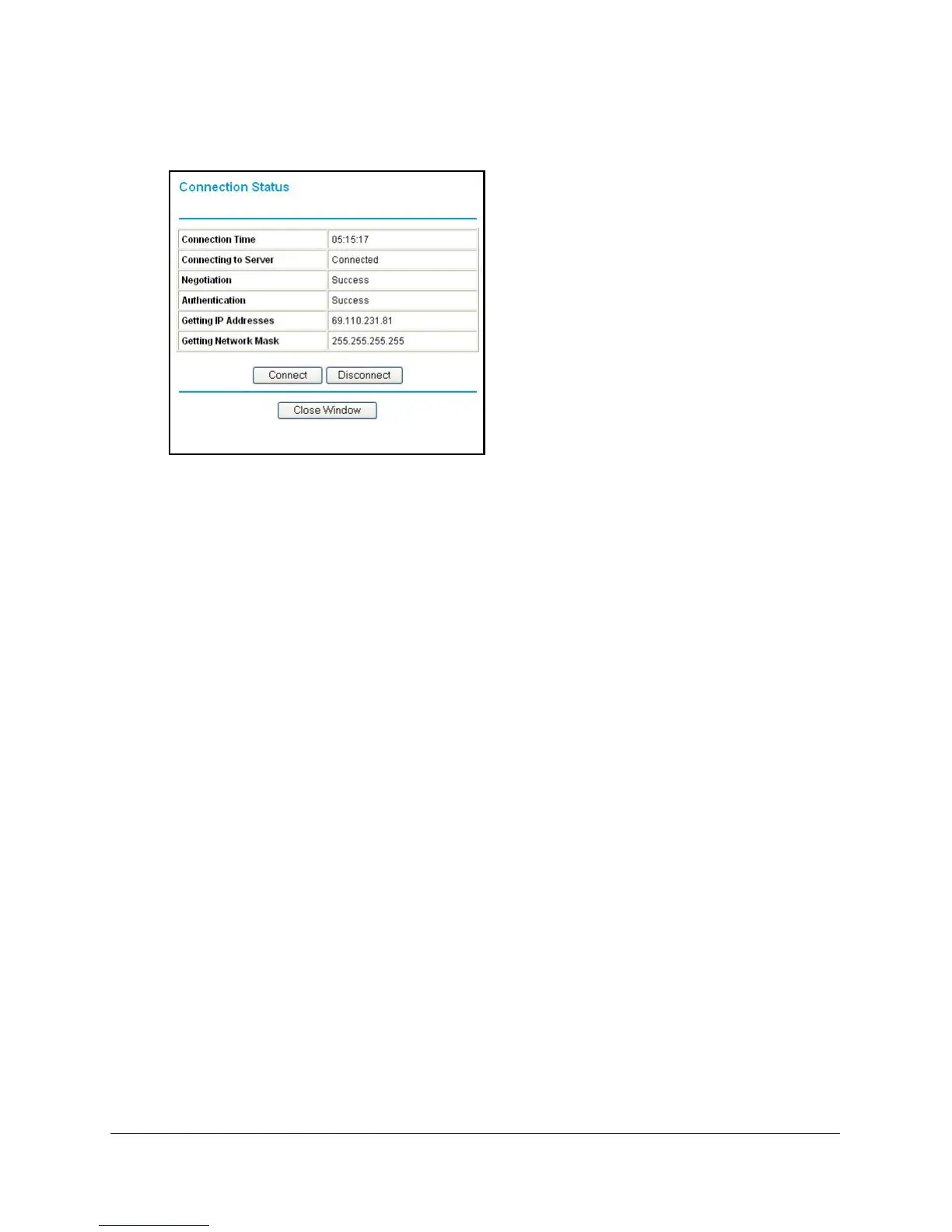

5. In the Router Status screen, select the Connection Status button to display a screen similar
to this:
6. Fill in the fields as follows:
Connection Time. The time
elapsed since the last connection to the Internet through the
DSL port.
Connecting to sender. T
he connection
status.
Negotiation. Su
ccess or Failed.
Authentication. Success or Failed
.
Obtaining IP Address. The IP a
ddress assigned to the WAN port by the ISP.
Obtaining Network Mask. The network mask assigned
to the WAN port by the ISP.

NETGEAR DGN1000 Specifications

General

Wireless Standard	802.11b/g/n
Frequency Band	2.4 GHz
Wireless Speed	Up to 150 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Port	1 x ADSL2+
Security	WEP, WPA, WPA2
Firewall	SPI, NAT
Antenna	Internal
Weight	0.6 lbs
