NETGEAR DGN1000 User Manual

Security Settings
55
N150 Wireless ADSL2+ Modem Router DGN1000

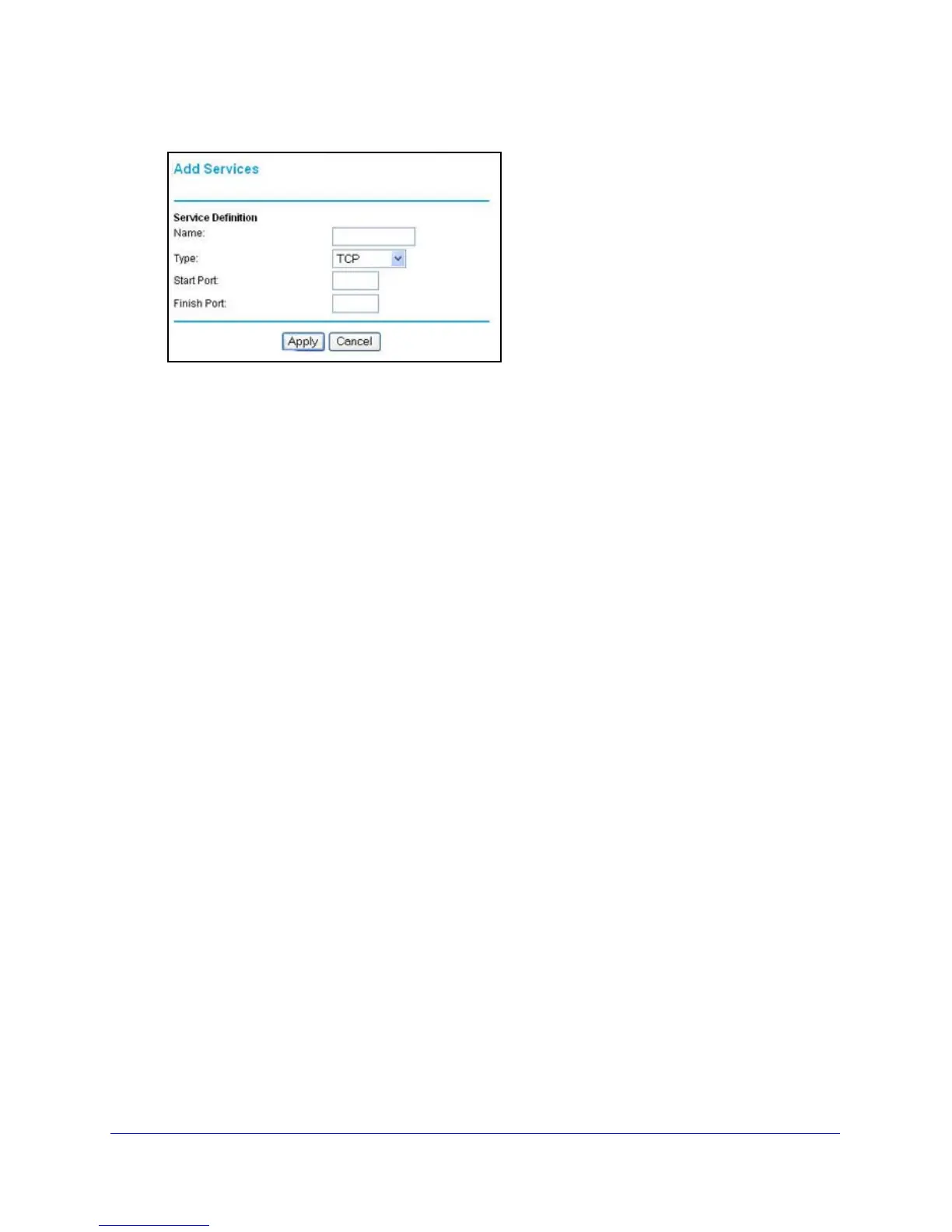

2. Use the following screen to define or edit a service.
‘
• Name. Enter a meaningful name for the service.
• Type. Sele
ct the correct type for this service. If in doubt, select TCP/UDP. The options
are TCP, UDP, TCP/UDP.
• Start Port and End
Port. If a port range is required, enter the range here. If a single
port is required, enter the same value in both fields.
3. Click Appl
y to save your changes.

NETGEAR DGN1000 Specifications

General

Wireless Standard	802.11b/g/n
Frequency Band	2.4 GHz
Wireless Speed	Up to 150 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Port	1 x ADSL2+
Security	WEP, WPA, WPA2
Firewall	SPI, NAT
Antenna	Internal
Weight	0.6 lbs
