130 | Chapter 4: Configuring Quality of Service
FS728TP Smart Switch Software Administration Manual
Diffserv Configuration

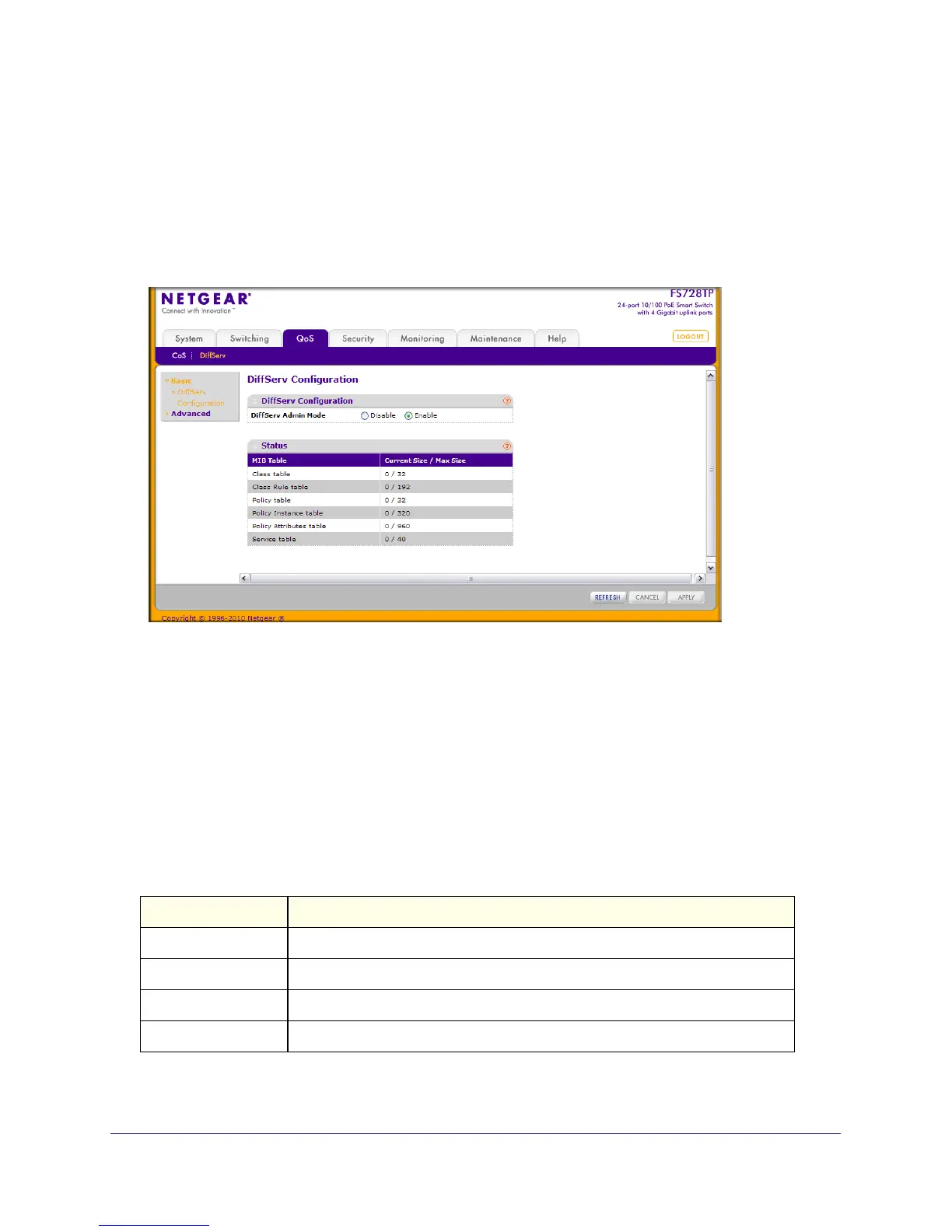

Use the Diffserv Configuration page to display DiffServ General Status Group information,
which includes the current administrative mode setting as well as the current and maximum
number of rows in each of the main DiffServ private MIB tables.
To display the page, click QoS DiffServ Advanced Diffserv Configuration.
To configure the global DiffServ mode:
1. Select the administrative mode for DiffServ:
• Enable. Differentiated Services are active.
• Disable. The DiffServ configuration is retained and can be changed, but it is not
active.
2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.
3. If you make changes to the page, click Apply to apply the changes to the system.
The following table describes the information displayed in the Status table on the DiffServ
Configuration page:
Field Description
Class Table Displays the current and maximum number of rows of the class table.
Class Rule Table Displays the current and maximum number of rows of the class rule table.
Policy Table Displays the current and maximum number of rows of the policy table.
Policy Instance Table Displays the current and maximum number of rows of the policy instance table.
