18 | Chapter 1: Getting Started
FS728TP Smart Switch Software Administration Manual
Web Access
To access the FS728TP management interface, use one of the following methods:
• From the Smart Control Center, select the switch and click Web Browser Access.
• Open a Web browser and enter the IP address of the switch in the address field.
You must be able to ping the IP address of the FS728TP management interface from your
administrative system for Web access to be available. If you used the Smart Control Center
to set up the IP address and subnet mask, either with or without a DHCP server, use that IP
address in the address field of your Web browser. If you did not change the IP address of the
switch from the default value, enter 192.168.0.239 into the address field.
Clicking Web Browser Access on the Smart Control Center or accessing the switch directly

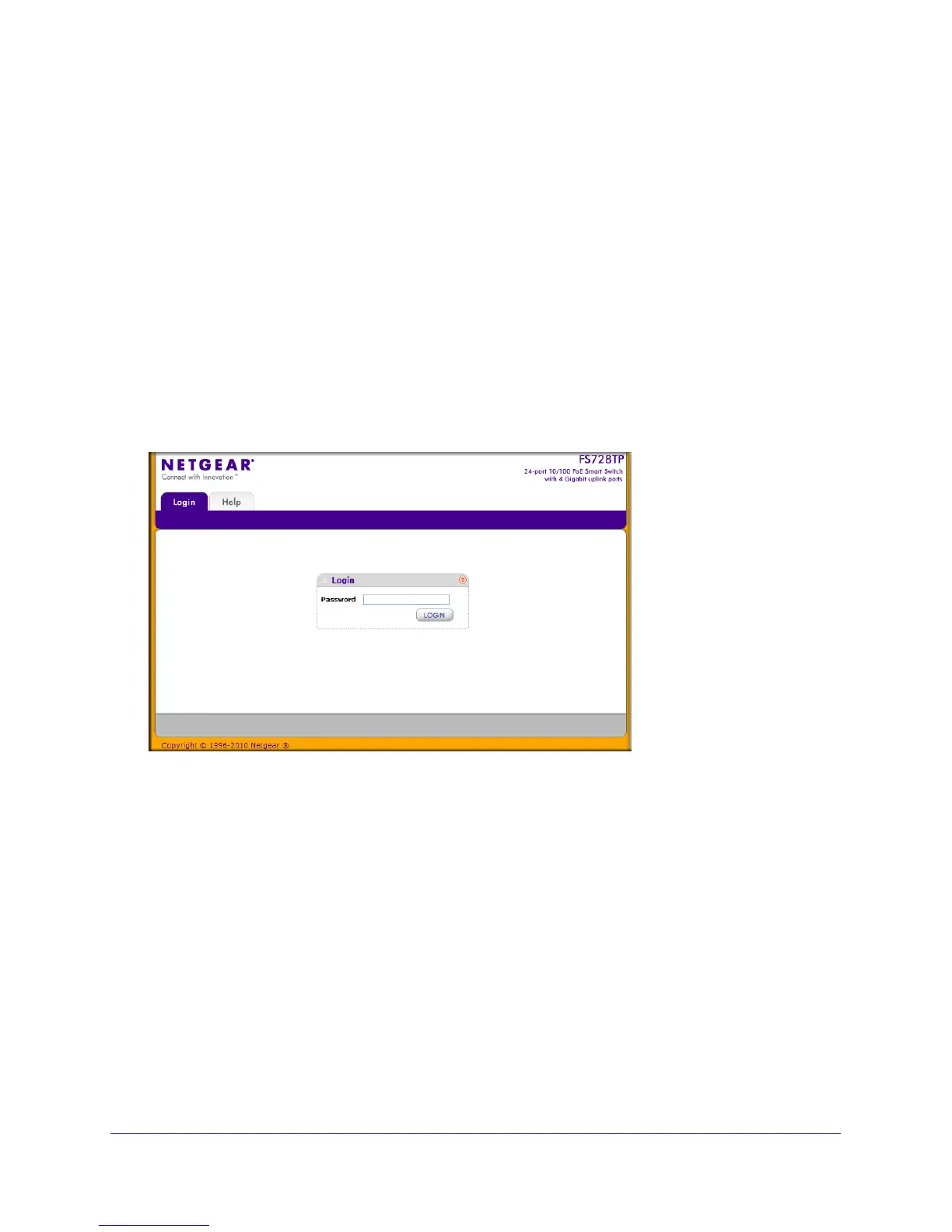

from your Web browser displays the login screen shown in the following figure.
Figure 2. Login Screen
