60 | Chapter 2: Configuring System Information
FS728TP Smart Switch Software Administration Manual

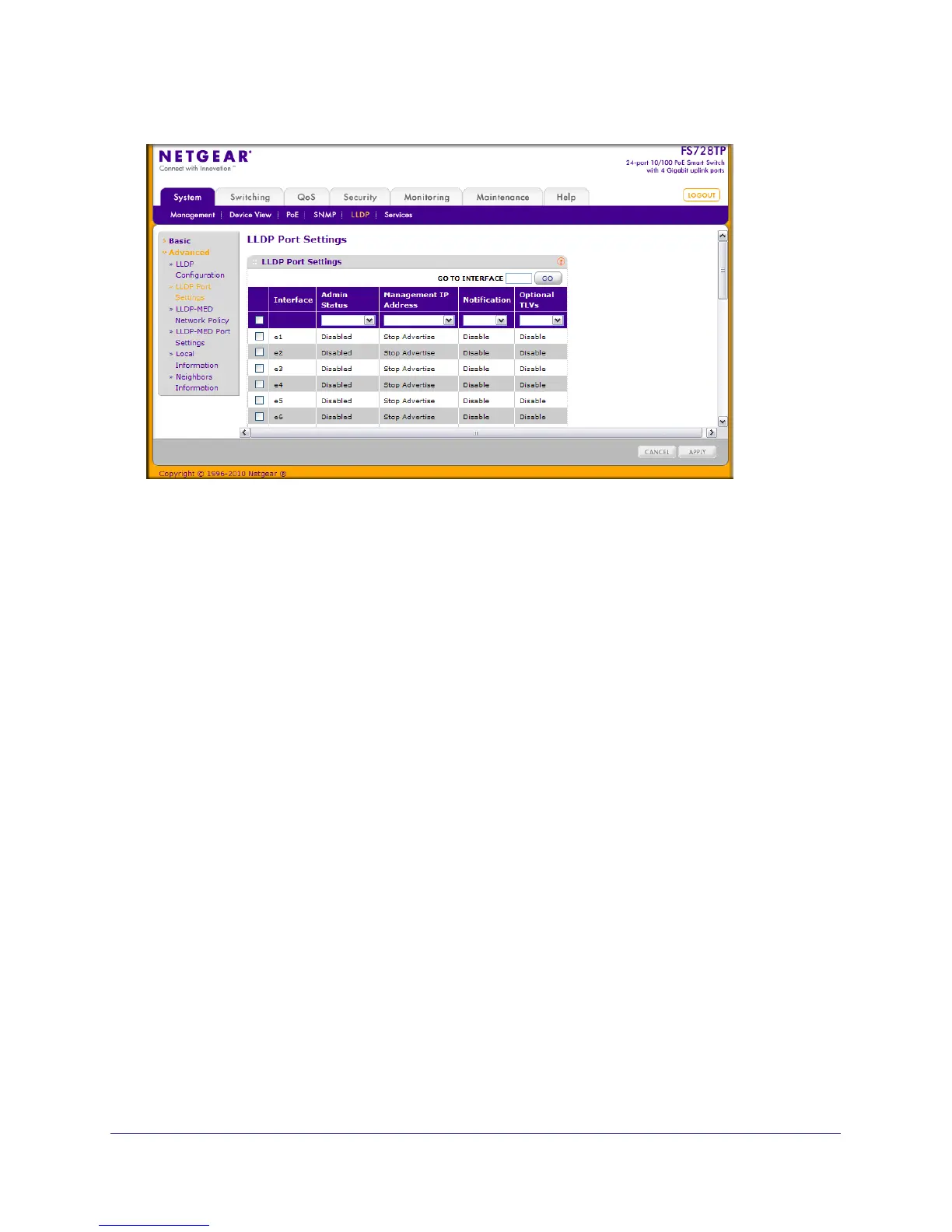

To configure LLDP port settings:
1. Change the LLDP port settings described below:
• Interface. Specifies the port to be affected by these parameters.
• Admin Status. Select the status for transmitting and receiving LLDP packets:
• Tx Only: Enable only transmitting LLDP Protocol Data Units (PDUs) on the
selected ports.
• Rx Only: Enable only receiving LLDP PDUs on the selected ports.
• Tx and Rx: Enable both transmitting and receiving LLDP PDUs on the selected
ports.
• Disabled: Do not transmit or receive LLDP PDUs on the selected ports.
• Management IP Address. Choose whether to advertise the management IP address
from the interface. The possible field values are:
• Stop Advertise: Do not advertise the management IP address from the interface.
• Auto Advertise: Advertise the current IP address of the device as the
management IP address.
• Notification. When notifications are enabled, LLDP interacts with the Trap Manager to
notify subscribers of remote data change statistics. The default is Disabled.
• Optional TLV(s). Enable or disable the transmission of optional type-length value
(TLV) information from the interface. The TLV information includes the system name,
system description, system capabilities, and port description. To configure the
System Name, see
Management on page 32. To configure the Port Description, see
Ports on page 74.
2. If you make any changes to the page, click Apply to apply the new settings to the system.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.
