Chapter 3: Configuring Switching Information | 79
FS728TP Smart Switch Software Administration Manual
To configure LAG members:
1. From the LAG ID field, select the LAG to which to assign ports.
2. Optionally, in the LAG Name field, enter the name you want assigned to the LAG. You may
enter any string of up to 15 alphanumeric characters.
3. Specify whether to enable or disable the following:
4. Click the orange bar to display the ports.

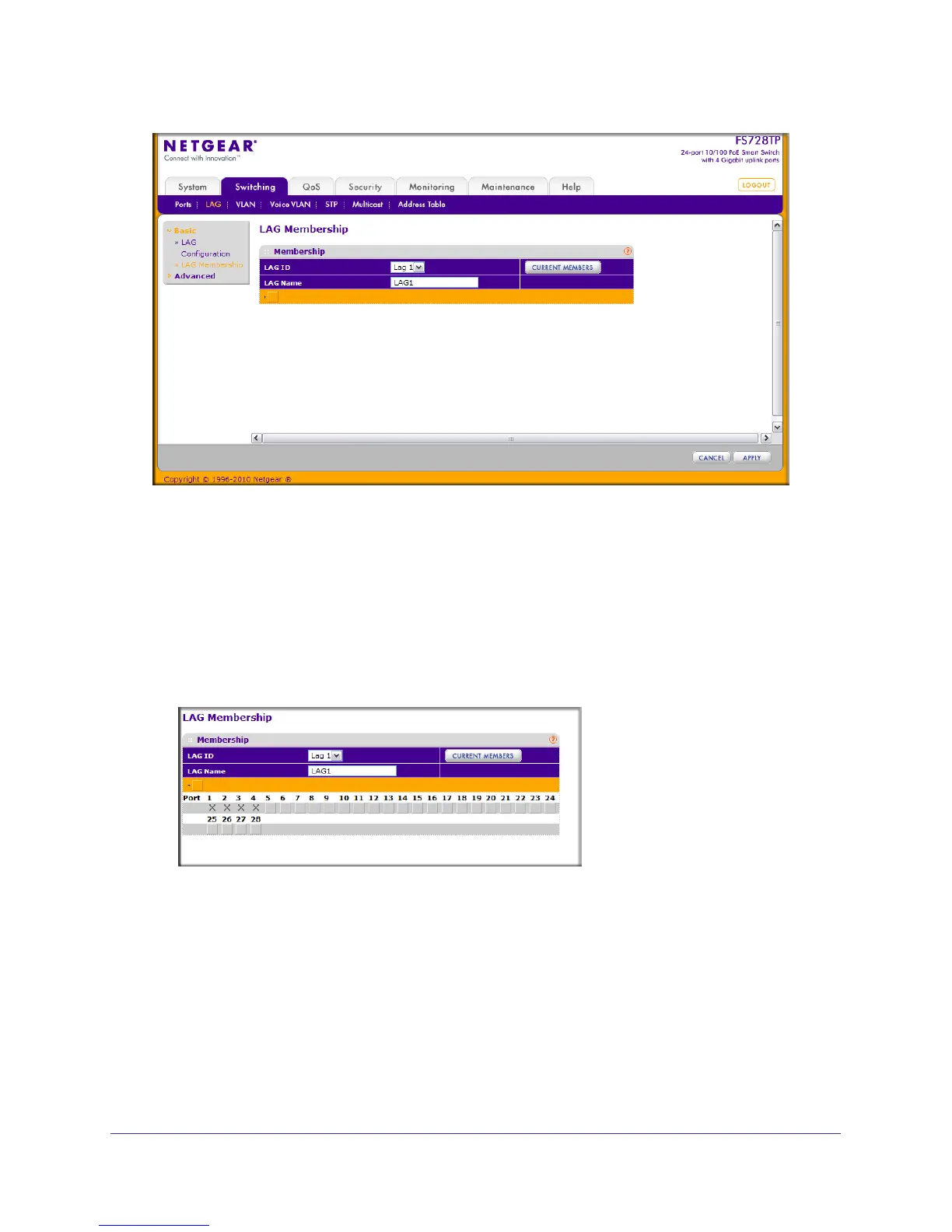

5. Click the box below each port to include in the LAG. The following figure shows an example
of how to configure LAG1 with ports e1–e4 as members.
6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.
7. If you make any changes to this page, click Apply to send the updated configuration to the
switch. Configuration changes take effect immediately.
8. To view the ports that are members of the selected LAG, click Current Members.
