ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
5-20 Virtual Private Networking Using IPsec
1.1 November, 2009

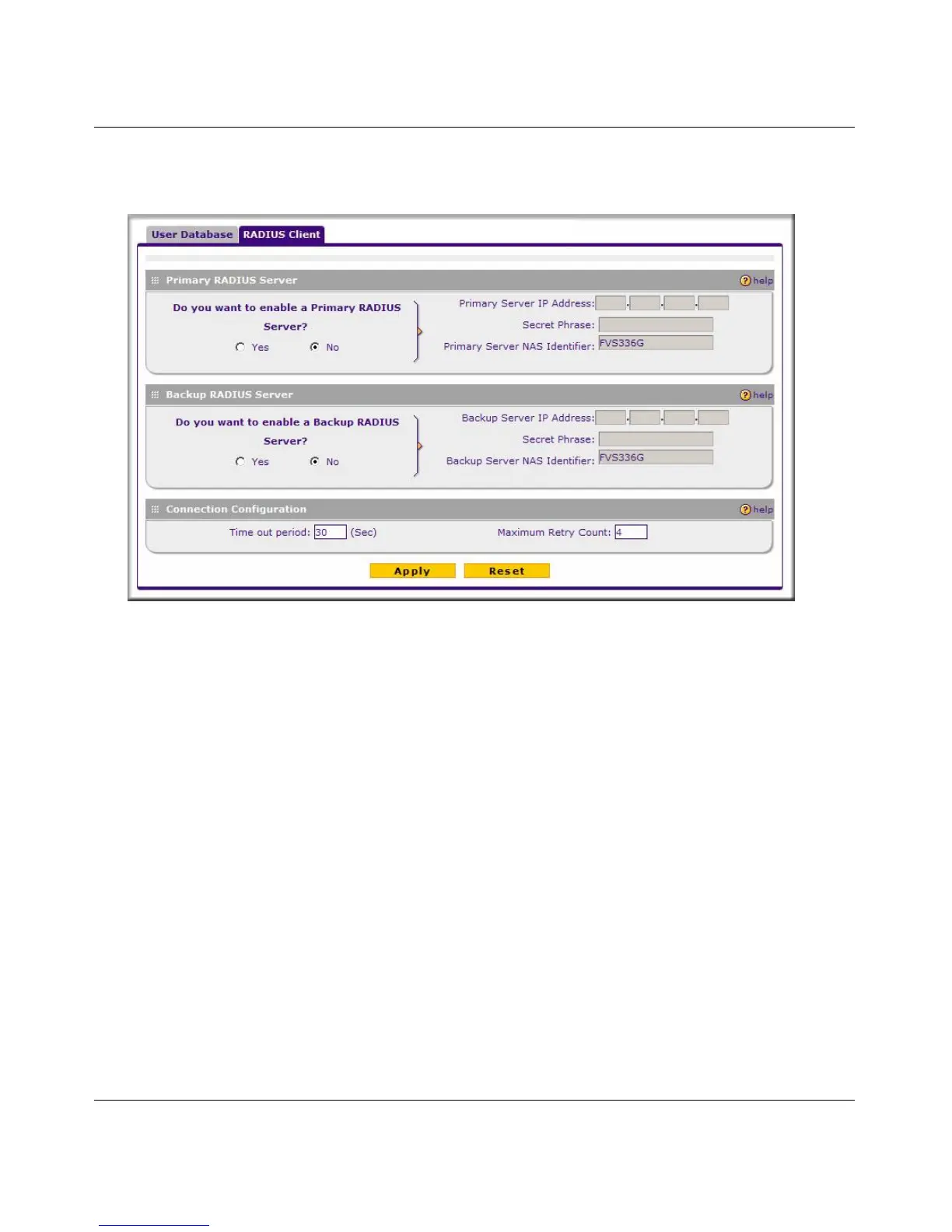

2. Click the RADIUS Client tab. The RADIUS Client screen is displayed.
3. To activate (enable) the Primary RADIUS server, click the Yes radio button. The primary
server options become active.
4. Configure the following entries:
• Primary RADIUS Server IP address. The IP address of the RADIUS server.
• Secret Phrase. Transactions between the client and the RADIUS server are authenticated
using a shared secret phrase, so the same Secret Phrase must be configured on both client
and server.
• Primary Server NAS Identifier (Network Access Server). This Identifier MUST be
present in a RADIUS request. Ensure that NAS Identifier is configured identically on both
client and server.
Figure 5-19
