ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
4-8 Firewall Protection and Content Filtering
1.1 November, 2009

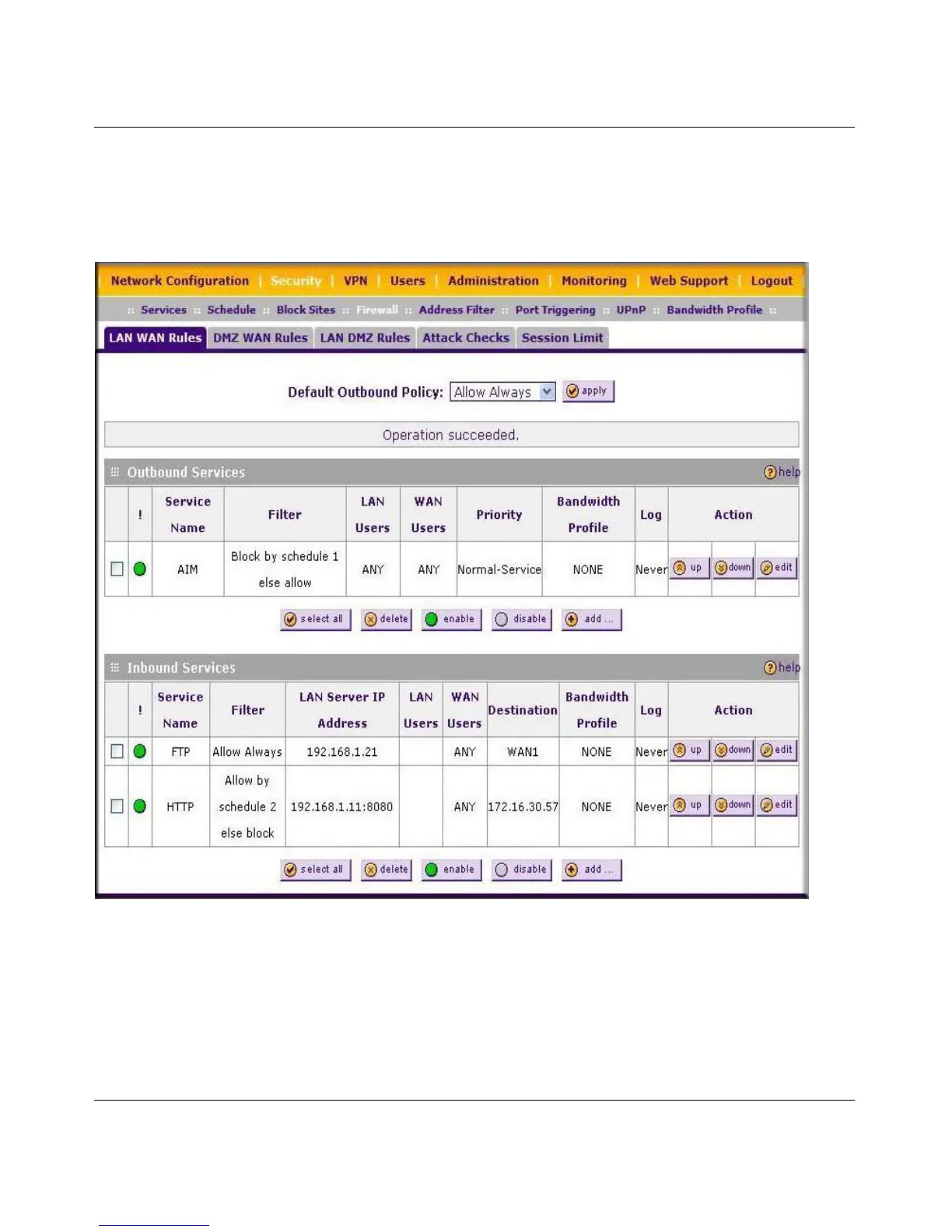

Viewing the Rules
To view the firewall rules: Select Security > Firewall from the main menu. The LAN WAN Rules
tab appears:
Order of Precedence for Rules
As you define new rules, they are added to the tables in the Rules menu as the last item in the list,
as shown in Figure 4-1. For any traffic attempting to pass through the firewall, the packet
information is subjected to the rules in the order shown in the Rules Table, beginning at the top
Figure 4-1
