ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
Firewall Protection and Content Filtering 4-29
1.1 November, 2009
6. In the Incoming (Response) Port Range fields:
a. Enter the Start Port range (1 - 65534).
b. Enter the End Port range (1 - 65534).
7. Click Add. The port triggering rule will be added to the Port Triggering Rules table.
To check the status of the port triggering rules, click the Status option arrow to the right of the tab
on the Port Triggering screen. The following data is displayed:
• Rule – The name of the port triggering rule.
• LAN IP Address – The IP address of the PC currently using this rule.
• Open Ports – The incoming ports associated with this rule. Incoming traffic using these ports
will be sent to the LAN IP address above.
• Time Remaining – The time remaining before this rule is released, and thus available for other
PCs. The timer is reset whenever incoming or outgoing traffic is received.
Setting a Schedule to Block or Allow Specific Traffic
Schedules define the timeframes under which firewall rules may be applied.

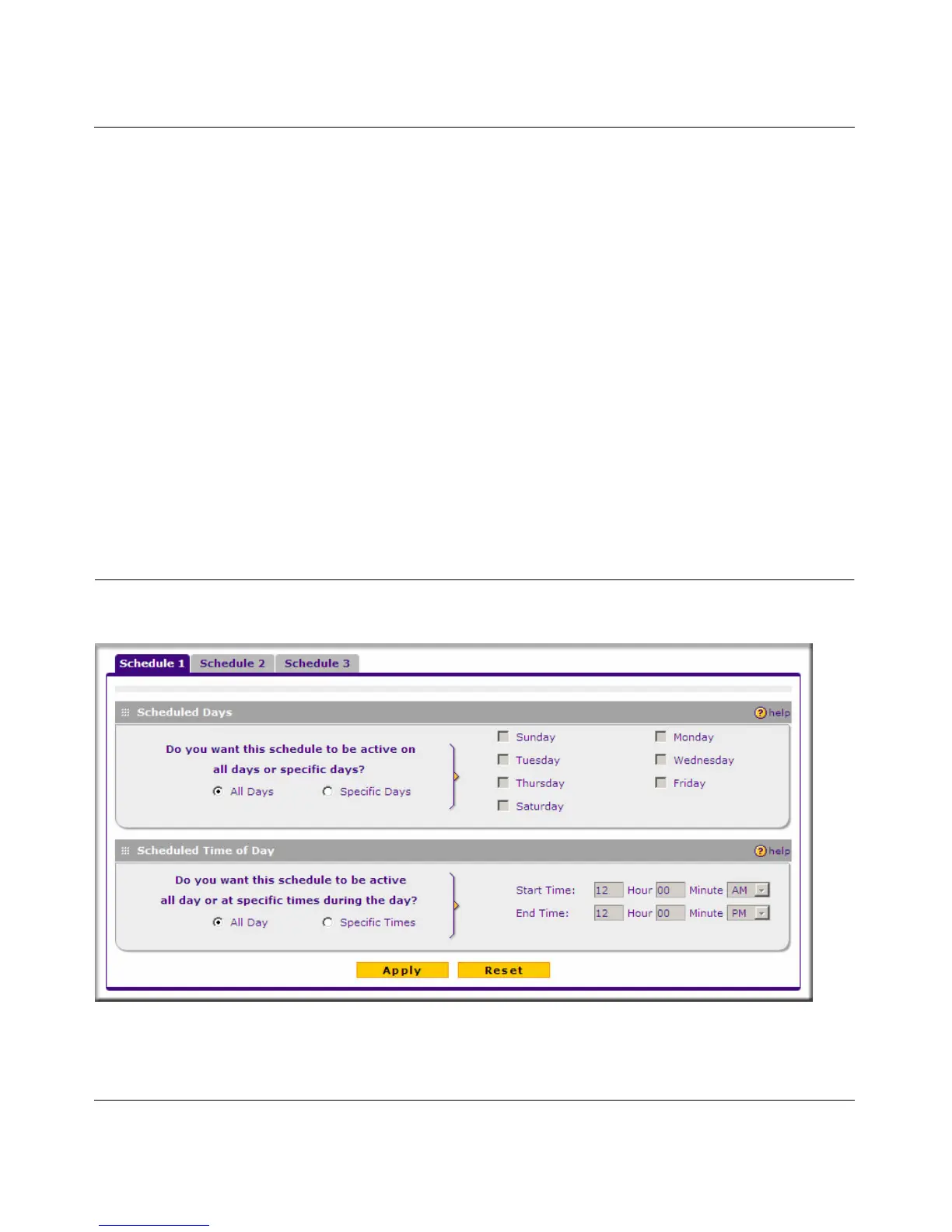

Figure 4-14

NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router Specifications

General

Model	FVS318G
Category	Network Router
VPN Tunnels	25
VPN Throughput	25 Mbps
VPN Protocols	IPSec, PPTP, L2TP
Humidity	90% maximum relative humidity, non-condensing
WAN Ports	1
LAN Ports	8
Weight	1.4 kg (3.1 lb)
Firewall Security	SPI, DoS
Flash Memory	8 MB
Operating Temperature	0° to 40°C
Storage Temperature	-20° to 70°C
