ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
Firewall Protection and Content Filtering 4-13
1.1 November, 2009
Inbound Rules Examples
LAN WAN Inbound Rule: Hosting A Local Public Web Server
If you host a public Web server on your local network, you can define a rule to allow inbound Web
(HTTP) requests from any outside IP address to the IP address of your Web server at any time of
day.

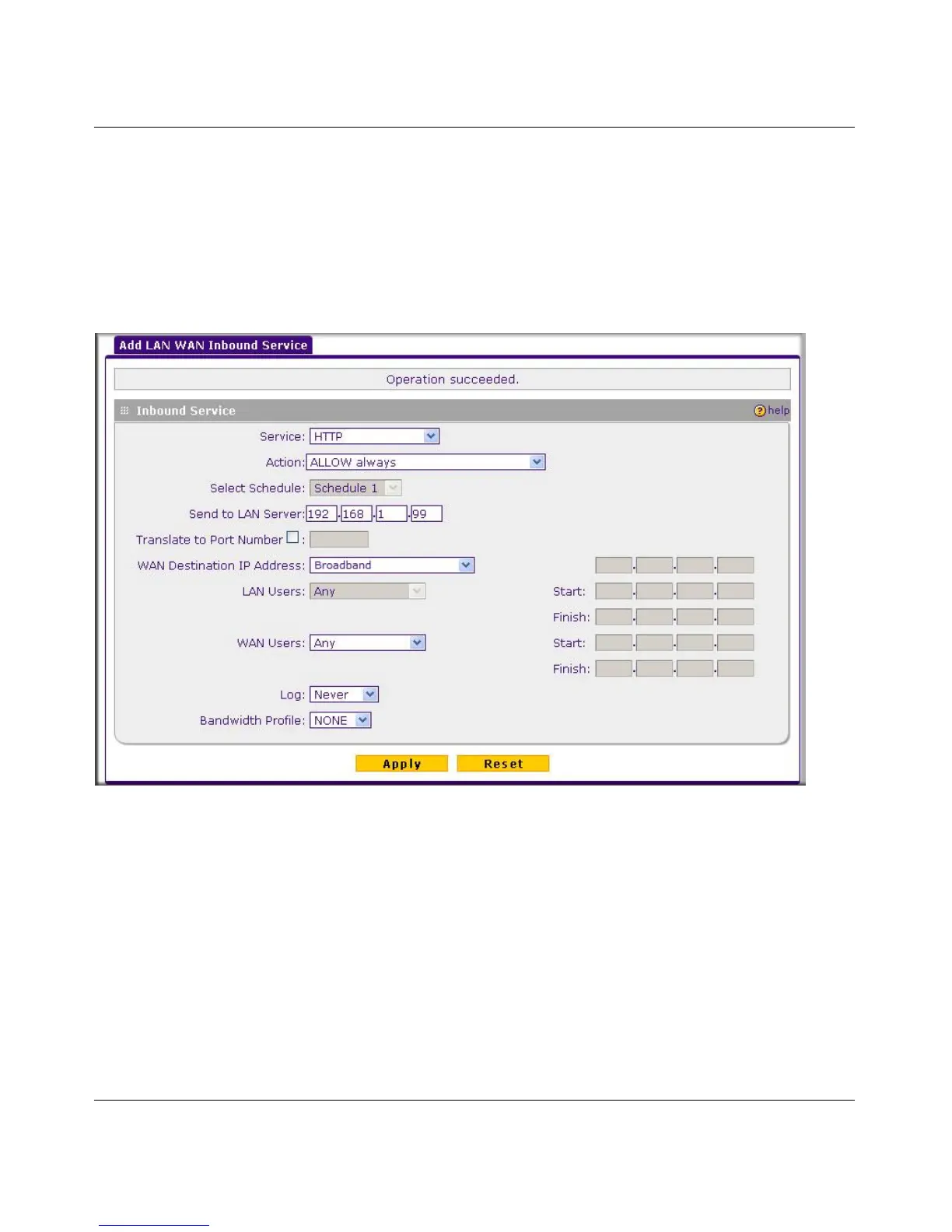

In the example shown in Figure 4-4, unrestricted access is provided from the Internet to the local
Web server at LAN IP address 192.168.1.99.
LAN WAN Inbound Rule: Allowing Videoconference from Restricted Addresses
If you want to allow incoming videoconferencing to be initiated from a restricted range of outside
IP addresses, such as from a branch office, you can create an inbound rule.
In the example shown in Figure 4-5, CU-SeeMe connections are allowed to a local host only from
a specified range of external IP addresses. Connections are blocked during the period specified by
Schedule 1.
Figure 4-4

NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router Specifications

General

Model	FVS318G
Category	Network Router
VPN Tunnels	25
VPN Throughput	25 Mbps
VPN Protocols	IPSec, PPTP, L2TP
Humidity	90% maximum relative humidity, non-condensing
WAN Ports	1
LAN Ports	8
Weight	1.4 kg (3.1 lb)
Firewall Security	SPI, DoS
Flash Memory	8 MB
Operating Temperature	0° to 40°C
Storage Temperature	-20° to 70°C
