ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
7-14 Router and Network Management
1.1 November, 2009
.

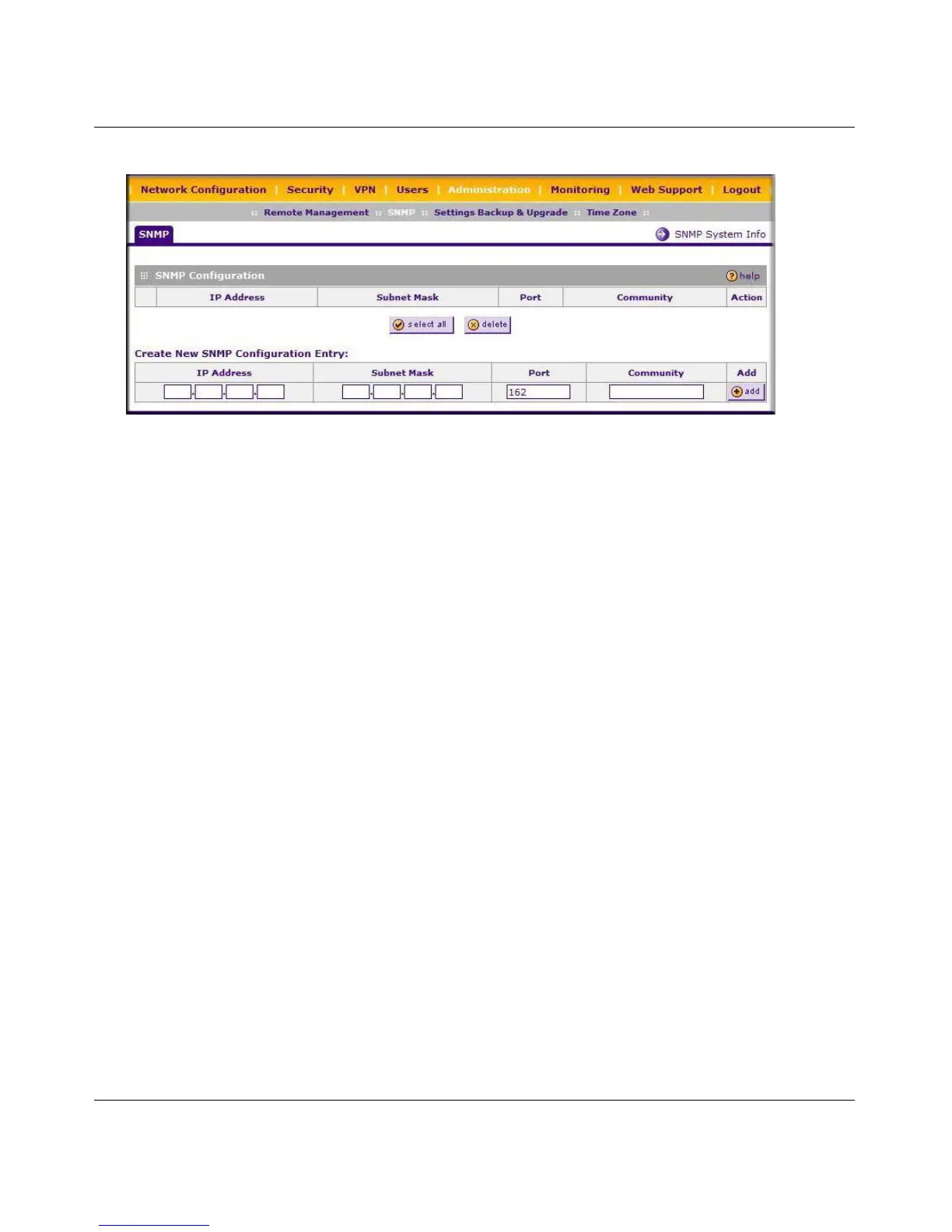

2. Configure the following fields in the Create New SNMP Configuration Entry section:
a. Enter the IP Address of the SNMP manager in the IP Address field and the Subnet Mask
in the Subnet Mask field.
– To allow only the host address to access the VPN firewall router and receive traps,
enter an IP Address of, for example, 192.168.1.101 with a Subnet Mask of
255.255.255.255.
– To allow a subnet access to the VPN firewall router through SNMP, enter an IP
address of, for example,192.168.1.101 with a Subnet Mask of 255.255.255.0. The
traps will still be received on 192.168.1.101, but the entire subnet will have access
through the community string.
– To make the VPN firewall router globally accessible using the community string, but
still receive traps on the host, enter 0.0.0.0 as the Subnet Mask and an IP Address for
where the traps will be received.
b. Enter the trap port number of the configuration in the Port field. The default is 162.
c. Enter the trap community string of the configuration in the Community field.
3. Click Add to create the new configuration. The entry is displayed in the SNMP
Configuration table.
The SNMP System Info option arrow at the top of the tab opens the SNMP SysConfiguration
menu that displays the SNMP System contact information available to the SNMP manager:
Figure 7-4
