ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
2-8 Connecting the FVS318G to the Internet
1.1 November, 2009

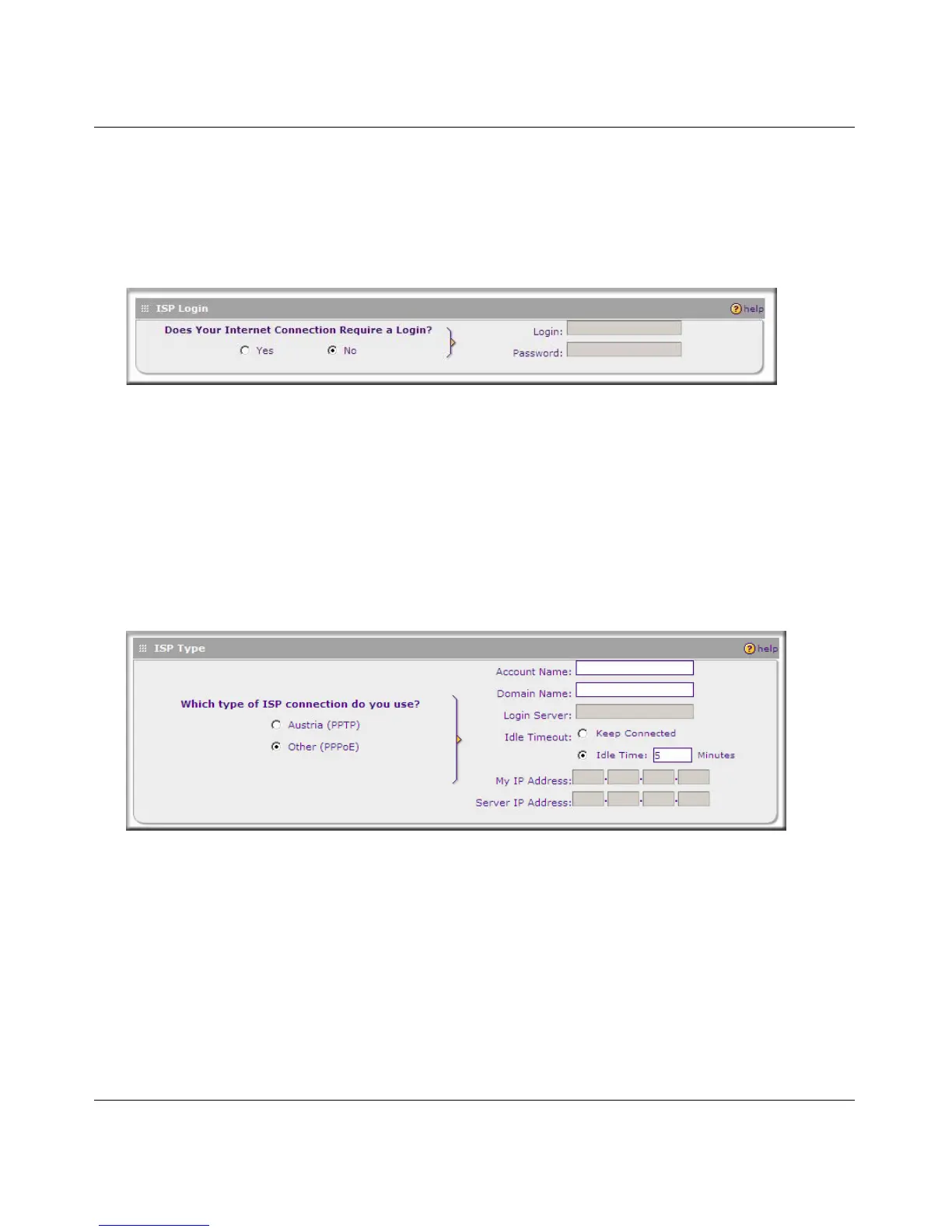

To manually configure your Broadband ISP Settings:
1. Select Network Configuration > WAN Settings > Broadband ISP Settings and enter the
following:
2. In the ISP Login options, choose one of these options:
• If your ISP requires an initial login to establish an Internet connection, click Yes (this is
the default).
• If a login is not required, click No and ignore the Login and Password fields.
3. If you clicked Yes, enter the ISP-provided Login and Password information.
4. In the ISP Type options, select the type of ISP connection you use from the three listed
options. (By default, “Other (PPPoE)” is selected, as shown below.
(If your connection is PPPoE or PPTP, your ISP will require an initial login.)
Figure 2-6
Figure 2-7

NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router Specifications

General

Model	FVS318G
Category	Network Router
VPN Tunnels	25
VPN Throughput	25 Mbps
VPN Protocols	IPSec, PPTP, L2TP
Humidity	90% maximum relative humidity, non-condensing
WAN Ports	1
LAN Ports	8
Weight	1.4 kg (3.1 lb)
Firewall Security	SPI, DoS
Flash Memory	8 MB
Operating Temperature	0° to 40°C
Storage Temperature	-20° to 70°C
