ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
3-12 LAN Configuration
1.1 November, 2009
2. Click Add. The Add Static Route tab is displayed.
3. Enter a route name for this static route in the Route Name field (for identification and
management).
4. Select Active to make this route effective.
5. Select Private if you want to limit access to the LAN only. The static route will not be
advertised in RIP.
6. Enter the Destination IP Address to the host or network to which the route leads.
7. Enter the IP Subnet Mask for this destination. If the destination is a single host, enter
255.255.255.255.
8. Enter the Interface which is the physical network interface (WAN or LAN) through which
this route is accessible.
9. Enter the Gateway IP Address through which the destination host or network can be reached
(must be a firewall on the same LAN segment as the firewall).
10. Enter the Metric priority for this route. If multiple routes to the same destination exit, the
route with the lowest metric is chosen (value must be between 1 and 15).
11. Click Apply to save your settings.
The new static route will be added to the Static Route table.

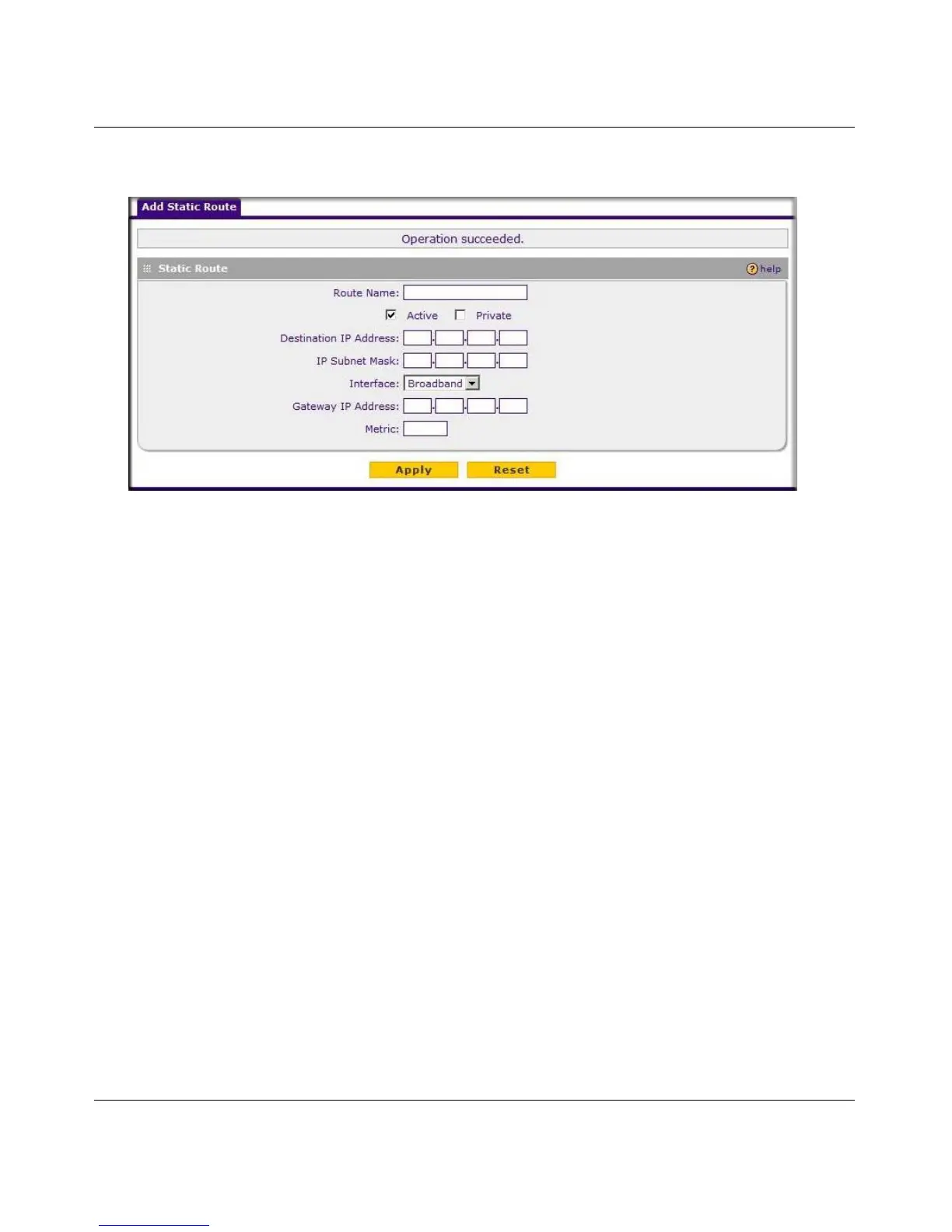

Figure 3-6
