NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router User Manual

ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
Firewall Protection and Content Filtering 4-25
1.1 November, 2009
To enable MAC filtering and add MAC addresses to be blocked:
1. Select Security > Address Filter > Source MAC Filter to display the Source MAC Filter
tab page.
2. Click Yes to enable Source MAC Filtering.
3. Select the action to be taken on outbound traffic from the listed MAC addresses:
– Block this list and permit all other MAC addresses
– Permit this list and block all other MAC addresses
4. Enter a MAC Address in the Add Source MAC Address box and click Add. The MAC
address will appear in the MAC Addresses table. Repeat this process to add additional MAC
addresses.
A valid MAC address is six colon-separated pairs of hexadecimal digits (0 to 9 and a to f). For
example: 01:23:45:ab:cd:ef.
5. Click Add. The MAC address will be added to the MAC Addresses table.
6. Click Apply to save your settings.
To remove an entry from the table, select the MAC address entry and click Delete.

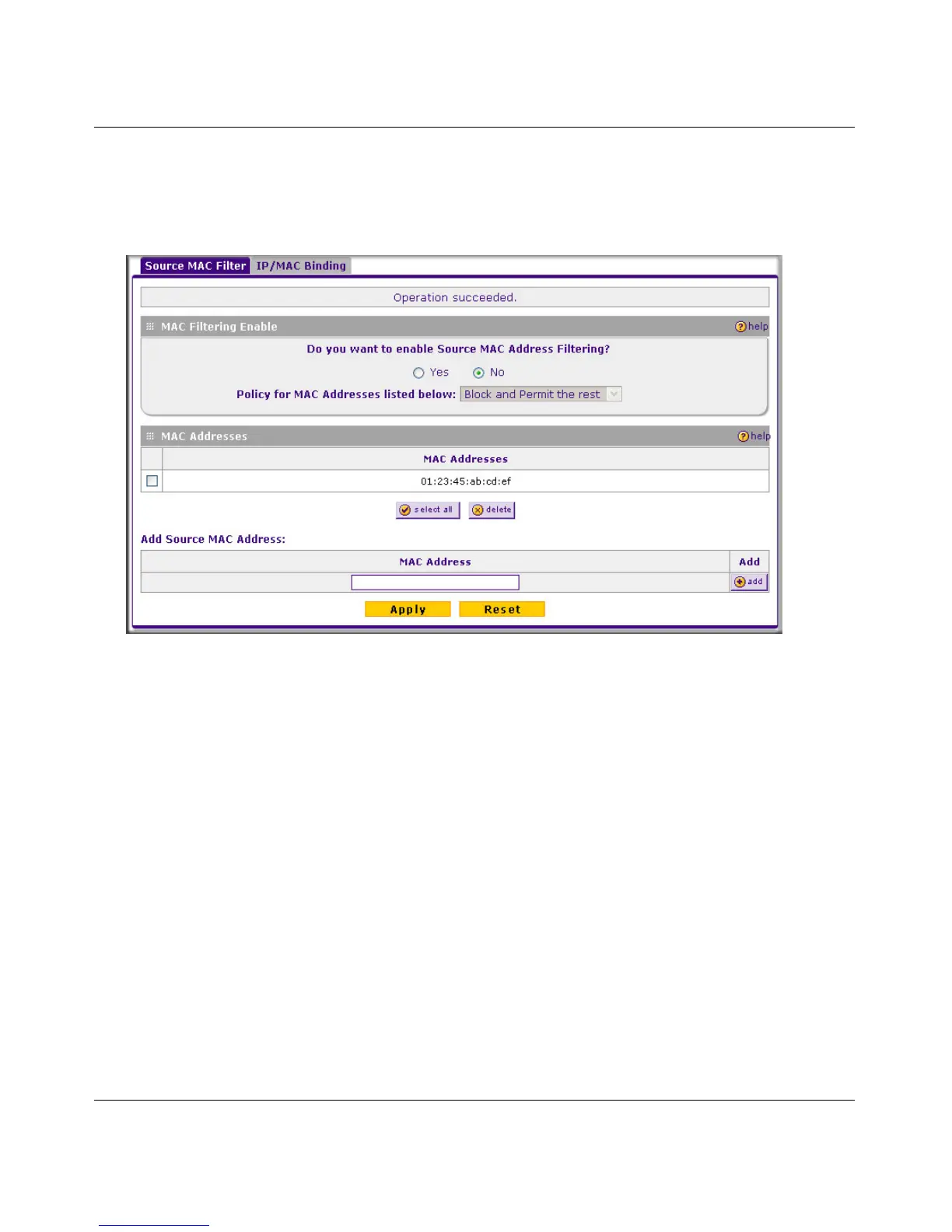

Figure 4-11

NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router Specifications

General

Model	FVS318G
Category	Network Router
VPN Tunnels	25
VPN Throughput	25 Mbps
VPN Protocols	IPSec, PPTP, L2TP
Humidity	90% maximum relative humidity, non-condensing
WAN Ports	1
LAN Ports	8
Weight	1.4 kg (3.1 lb)
Firewall Security	SPI, DoS
Flash Memory	8 MB
Operating Temperature	0° to 40°C
Storage Temperature	-20° to 70°C
