NETGEAR R7000 User Manual

Share a USB Printer
116
Nighthawk AC1900 Smart WiFi Router
 To specify the time-out:

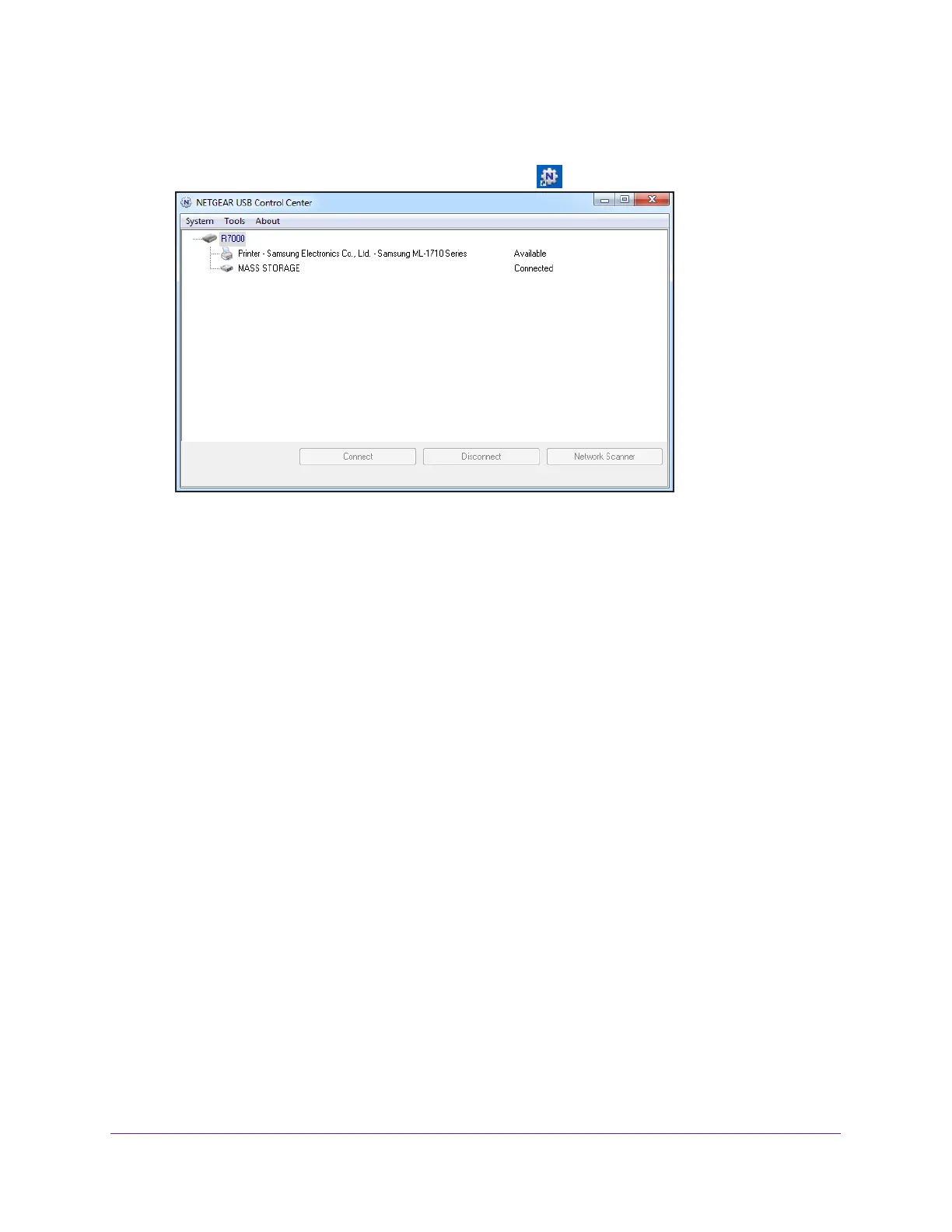

1. Click the NETGEAR USB Control Center icon
.
2. Select Tools > Configuration.
The Control Center - Configuration window displays.
3. In the T
imeout field, type the number of minutes.
The time-out is the number of minutes that a computer holds its connection to the printer
when the connection isn’t being used.
4. Click the OK button.
Your settings are saved.

NETGEAR R7000 Specifications

General

Brand	NETGEAR
Model	R7000
WiFi Technology	802.11ac
USB Ports	1 x USB 3.0, 1 x USB 2.0
Antennas	3 external antennas
Beamforming	Yes
RAM	256 MB
Flash Memory	128 MB
Frequency Band	2.4 GHz / 5 GHz
WiFi Speed	Up to 1900 Mbps
Processor	1 GHz dual-core processor
Ethernet Ports	5 (1 WAN & 4 LAN)
Security	WPA/WPA2
Dimensions	285 x 184.5 x 50 mm (11.22 x 7.26 x 1.97 in)
Weight	750 g
