NETGEAR R7000 User Manual

Hardware Setup
13
Nighthawk AC1900 Smart WiFi Router
Cable Your Router

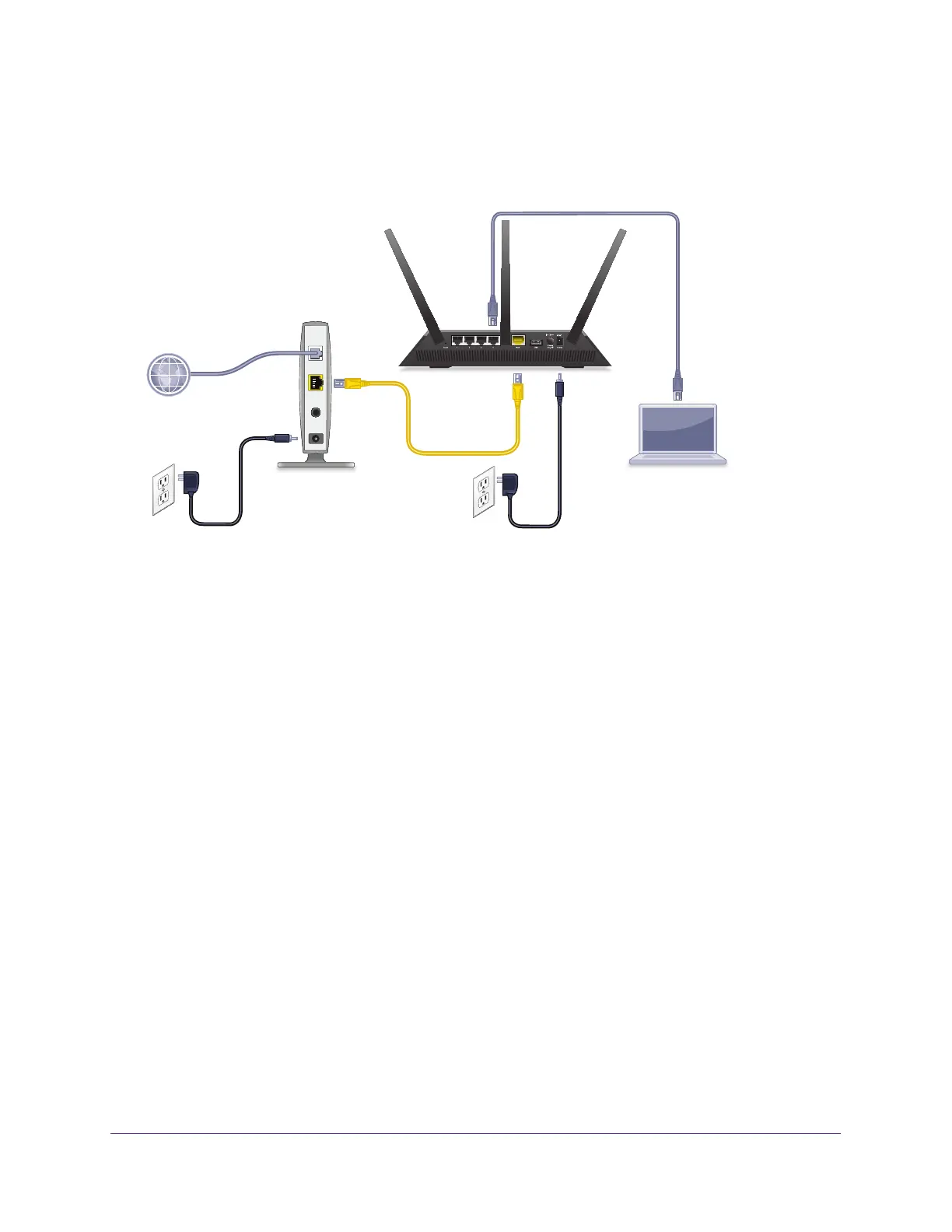

The following image shows how to cable your router:
Figure 4. Router cabling
 To cable your router:
1. Unplug your modem’
s power, leaving the modem connected to the wall jack for your
Internet service.
If your modem has a battery backup, remove the battery.
2. Plug in and turn on your modem.
If your modem has a battery backup, replace the battery.
3. Connect your modem to the Internet port of your router with the yellow Ethernet cable that
came with your router.
4. Connect the power adapter to your router and plug the power adapter into an outlet.
5. Press the Power On/Off button on the rear panel of the router.

NETGEAR R7000 Specifications

General

Brand	NETGEAR
Model	R7000
WiFi Technology	802.11ac
USB Ports	1 x USB 3.0, 1 x USB 2.0
Antennas	3 external antennas
Beamforming	Yes
RAM	256 MB
Flash Memory	128 MB
Frequency Band	2.4 GHz / 5 GHz
WiFi Speed	Up to 1900 Mbps
Processor	1 GHz dual-core processor
Ethernet Ports	5 (1 WAN & 4 LAN)
Security	WPA/WPA2
Dimensions	285 x 184.5 x 50 mm (11.22 x 7.26 x 1.97 in)
Weight	750 g
