Front Panel
The following figure shows the front panel of the ReadyNAS 2120 and 2120 v2 storage
systems.

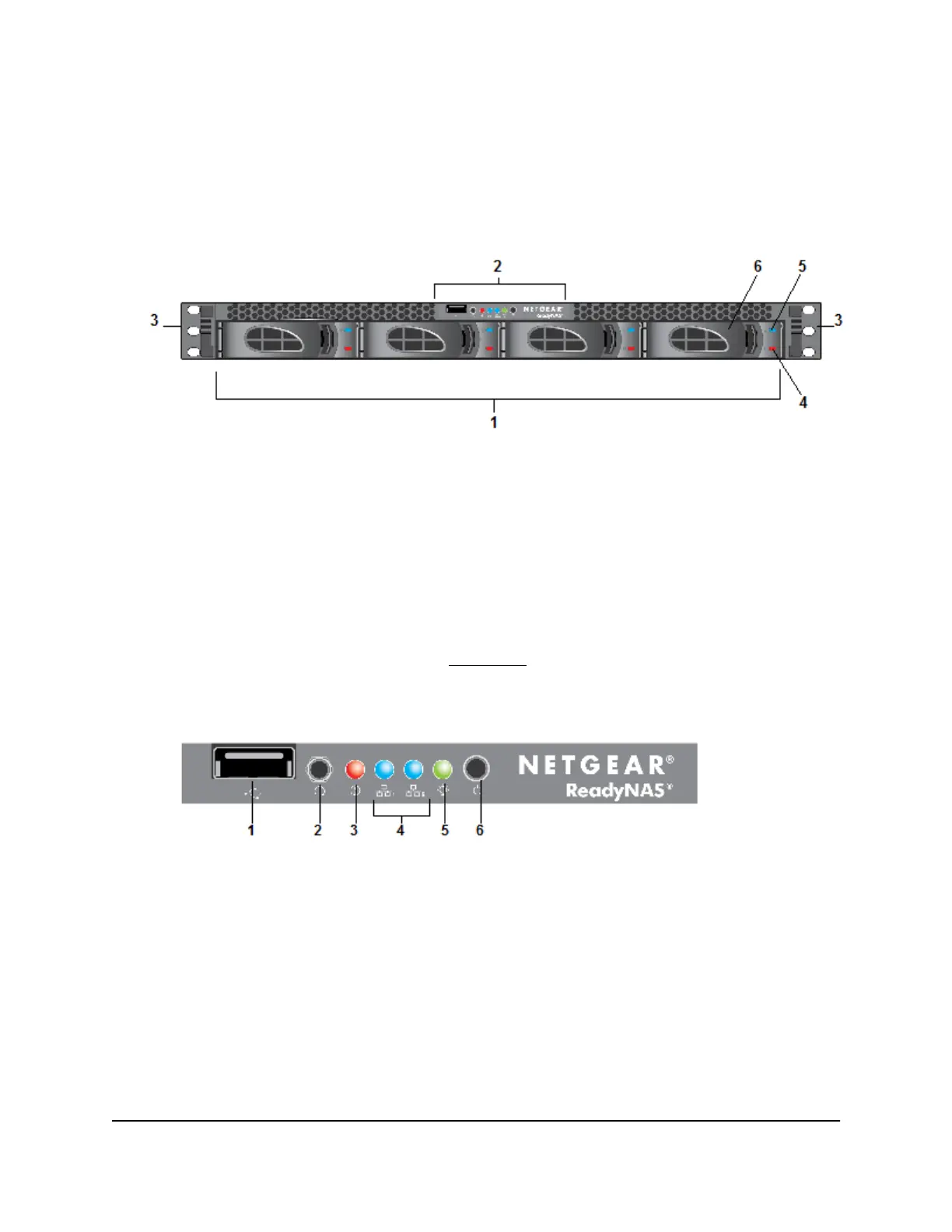

Figure 1. Front panel
1. Drive bays
2. Control panel
3. Mounting bracket
4. Fault LED
5. Disk Activity LED
6.
Disk tray (For more information, see Disk Tray on page 79.)
The following figure shows the control panel in more detail.
Figure 2. Control panel
1. USB 2.0 port
2. Reset button
3. Error LED
4. LAN 1 and LAN 2 LEDs
5. Power LED
6. Power button
