Disk Tray
The following figure shows the features of the disk tray used on all ReadyNAS storage
systems except the RR4360 storage system.

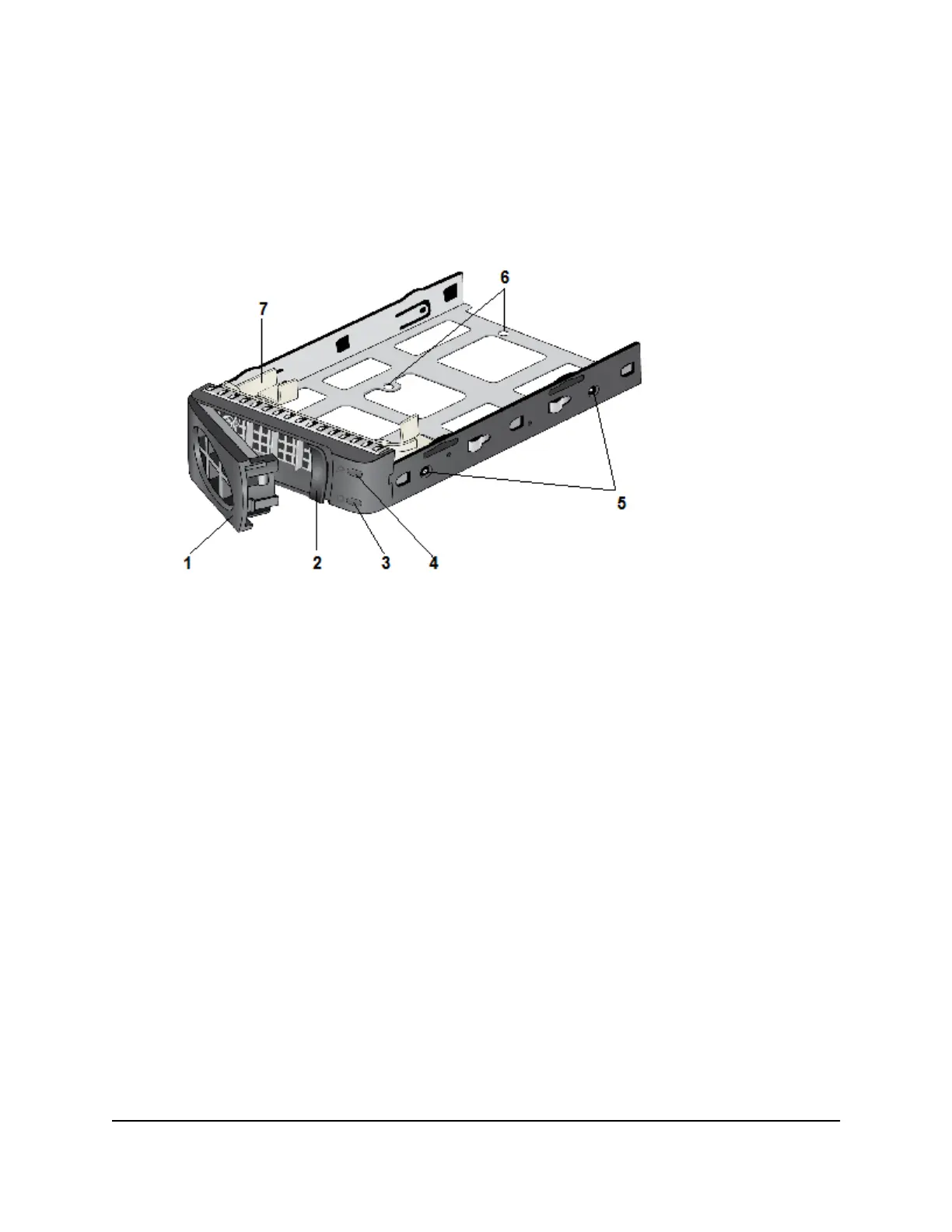

Figure 30. Disk tray
1. Disk tray handle
2. Disk tray release latch
3. Fault LED
4. Disk Activity LED
5. Disk screw holes (for 3.5-inch disk)
6. Disk screw holes (for 2.5-inch disk)
7. Removable plastic air blocker
IMPORTANT: To maintain adequate airflow, follow these precautions concerning disk
trays:
•
Make sure that all disk trays remain in the drive bays, even if no disk is installed in
the tray.
•
Install the plastic air blocker in empty disk trays.
RR4360 storage systems use a different, tool-less tray.
