Front Panel

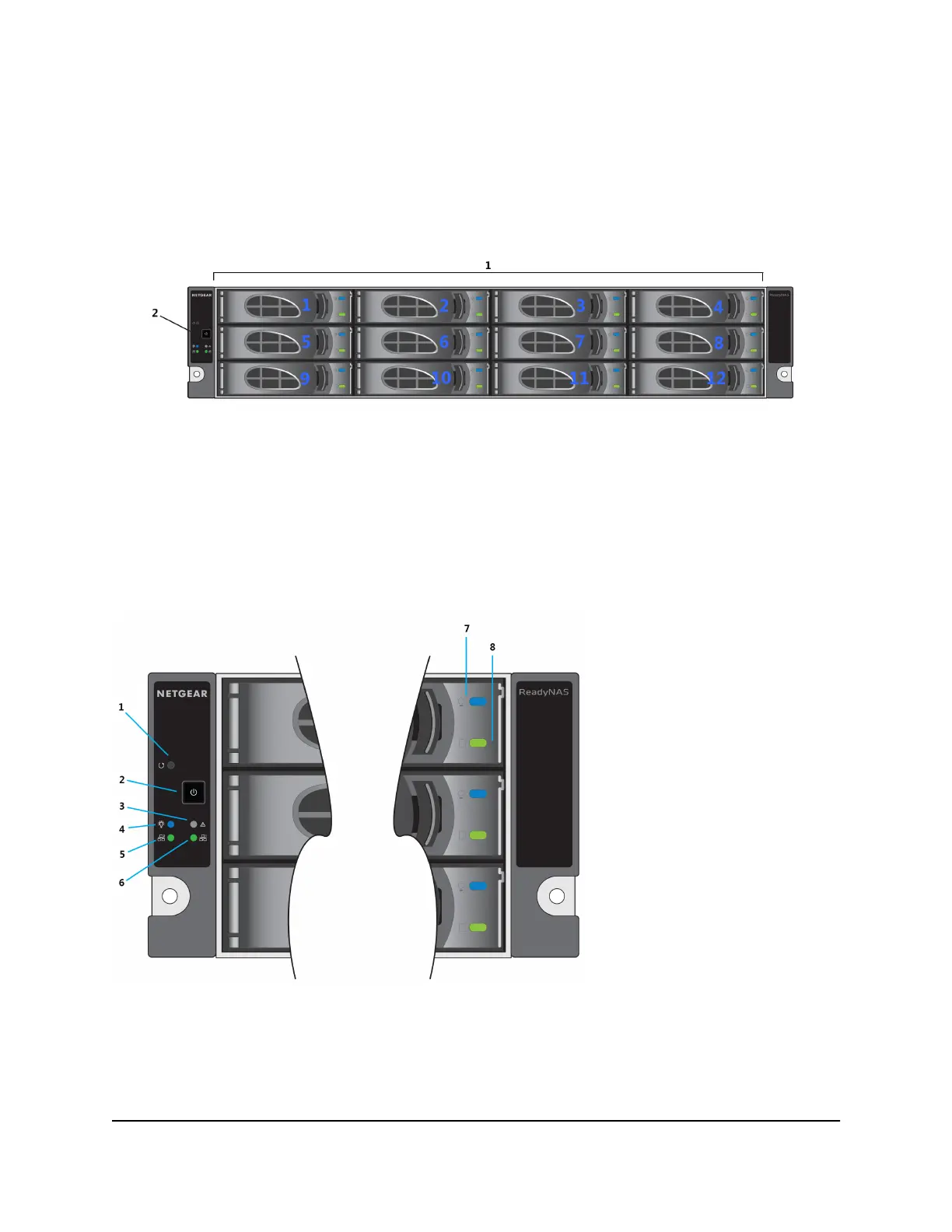

The following figure shows the front panel of the ReadNAS 3312, 3312 v2, 4312, and
4312 v2 storage systems.
Figure 21. Front panel
1. Drive bays with disk status LEDs. The number next to each drive bay indicates the
number of the disk drive in the system.
2. Control panel
The following figure shows the control panel in more detail.
Figure 22. Control panel
1. Reset button
2. Power button
