Access the Inside of the Storage System
You must access the inside of the system to replace a fan or on-board battery.
WARNING: Ensure that the chassis cover is in place when the system is operating to
allow proper cooling. If you do not strictly follow this practice, out-of-warranty damage
to the system can occur.
Access the Inside of the Storage System on a ReadyNAS
2120, 3130 or 3138
To access the inside of a ReadyNAS 2120, 3130, or 3138 storage system:
1.
If your system is mounted in a rack, grasp the two handles on either side and pull
the system straight out until it locks.
The system is locked when you hear a click sound.
2.

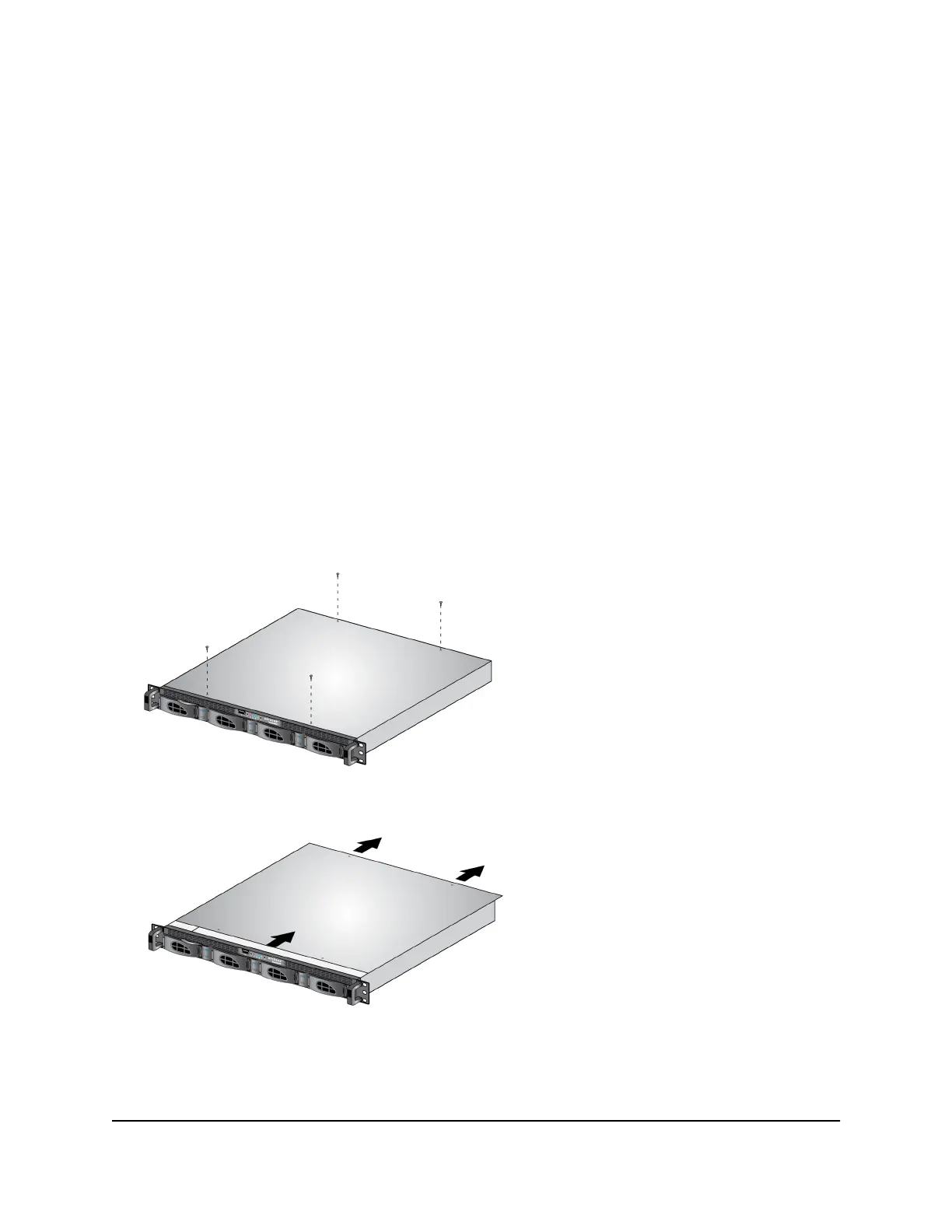

Remove the four screws holding the top cover in place.
3. Slide the top cover back.
Hardware Manual98Maintenance
