Front Panel

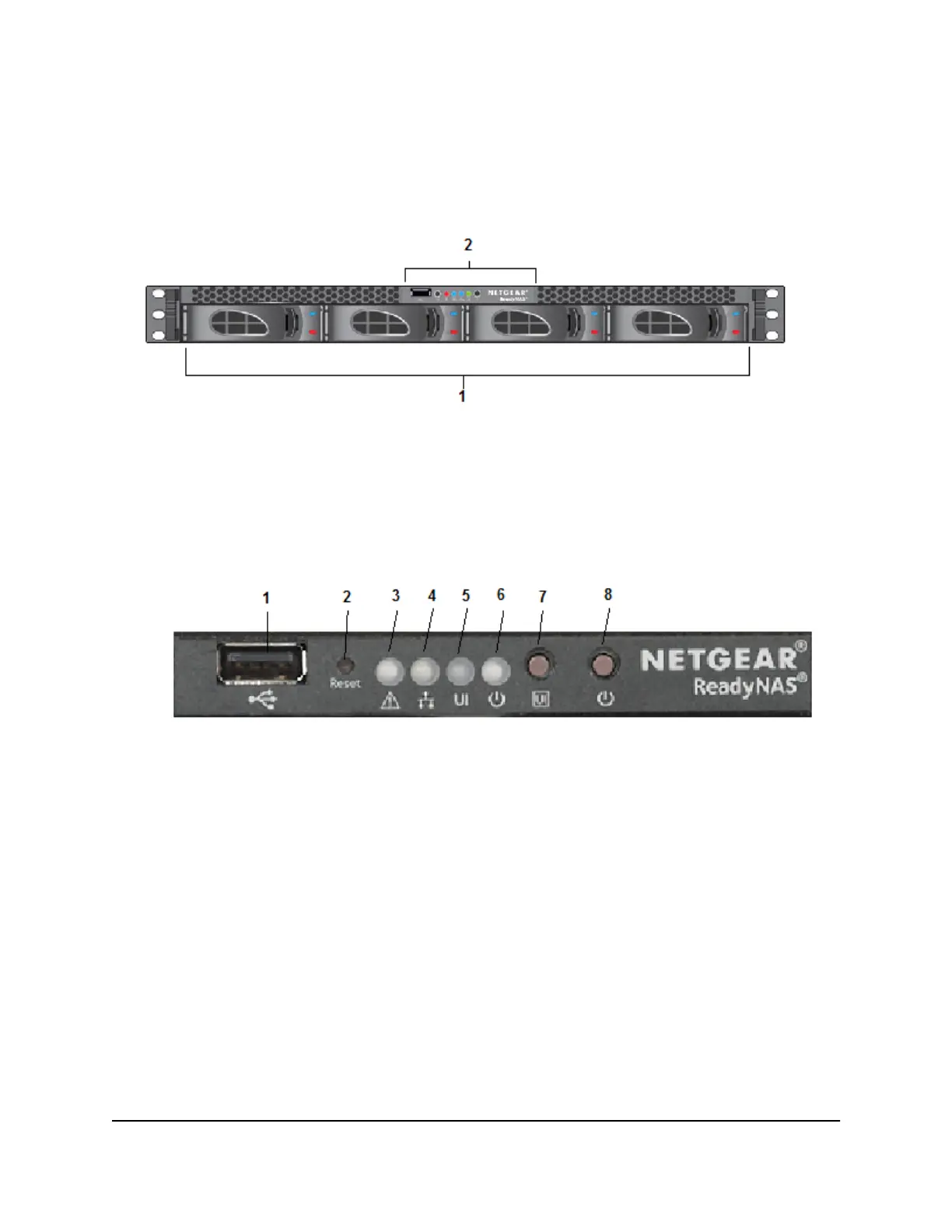

The following figure shows the front panel of the ReadyNAS 3138.
Figure 12. Front panel
1. Drive bays with disk status LEDs
2. Control panel
The following figure shows the control panel in more detail.
Figure 13. Control panel
1. USB 2.0 port
2. Reset button
3. Health LED
4. LAN LED
5. Unit identifier (UID) LED
6. Power LED
7. Unit identifier (UID) button
8. Power button
Each drive bay features a latch that releases the pop-out tray handle, as shown in the
following figure.
Hardware Manual39ReadyNAS 3138
