Front Panel

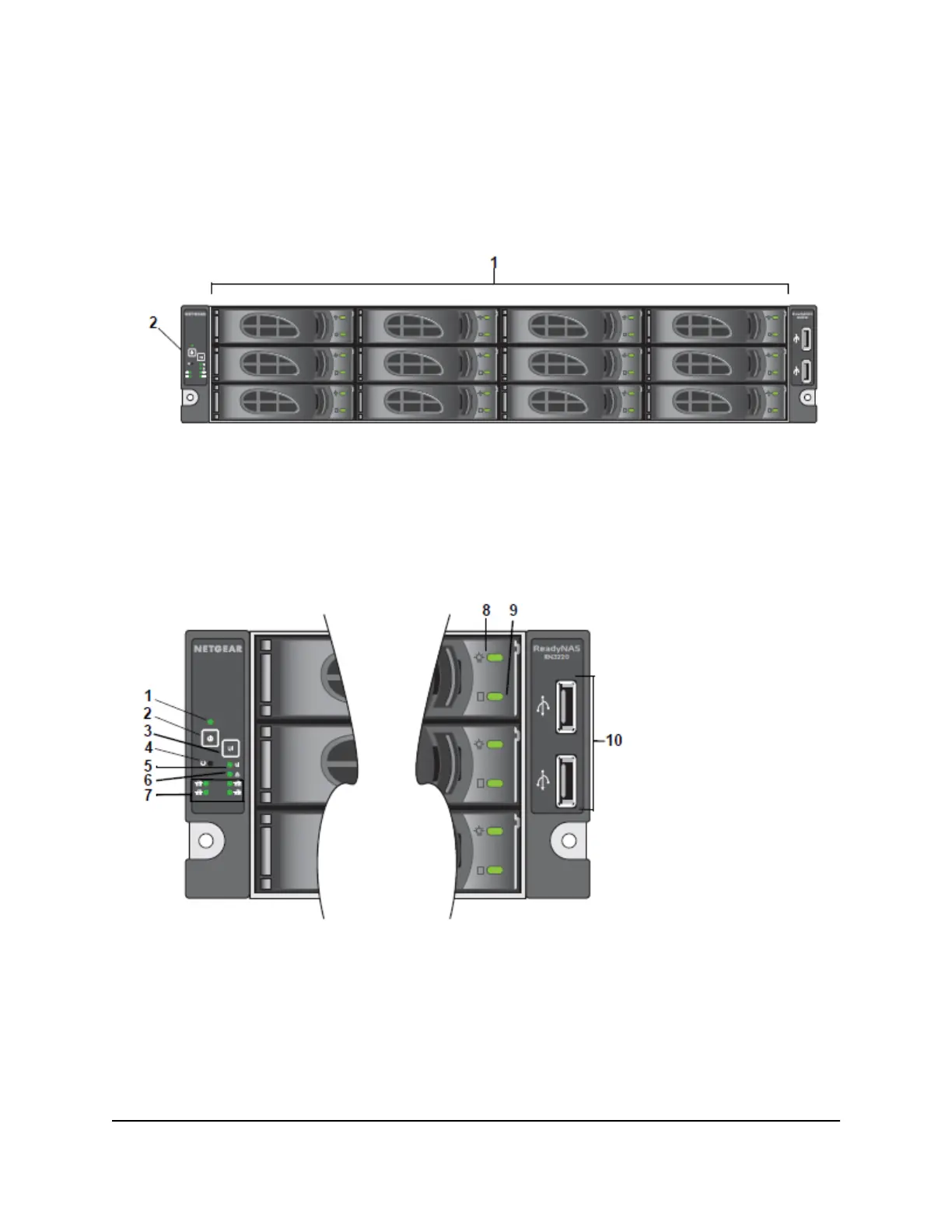

The following figure shows the front panel of the ReadyNAS 3220 and 4220 storage
systems.
Figure 16. Front panel
1. Drive bays with disk status LEDs
2. Control panel
The following figure shows the control panel in more detail.
Figure 17. Control panel
1. Power LED
2. Power button
3. Unit Identifier (UID) button
4. Reset button
Hardware Manual48ReadyNAS 3220 and 4220
ReadyNAS OS 6
