4.

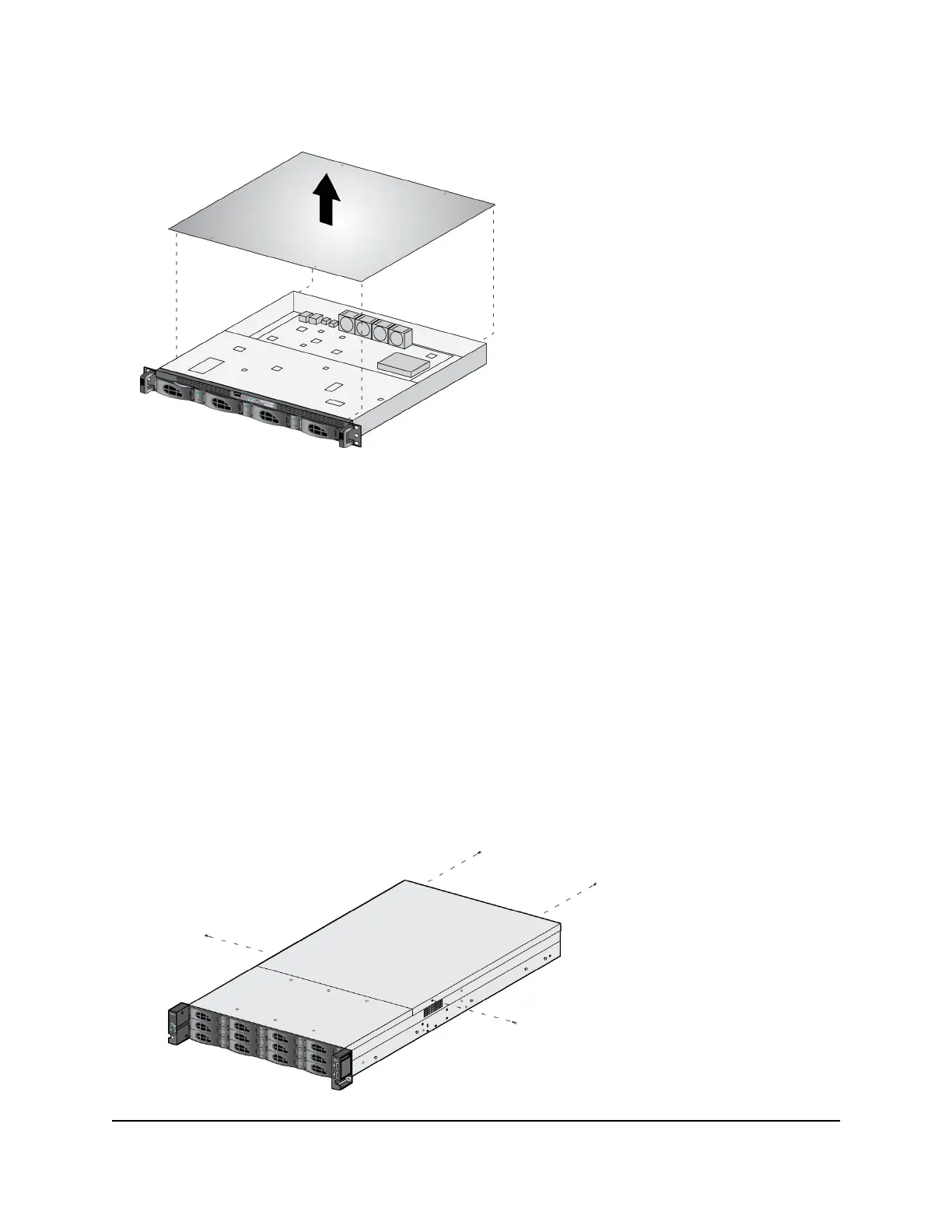

Lift the top cover from the chassis.
You can now access the inside of the system.
Access the Inside of the Storage System on a ReadyNAS
3220, 3312, 3312 v2, 4220, 4312, 4312 v2, or 4360
To access the inside of a ReadyNAS 3220, 3312, 3312 v2, 4220, 4312, 4312 v2, or 4360
storage system:
1.
If your system is mounted in a rack, grasp the two handles on either side and pull
the system straight out until it locks.
The system is locked when you hear a click sound.
2. Open the top cover.
How you release the top cover depends on the model:
•
On a ReadyNAS 3220 or 4220 system, remove the four screws holding the top
cover in place.
Hardware Manual99Maintenance
ReadyNAS OS 6
