Rear Panel
The following figure shows the rear panel of the ReadyNAS 2120 and the 2120 v2 storage
systems.

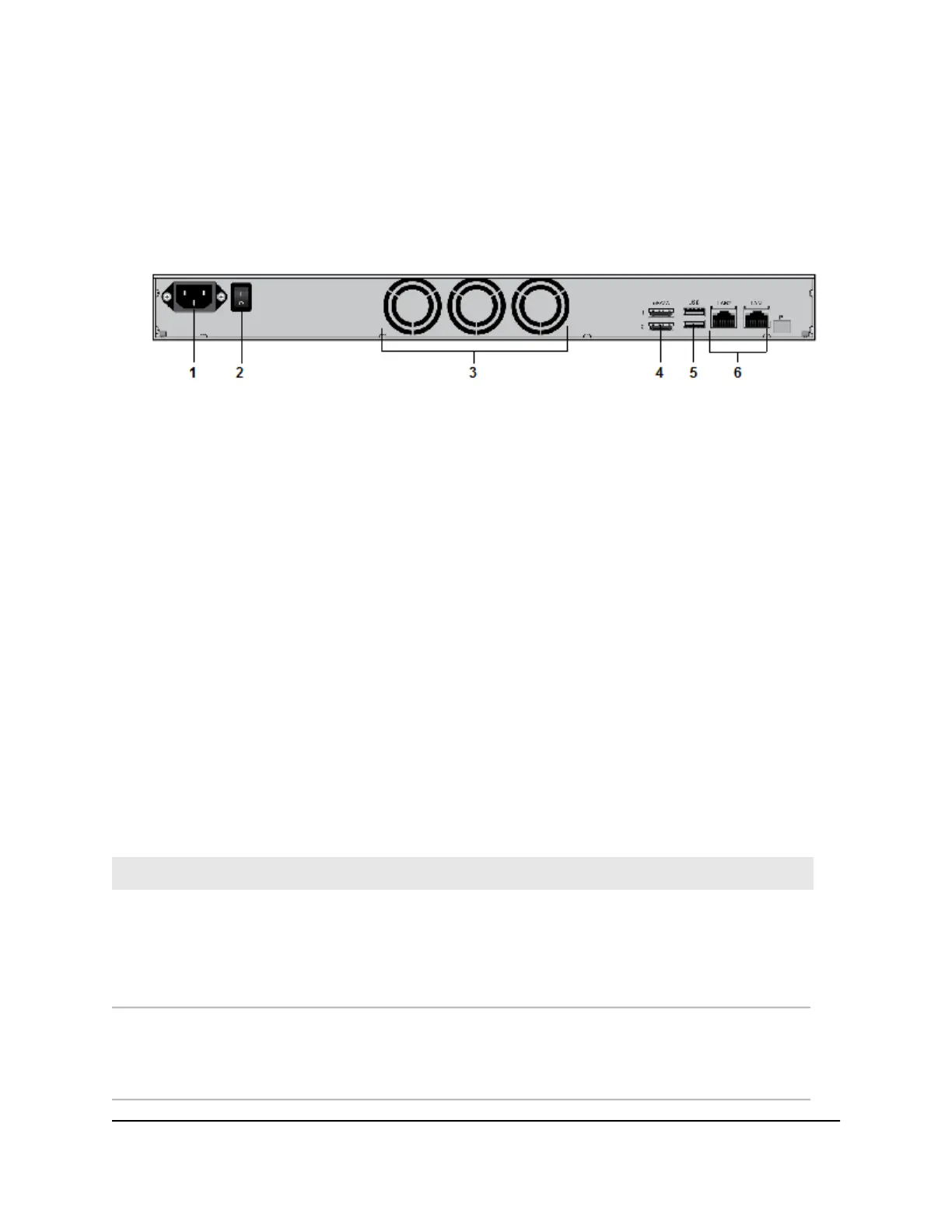

Figure 3. Rear panel
1. Power cable socket
2. Power switch
3. System exhaust fans
4. eSATA ports
5. USB 3.0 ports
6. LAN ports with LED status indicators
Status Information
You can obtain information about the status of your ReadyNAS 2120 or 2120 v2 storage
system by reviewing the LEDs listed in the following table.
Table 1. Status information
DescriptionIndicator
The Disk Activity LEDs indicate these states:
•
Solid blue. A disk is present.
•
Blinking. The disk is active.
•
Off. No disk is present.
Disk Activity LED (disk tray,
top)
The Fault LEDs indicate these states:
•
Solid red. The disk was removed, failed, or is resynchronizing.
•
Off. No disk is active.
Fault LED (disk tray,
bottom)
Hardware Manual14ReadyNAS 2120 and 2120 v2
ReadyNAS OS 6
