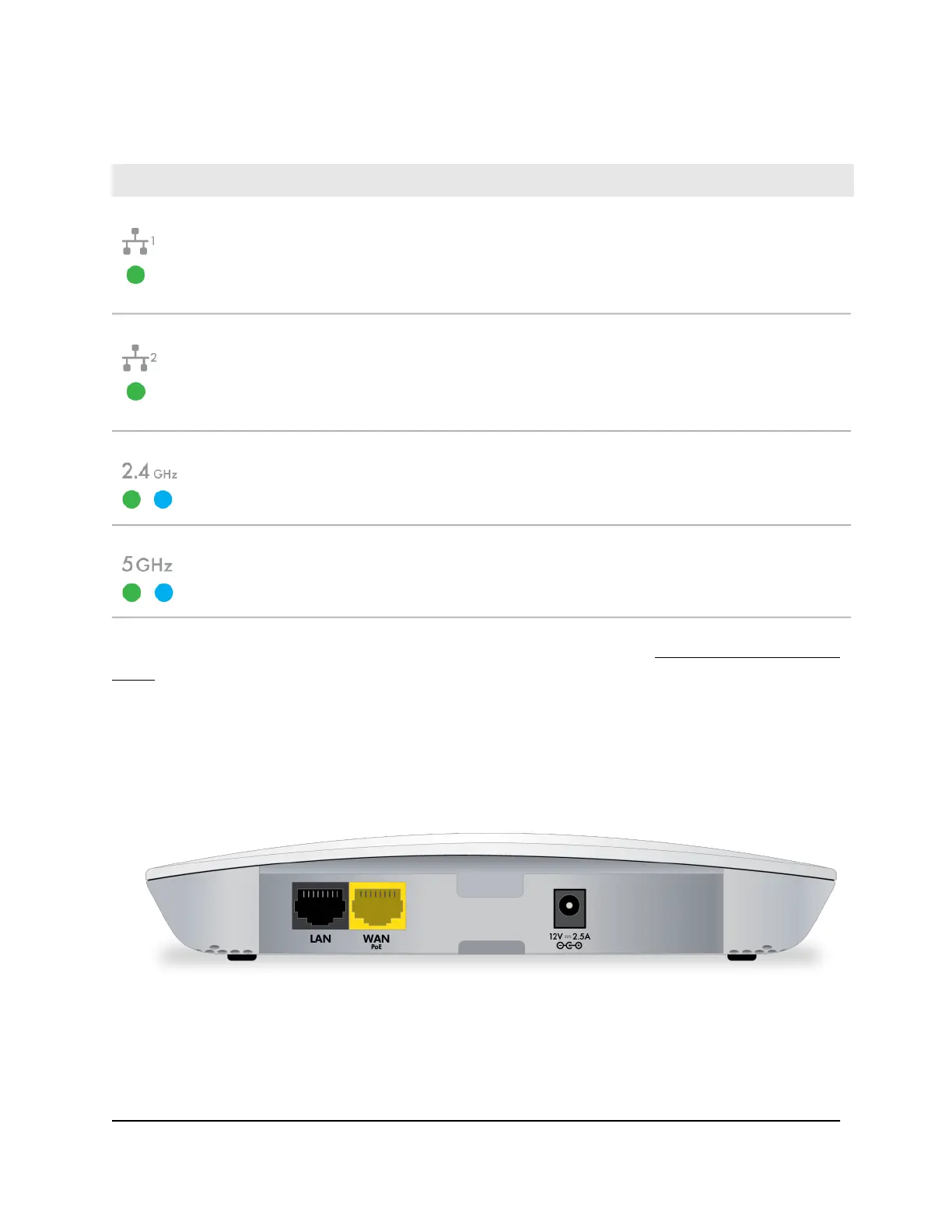

Table 1. LED descriptions (Continued)
DescriptionLED
Off. Either no powered-on Ethernet device is connected to the WAN PoE port, or, if a
powered-on Ethernet device is connected, no Ethernet link is detected.
Solid amber. A 10 or 100 Mbps Ethernet link is detected on the WAN PoE port.
Blinking amber. 10 or 100 Mbps traffic activity is detected on the WAN PoE port.
Solid green. A 1000 Mbps Ethernet link is detected on the WAN PoE port.
Blinking green. 1000 Mbps traffic activity is detected on the WAN PoE port.
WAN PoE LED
Off. Either no powered-on Ethernet device is connected to the LAN port, or, if a powered-on
Ethernet device is connected, no Ethernet link is detected.
Solid amber. A 10 or 100 Mbps Ethernet link is detected on the LAN port.
Blinking amber. 10 or 100 Mbps traffic activity is detected on the LAN port.
Solid green. A 1000 Mbps Ethernet link is detected on the LAN port.
Blinking green. 1000 Mbps traffic activity is detected on the LAN port.
LAN LED
Off. The 2.4 GHz WiFi radio is off.
Solid green. The 2.4 GHz WiFi radio is on.
Solid blue. One or more WLAN clients are connected to the 2.4 GHz WiFi radio.
Blinking blue. Traffic is detected on the 2.4 GHz WiFi radio.
2.4G WLAN LED
Off. The 5 GHz WiFi radio is off.
Solid green. The 5 GHz WiFi radio is on.
Solid blue. One or more WLAN clients are connected to the 5 GHz WiFi radio.
Blinking blue. Traffic is detected on the 5 GHz WiFi radio.
5G WLAN LED
Note: For information about troubleshooting with the LEDs, see Troubleshoot with the
LEDs on page 218.
Back panel
The back panel of the access point provides two ports and a DC power connector.
Figure 2. Back panel of the access point
User Manual15Hardware Overview of the
Access Point
Insight Managed Smart Cloud Wireless Access Point WAC510 User Manual
