HX4E/MX8A Series Voice Gateway User Manual
New Rock Technologies, Inc. 13
Table 1-6 Configuration Combination of MX8A
Models
Number of FXS Ports
Number of FXO Ports
MX8A-4S/4
4
4
MX8A-6S/2
6
2
MX8A-8S
8
0
MX8A-8FXO
0
8
Table 1-7 Voice Interface Cards Supported by the MX8A
Voice Interface Card Types
Number of FXS Ports
Number of FXO Ports
401A-4FXS
4
0
401A-4FXO
0
4
401A-2FXS/2FXO
2
2

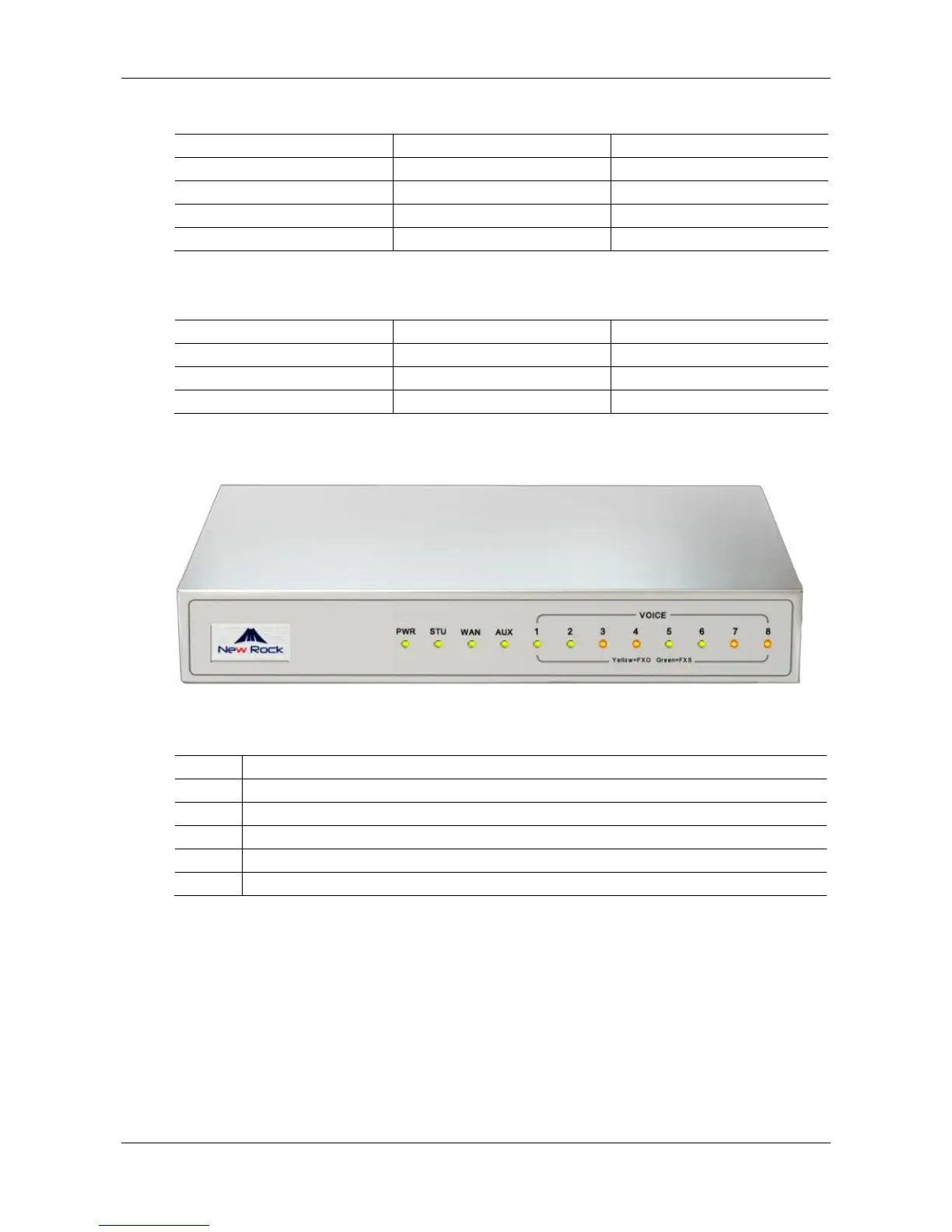

Figure 1-3 MX8A Front Panel
Table 1-8 Description of MX8A Front Panel
No.
Description
PWR
Power indicator
STU
Status indicator
WAN
Indicator of WAN interface
AUX
Indicator of AUX interface
VOICE
Indicators of FXS or FXO port
