NI GPIB Series User Manual

HOME
TitleShort-Hidden -58 © National Instruments Corporation
Configure and Install Your NEC-GPIB/TNT
Next
Step
Previous
Step
58

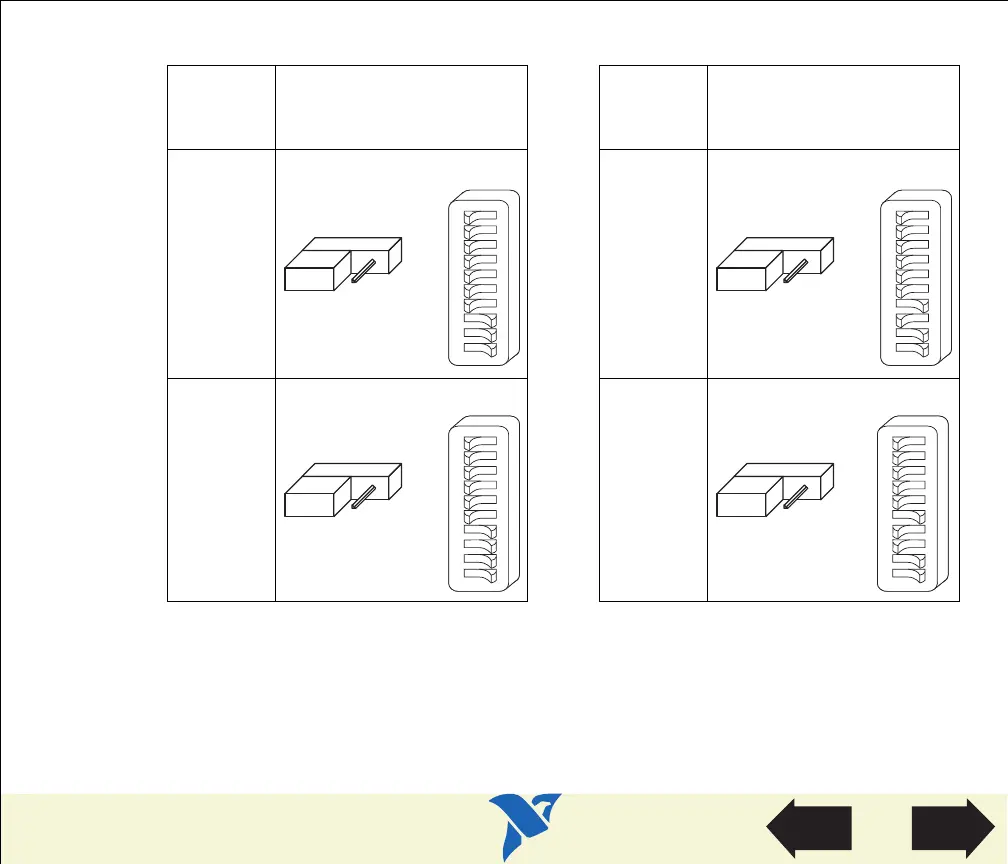

Table 12. Possible Base I/O Address Switch Settings for NEC-GPIB/TNT
Base I/O
Address
(hex)
Switch Settings
Base I/O
Address
(hex)
Switch Settings
1D0 2D0
3D0 4D0
1
OFF
0
ON
OFF
12345678910
W2
16 bit
12 bit
1
OFF
0
ON
OFF
12345678910
W2
16 bit
12 bit
1
OFF
0
ON
OFF
12345678910
W2
16 bit
12 bit
1
OFF
0
ON
OFF
12345678910
W2
16 bit
12 bit
View Parts
Locator
Diagram

NI GPIB Series Specifications

General

Operating Systems Supported	Windows, Linux, macOS
Driver Software	NI-488.2
Bus Interface	IEEE 488
Data Transfer Rate	Up to 8 MB/s
Compatibility	IEEE 488.1, IEEE 488.2
Connector Type	24-pin IEEE 488 connector
Maximum Cable Length	20 m total system length
Number of Devices Supported	Up to 14 devices per bus
