13

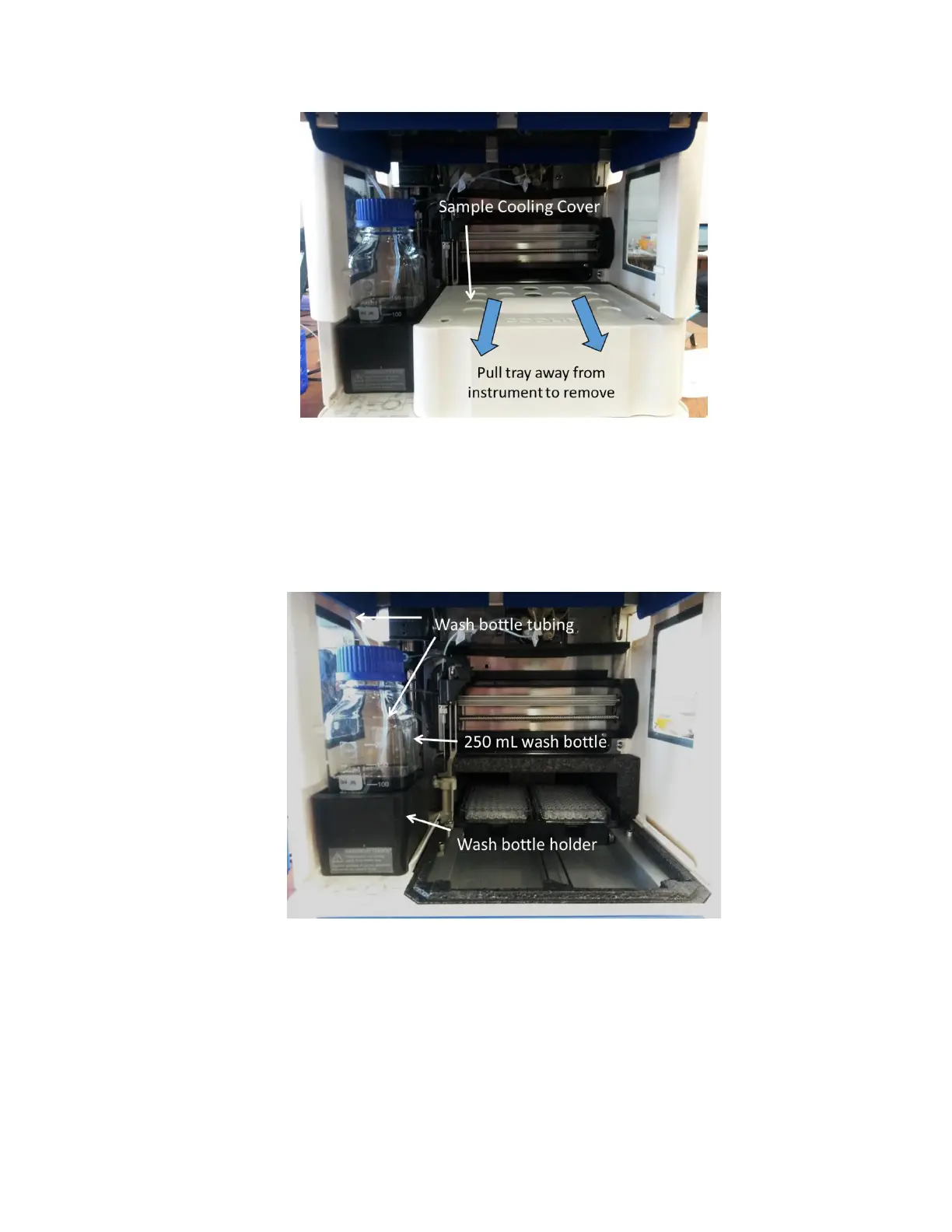

Figure 1.4 How to remove sample cooling cover.
2. Fill the 250 mL Wash Bottle with a solution of 80% isopropanol (v/v in DI water).
3. Insert the Wash Bottle into the holder located on the left side of the sampling compartment,
and insert the wash tube into the bottle, ensuring it reaches the bottom [Figure 1.5]. The wash
tube is the larger semi-opaque tube located at the top left near the back of the sampling
compartment.
Figure 1.5 Wash bottle installed in the wash bottle holder with tubing inserted.
4. There are two tubes protruding from the bottom of the OpenSPR. Insert those tubes down
through the slot located on the top plate of the XT autosampler [Figure 1.6]. The OpenSPR
should rest overtop of this slot on the XT autosampler.
