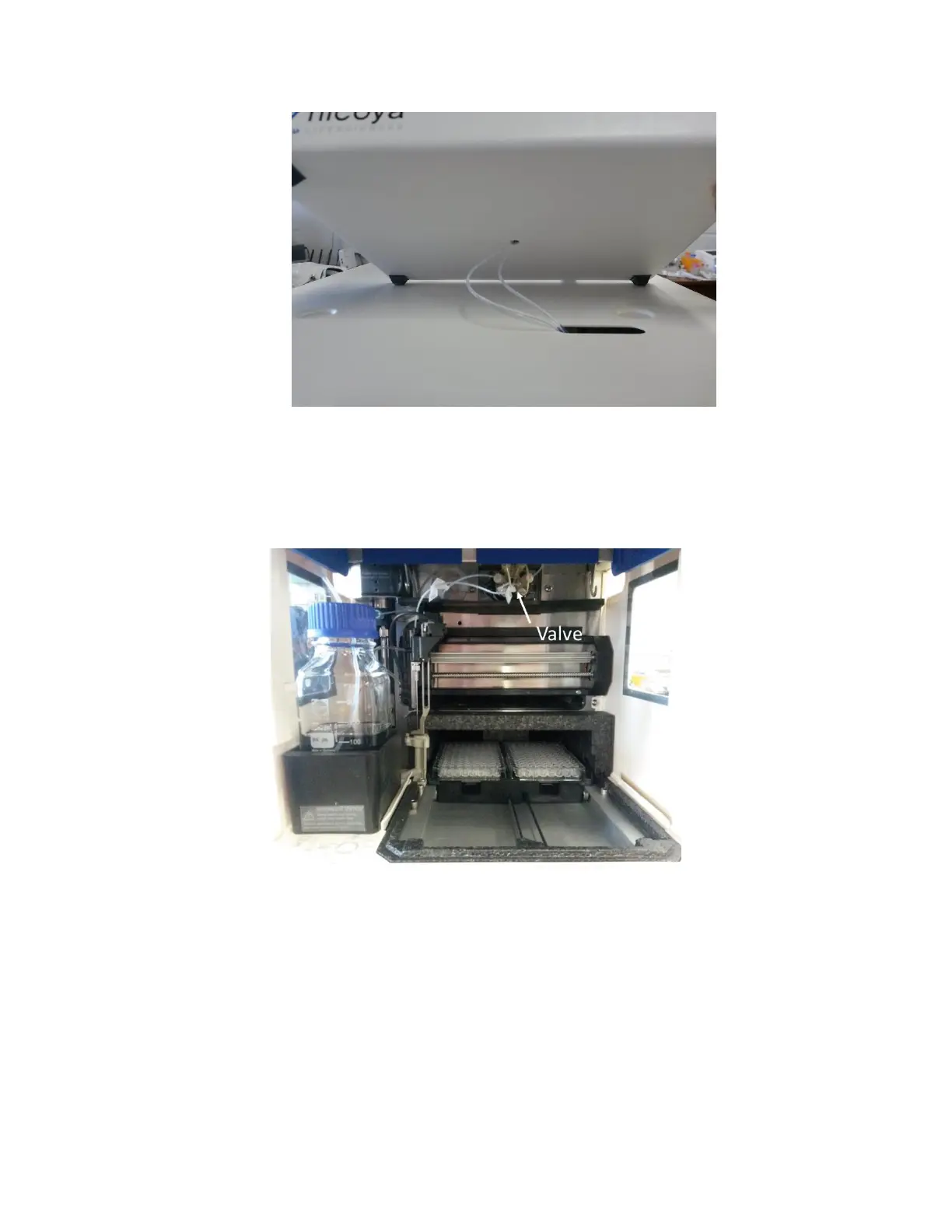

Figure 1.6 Insert tubes from bottom of OpenSPR down through the slot on top of the XT autosampler.
5. These two tubes will need to be connected to the valve inside of the sample chamber [Figure
1.7]. The two tubes should be labelled “1” and “6”. The tube labelled “1” needs to be
connected to valve position 1, and the tube labelled “6” needs to be connected to valve
position 6 [Figure 1.8].
Figure 1.7 Valve located inside of sample chamber.
