Chapter 4. Capturing Color Images (Standard Detector) A1
15
4.7 Determine image acquisition conditions and acquire images.
(1) Click the
[Laser InterLocked] button to reset blinking and to enable laser oscillation with
the software.
Note: If the optical path is not switched to A1, blinking cannot be reset even though the [Laser
InterLocked] button is clicked.
(2) Select the laser and channel to be used.
(3) If you want to acquire a transmitted image together with a confocal image, click the TD [IN] button and
check the TD checkbox.
Note: Before acquiring a transmitted image, turn off the light above the microscope.
(4) Select the laser wavelength to be used from [Pinhole].
Select a pinhole size best suited for the objective with [▲Home
].

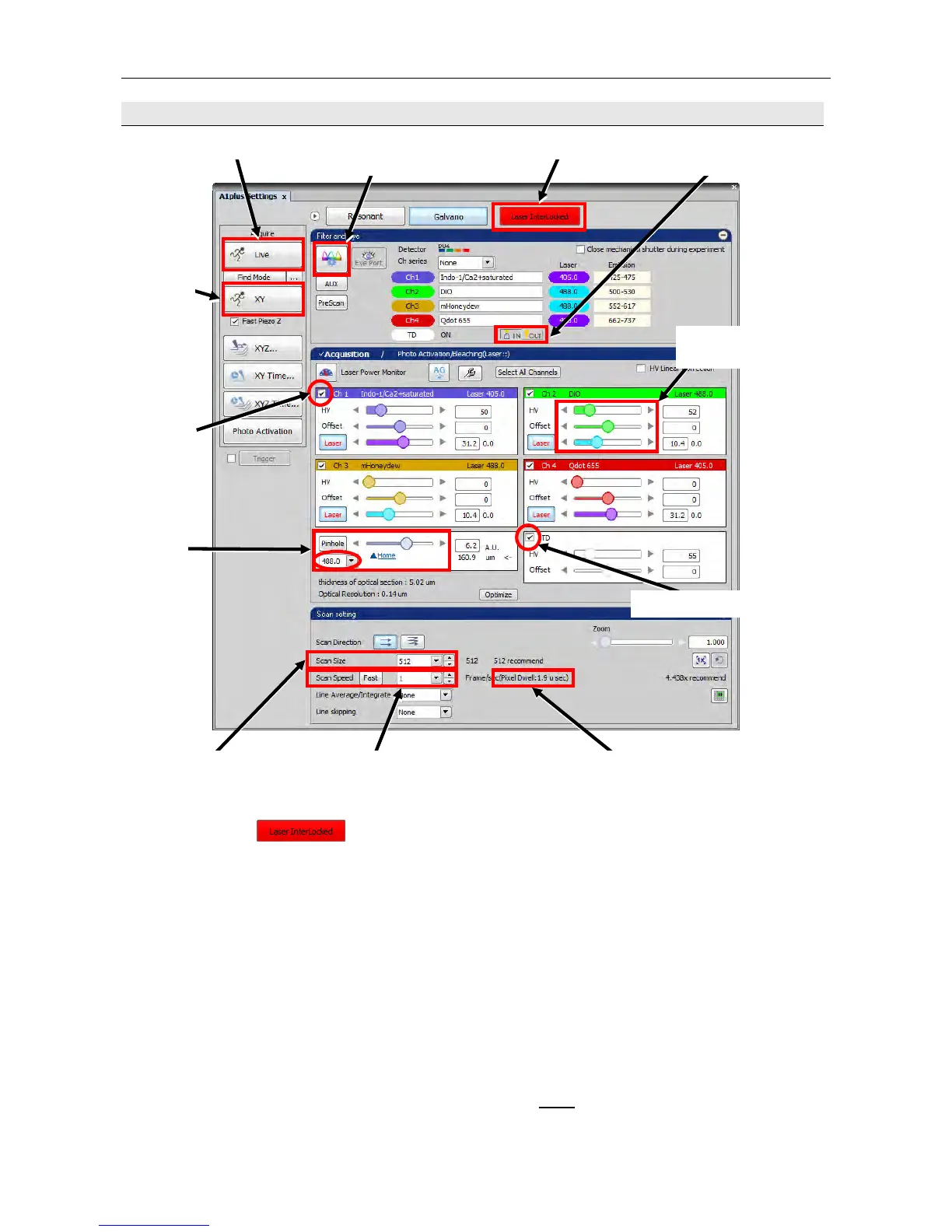

(5)-1 Live (Starting scanning)
Checking the
settings
(3)-1 Selecting a
transmitted image
(1) Resetting interlock
(5)-2 Adjusting laser power
and HV
(3)-2 Selecting a transmitted image
(9)
A
cquisition
(2)
Selecting a
laser
(4)
Selecting a
pinhole
(7)-1 Selecting resolution (7)-2 Laser application time per pixel (7)-3 Selecting scan speed
