4 Applications
70 Total Station NPL-322 Instruction Manual

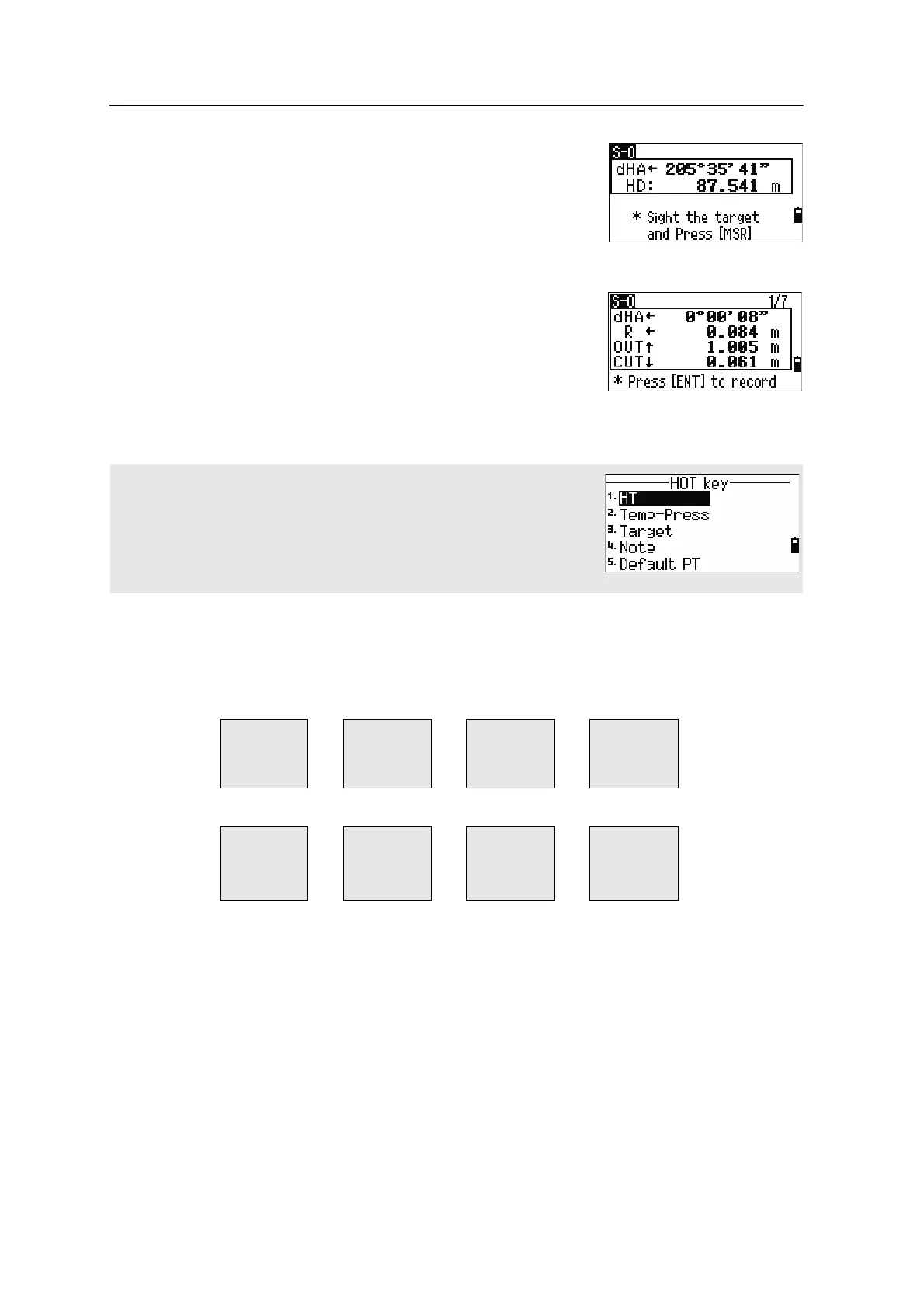

3. Rotate the instrument until the dHA is close to
0°00'00".
4. Sight the target and press
[MSR1] or [MSR2].
When the measurement is completed, the
differences between the target position and the
stakeout point are displayed.
Once a measurement is taken, the Cut/Fill value and Z coordinate are updated
as the VA is changed.
Using [DSP] to switch between display screens
Press
[DSP] to switch between the Stakeout display screens. The following screens are
available:
The S-O8 screen is only available if the secondary distance unit is set. For more
information, see Others settings, page 118.
Every time you press
[DSP], the next screen appears. If you press [DSP] in the last screen
(S-O7, or S-O8 if the secondary distance unit is set), the S-O1 screen appears.
To customize the S-O2, S-O3, and S-O4 screens, hold down
[DSP] for one second. For
more information, see Customizing items in the Basic Measurement Screen (BMS),
page 35.
dHA Difference in horizontal angle to the target point
R/L Right/Left (Lateral error)
IN/OUT In/Out (Longitudinal error)
CUT/FILL Cut/FilL
If you press [HOT] in any observation screen, the HOT key menu appears. You
can use this menu at any time to change HT and T-P.
S-O1 S-O2 S-O3 S-O4
dHA←
R←
OUT↑
CUT↑
HA
VA
SD
HA
VD
HD
HL
V%
HD
S-O5 S-O6 S-O7 S-O8
X
Y
Z
dX
dY
dZ
rSD
rVD
rHD
HD
VD
SD
