Electrical System 45Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber

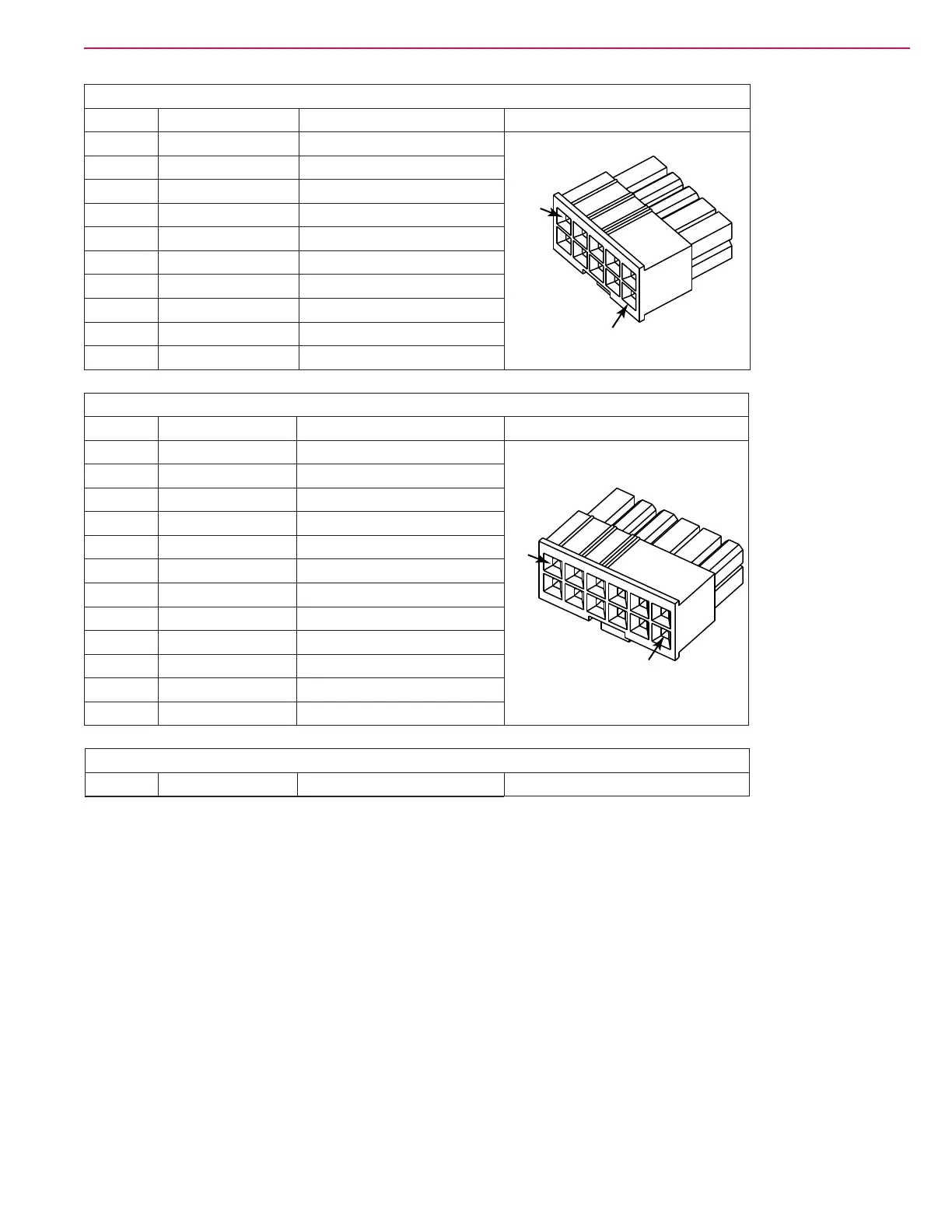

Main Machine Controller J1 Connector
Pin # Name Wire Color, ID
J1-1 Detergent Pump+ Red/Yel, W050
1
10
J1-2 Not Used
J1-3 Detergent Pump- Blu/Gry, W051
J1-4 Deck Lift+ Blu, W054
J1-5 Deck Lift- Orn/Blk, W055
J1-6 Not Used
J1-7 Not Used
J1-8 B- Yel/Blk, W165
J1-9 Squeegee Lift+ Blk/Yel, W205
J1-10 Squeegee Lift- Wht/Grn, W206
Main Machine Controller J2 Connector
Pin # Name Wire Color, ID
J2-1 B- Blk, W162
1
12
J2-2 B- Blk, W161
J2-3 Charger Comm Yel/Orn, W174
J2-4 Speed Pot Out Blk/Wht, W068
J2-5 Speed Pot Low Vio, W065
J2-6 Speed Pot High Yel, W061
J2-7 B- Blk, W163
J2-8 B- Blk, W164
J2-9 Vacuum Amps Brn/Red, W196
J2-10 Brush Amps Yel/Vio, W201
J2-11 Position 2 Switch Blk/Wht, W224
J2-12 Position 1 Switch Red/Vio, W225
Main Machine Controller J3 Connector
Pin # Name Wire Color, ID
To Next Page
