Nokia 7302 - Figure 18 VPRN and V-VPLS Virtual Port Interconnection Model; Figure 19 Saps and Virtual Port Object Model

FD 100/320Gbps NT and FX NT IHub Services Guide Virtual Private LAN Service
Issue: 13 3HH-11985-AAAA-TQZZA 165

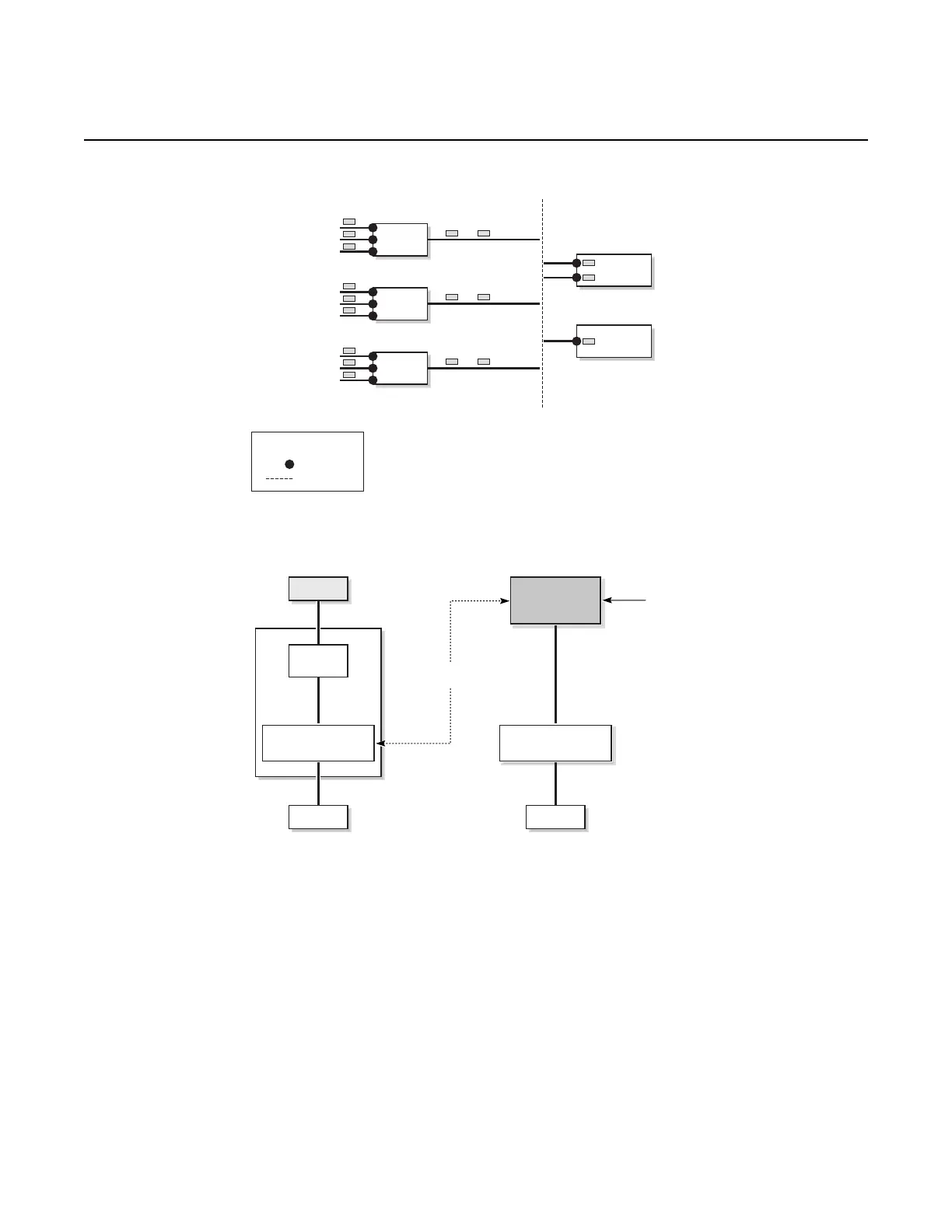

Figure 18 VPRN and v-VPLS virtual port interconnection model
Figure 19 SAPs and virtual port object model
v-VPLS
Vlan 17
My-Own-MAC@
Virtual port
SAP
VPRN_1
v-VPLS
Vlan 19
My-Own-MAC@
v-VPLS
Vlan 23
My-Own-MAC@
VPRN_2
Legend:
SAP
(Atribute: VLAN-id)
VPRN
1
1
1
1
1
1
n
n
Port
SAP
(Atribute: VLAN-id)
n
1
1
n
Port
Virtual port Physical/LAG port
IP
interface
v-VPLS
(type=v VPLS,
VLAN-id)
Virtual association
(maintained by IWM)
All SAPs must
have the same
VLAN-id
