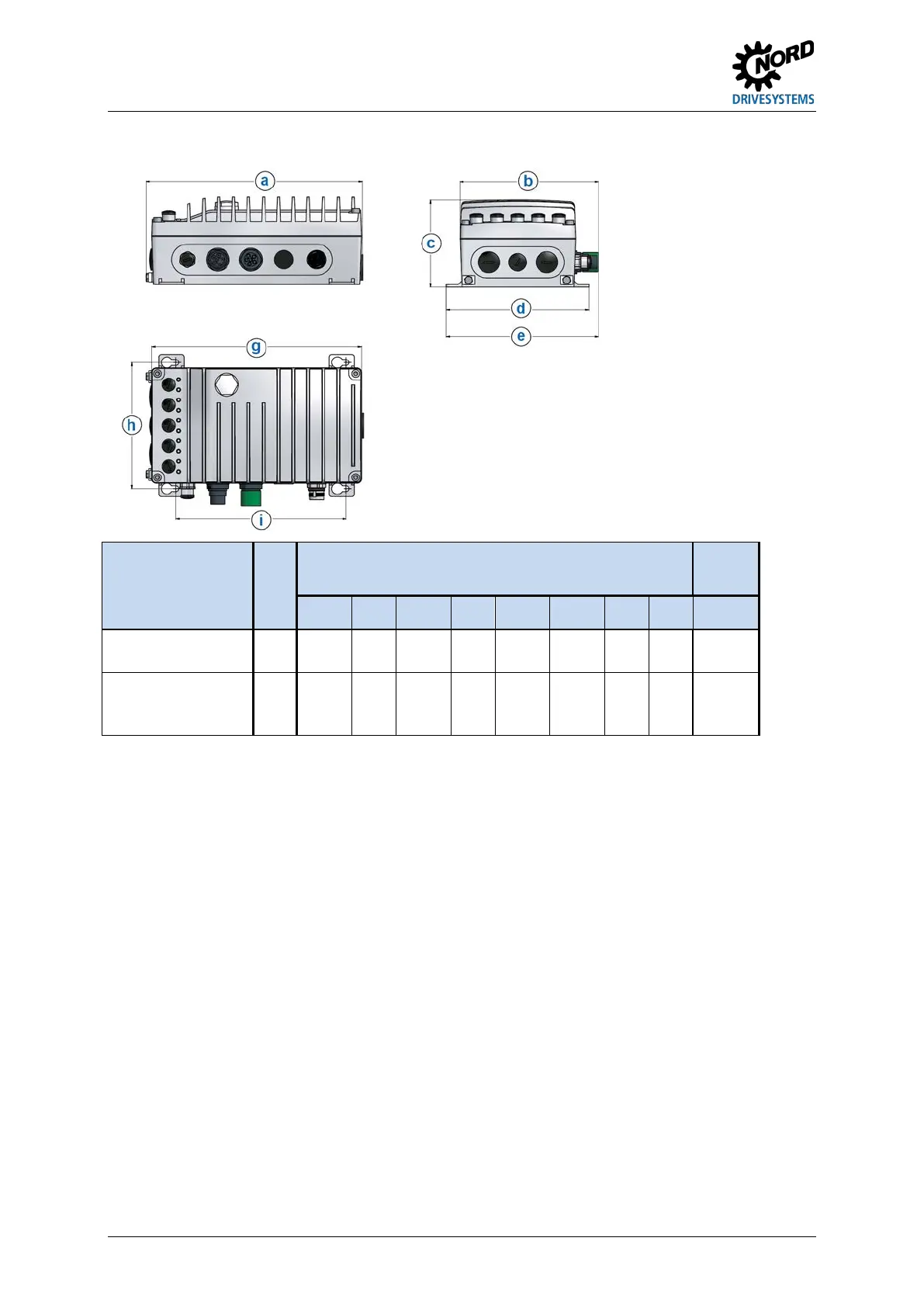

2.4 Dimensions NORDAC ON and NORDAC ON+, wall-mounted
Device type Size
Housing dimensions
[mm]
Weight
[kg]
a b c d e g h i
SK 300P-360-340-A
SK 300P-450-340-A
1 211 146 83.25 150 160.4 205.5 132 161 1.65
SK 3xxP-370-340-A
SK 3xxP-750-340-A
SK 3xxP-950-340-A
2 243.5 155 98.3 160 170.4 235 142 191 2.1
