Nordson Asymtek X-1010

Training Guide Course No. 196514
Level 2 Maintenance, X-1000 Series Dispensing Systems 2-165 P/N 196515 (Revision A)
Diagram Sheet 2-18-3

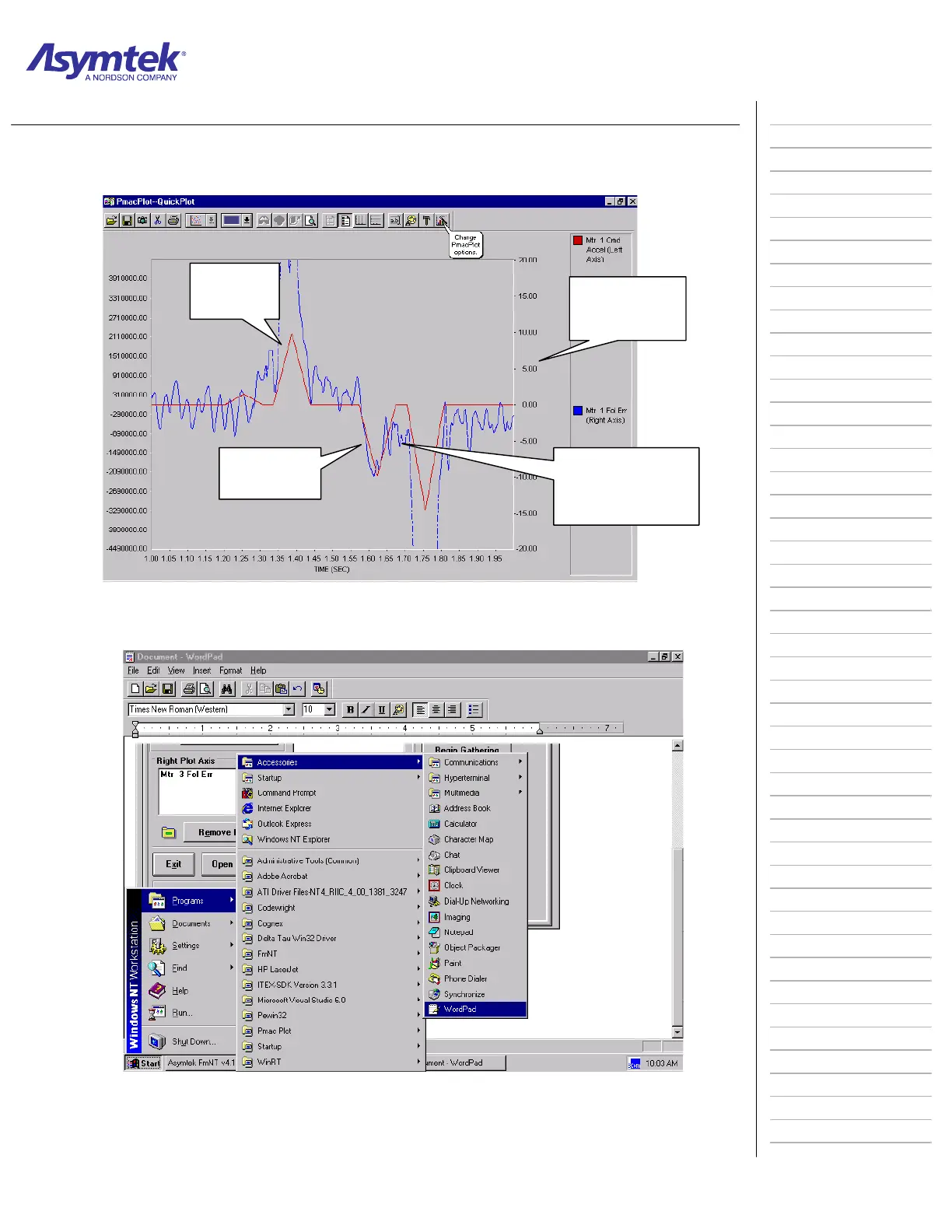

Analyzing and Printing Data
Acceleration
Move in X
(Mtr #1)
5 counts equal 1
mil or 25 um
(since 5um/count
encoders)
Deceleration
Move. Stops X.
20 ms after deceleration
peak is when following
error is measured. Here
it is 5 counts (25 um, or 1
mil).
Sample Data
Starting WordPad
