Nordson Asymtek X-1010 User Manual

Training Guide Course No. 196514
Level 2 Maintenance, X-1000 Series Dispensing Systems 4-130 P/N 196515 (Revision A)
Switch Main Circuit Breaker
to
ON (I) position.
Are the three top LEDs
illuminated?
Press the green ON (I) button on
the Operator’s Console, and
enter FmNT.
Inspect the Height Sensor Cable
(P/N 06-4590-00) for damage or
secure connection.
Height Sensor Cable (P/N
06-4590-00) has failed.
Is Height Sensor Cable
damaged?
Ensure Cable is securely
connected and then go to
Height Sensor Probe
Verification.
Locate three top LEDs on the
Dispense Head Controller and
verify power to the unit.
Go to System Power Fault
Isolation Procedure
No
Yes
Yes No
Switch Main Circuit Breaker
to
ON (I) position.
Are the three top LEDs
illuminated?
Are the three top LEDs
illuminated?
Press the green ON (I) button on
the Operator’s Console, and
enter FmNT.
Inspect the Height Sensor Cable
(P/N 06-4590-00) for damage or
secure connection.
Height Sensor Cable (P/N
06-4590-00) has failed.
Is Height Sensor Cable
damaged?
Is Height Sensor Cable
damaged?
Ensure Cable is securely
connected and then go to
Height Sensor Probe
Verification.
Locate three top LEDs on the
Dispense Head Controller and
verify power to the unit.
Go to System Power Fault
Isolation Procedure
No
Yes
Yes No

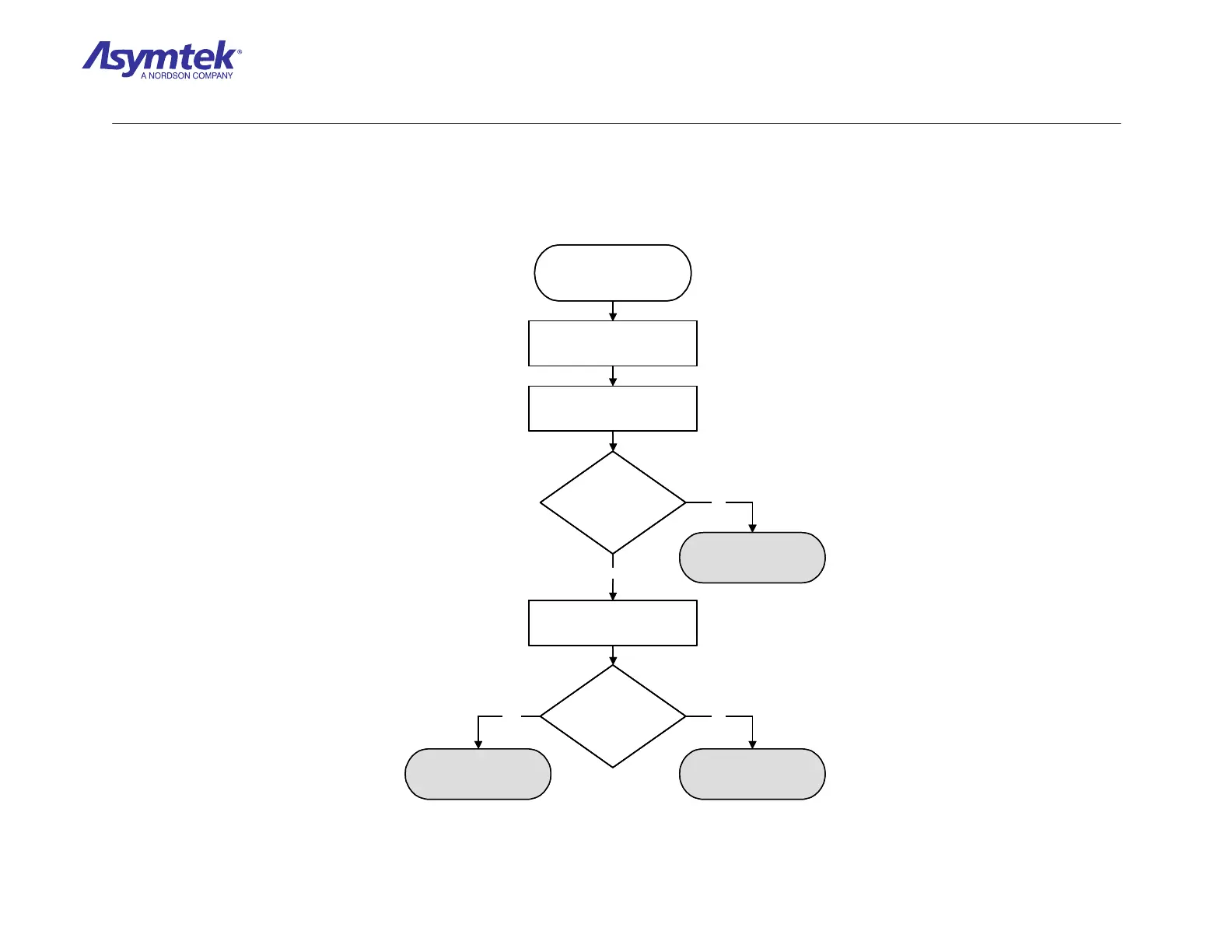

Diagram Sheet 4-10-1
Height Sensor Fault Isolation Procedure – Height Sensor Power Verification
