Setting Up Motor Run Status Monitoring
If desired, you can set up the melter to allow remote monitoring of the run
status (running or not running) of the pump motors.
Wiring
To use the motor run status monitoring capability, connect wiring from the
parent machine to the appropriate terminals on terminal block XI inside the
electrical enclosure. See Figure 3‐6 for the location of terminal block XI.
Refer to Table 3‐6 for the terminal numbers that correspond to each
input/output.
NOTE: The relay contact between terminals XI:25/XI:26 and XI:27/XI:28 is
normally open. When the motor is running, these contacts should close.
Keypad Buttons
The motor driver keypad is not shipped with the melter, in order to use the
keypad you will need to order the keypad service kit (P/N 7411739)
separately.

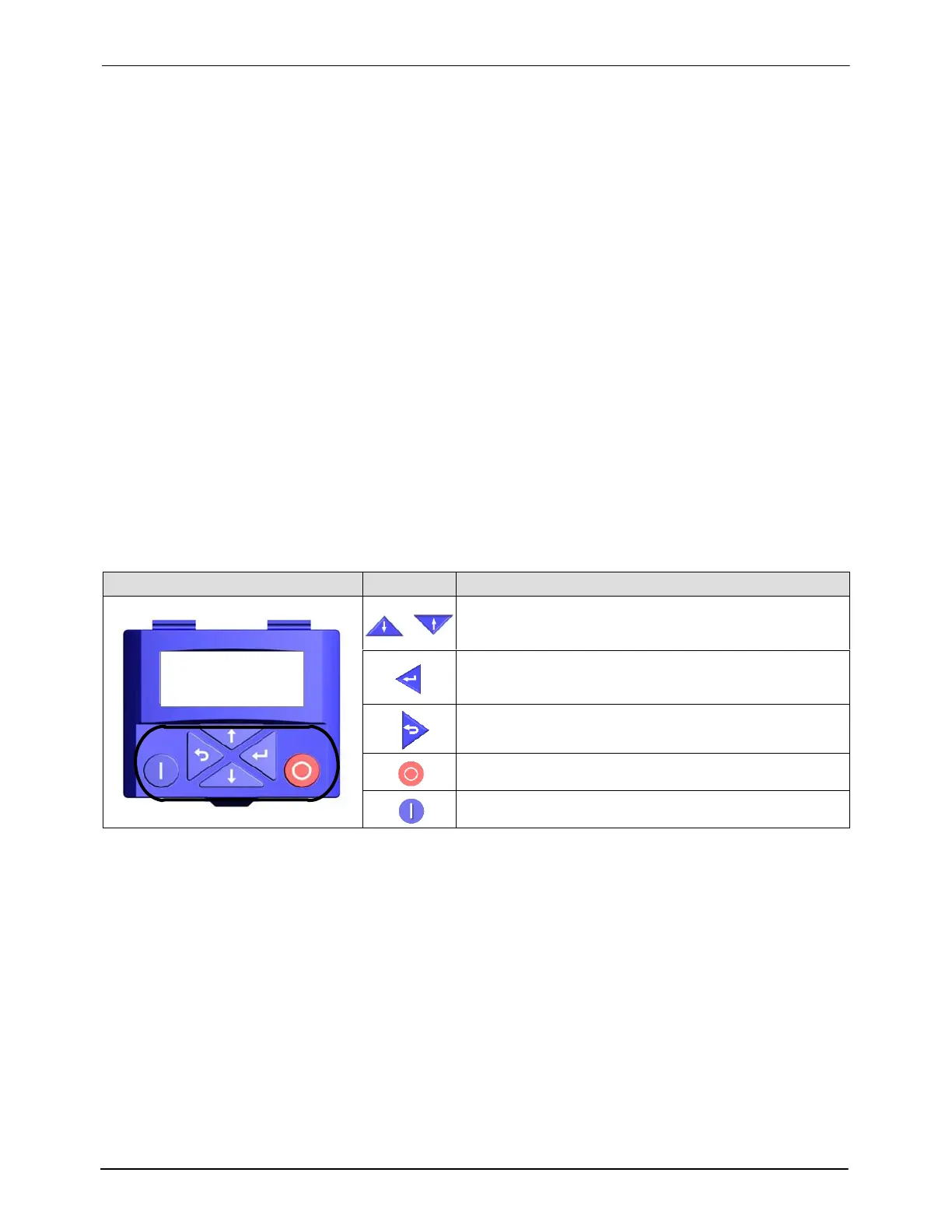

An explanation of the keypad button functions is given in the following table.
Keypad Buttons Description
PAR 430
Analog Input 1
REM AUTO SET
8
Menu navigation (UP/Down).
Adjust parameter values.
Enter (sub-) menu/parameter.
Confirm parameter.
Exit (sub-) menu/parameter.
Stop inverter
Release inverter
To Next Page
