AFC-600 Programming PN 51032:A 3/8/99 37
+RZWR8VH)ODVK6FDQ3ROO
)ODVK6FDQ3ROO2
WLRQV
From the Program Change Selection screen (Figure 7 on page 14), press the
4
key to
access the FlashScan Poll selection screen (Figure 44).

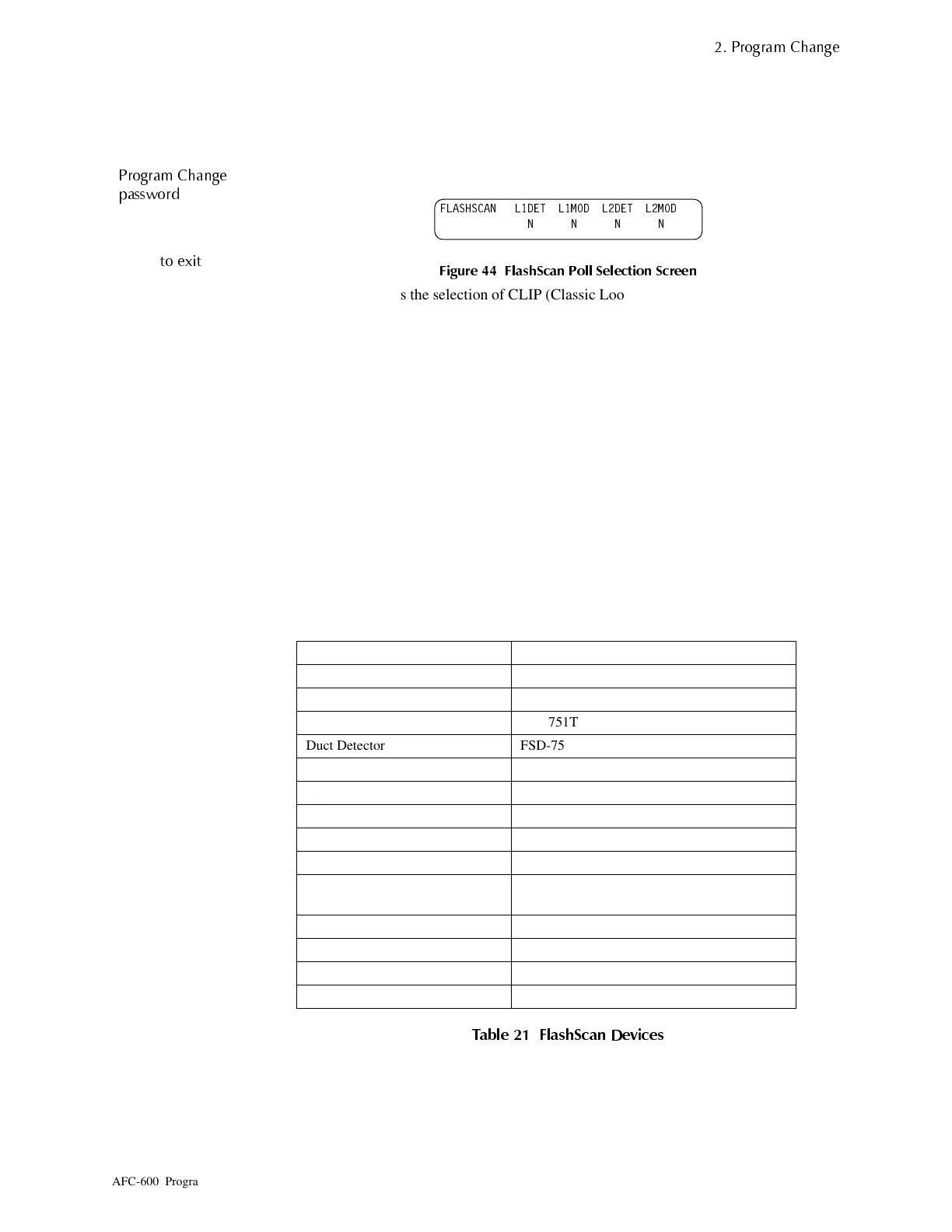

)LJXUH )ODVK6FDQ 3ROO 6HOHFWLRQ 6FUHHQ
This menu allows the selection of CLIP (Classic Loop Interface Protocol) or FlashScan
detectors and modules for each loop. Once this screen is accessed, the cursor will be
positioned underneath the Loop #1 Detector selection, blinking the currently selected
protocol type. The default selections are shown in Figure 44. This indicates that both
Loop #1 and Loop #2 detectors and modules are selected to use CLIP devices. If
FlashScan devices are to be employed, change the blinking cursor by pressing the
Y
key
or toggle it by using the
PREVIOUS
or
NEXT
key. After the selections have been made to
the detectors and modules of both loops, press the
ENTER
key, at which time the panel
will reset.
Observe the following protocol when using FlashScan devices:
• FlashScan devices can be programmed to run in either CLIP or FlashScan mode
• FlashScan devices cannot be mixed with CLIP devices on the same loop, unless the
entire loop is programmed for CLIP mode
• FlashScan programmed detectors cannot be used with CLIP modules on the same
loop
The following table lists the available FlashScan devices:
7DEOH )ODVK6FDQ 'HYLFHV
Type Notifier
ION FSI-751
Photo FSP-751
Photo/Thermal FSP-751T
Duct Detector FSD-751
Laser Detector FSL-751
Multi Detector FSM-751
Thermal FST-751
Thermal R-O-R FST-751R
Monitor Module FMM-1
Micro Monitor Module (for pull
station replacement)
FSM-1
Mini Module FMM-101
2-Wire Detector Monitor Module FZM-1
Control Module - NAC FCM-1
Control Module - Relay FRM-1
&
3UR
UDP &KDQ
H
DVVZRUG
&
)
WR H[LW
)/$6+6&$1 /'(7 /02' /'(7 /02'
1111
