Installing an AMG
9RLFH $ODUP 6\VWHP
AFP-300/AFP-400 Installation PN 50253:C1 05/22/97 4-3

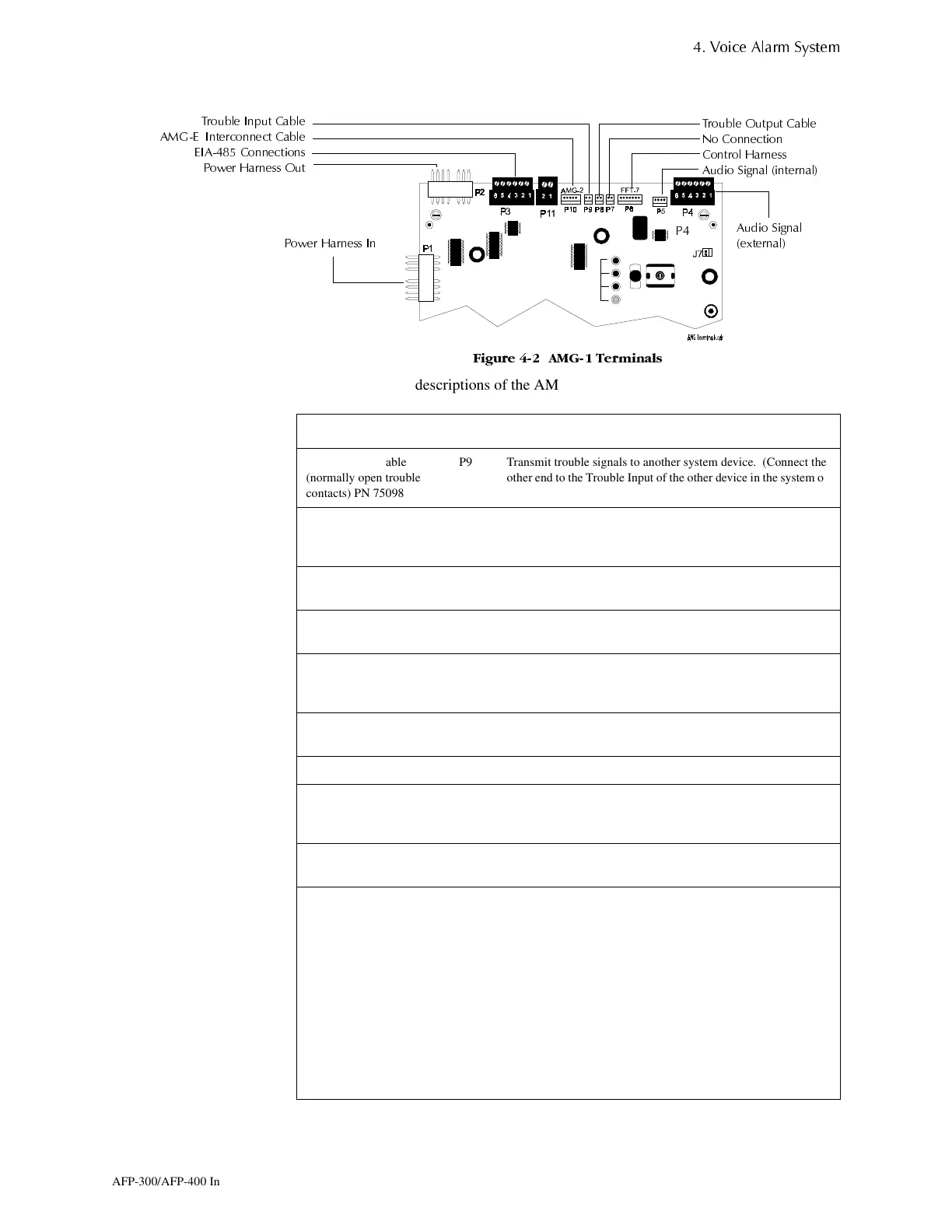

Figure 4-2 shows the AMG-1 terminals:
)LJXUH $0* 7HUPLQDOV
Table 4-2 contains descriptions of the AMG-1 terminals:
Table 4-2 AMG-1 Terminal Connections
3
3
7URXEOH ,QSXW &DEOH
$0*( ,QWHUFRQQHFW &DEOH
(,$ &RQQHFWLRQV
3RZHU +DUQHVV 2XW
7URXEOH 2XWSXW &DEOH
1R &RQQHFWLRQ
&RQWURO +DUQHVV
$XGLR 6LJQDO LQWHUQDO
$XGLR 6LJQDO
H[WHUQDO
3RZHU +DUQHVV ,Q
3
Input/Output Plug Used to...
Trouble Input Cable
(normally open trouble
contacts) PN 75098
P9 Transmit trouble signals to another system device. (Connect the
other end to the Trouble Input of the other device in the system or
to J4 (Aux Trouble Input) on the MPS-400.)
Trouble Output Cable
(normally open trouble
contacts) PN 71033
P8 Transmit trouble signals to another device in the system.
Power Harness Out
PN 75099
P2 Connect to another power supply in a power supply chain.
Power Harness In
PN 75396 or 75100
P1 Provides power for the AMG-1 from the Main Power Supply.
(Connect the other end to J1 on the MPS-400.)
AMG-1 Interconnect
Cable PN 75136
P10 Connect from the Trouble Output contacts on another AMG-1.
A closure signals the AMG-1 that the connected device is in
trouble.
EIA-485 Connections P3 Lets the control panel communicate with the AMG-1 through the
ACS mode EIA-485 port.
No connection P7 N/A
Audio Signal Connections
PN 75110
P5 Allow harnessing the audio signal from the AMG-1 to Audio
Amplifiers in the same cabinet via P5, or wired to amplifiers in
remote cabinets through P4.
Control Harness
PN 75097
P6 Connect to P4 on a Fire Fighter’s Telephone (FFT-7) or cable
from the Audio Voice Link (AVL-1).
Low Level Audio
PN 75100
P4 Allows wiring of the AMG audio output to an Audio Amplifier
as follows:
Connector From
AMG...
To
AA...
Low Level Audio Output to first
amplifier
P4-5
P4-4
P3-5
P3-4
Low Level Audio Output
Return to last amplifier (optional)
P4-2
P4-1
P3-2
P3-1
