Installing Remote Printers and CRTs
,QVWDOODWLRQ
AFP-300/AFP-400 Installation PN 50253:C1 05/22/97 2-37
,QVWDOOLQJ D .HOWURQ
3ULQWHU

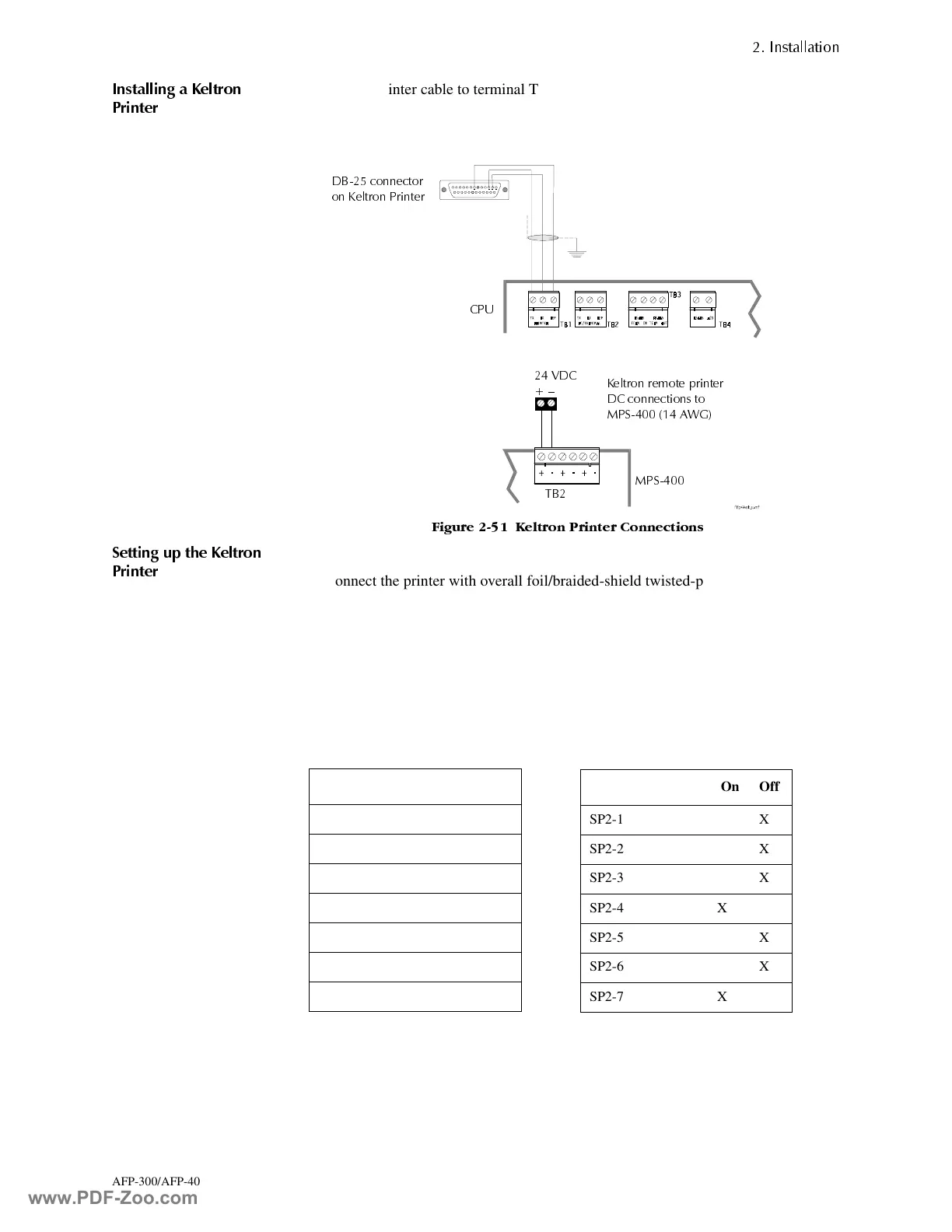

Connect the printer cable to terminal TB1 on the CPU as shown in Figure 2-51:
1. Connect the DB-25 connector to the EIA-232 port of the Keltron printer.
2. Connect DC power from terminal TB2 on the MPS-400.
)LJXUH .HOWURQ 3ULQWHU &RQQHFWLRQV
6HWWLQJ XS WKH .HOWURQ
3ULQWHU
Set up a Keltron printer as follows:
1. Connect the printer with overall foil/braided-shield twisted-pair cable suitable for
EIA-232 applications (typically 50 feet maximum between the printer and the
control panel is recommended). The printer communicates using the following
protocol:
Baud Rate: 2400
Parity: Even
Data bits: 7
2. Set the printer DIP switches SP1 and SP2 according to settings in Table 2-13:
Table 2-13 Keltron DIP Switch Settings
'% FRQQHFWRU
RQ .HOWURQ 3ULQWHU
.HOWURQ UHPRWH SULQWHU
'& FRQQHFWLRQV WR
036 $:*
&38
9'&
²
036
7%
SP1 settings
:
DIP Switch SP1 On Off
SP1-1 X
SP1-2 X
SP1-3 X
SP1-4 X
SP1-5 X
SP1-6 X
SP1-7 X
SP2 settings
DIP Switch SP2 On Off
SP2-1 X
SP2-2 X
SP2-3 X
SP2-4 X
SP2-5 X
SP2-6 X
SP2-7 X
