IFS-2600 Fire Indicator Panel Section 4 Installation
DOC-01-009 28
Manual Call Point (MCP)
For IFS-2005 Boards:
Panel MCP connection is achieved by wiring from the zone, to the MCP, to the MCP loop then out to the
field with the EOL across the last detector. The MCP is the first device on the circuit and both fault and
alarm conditions will be indicated.

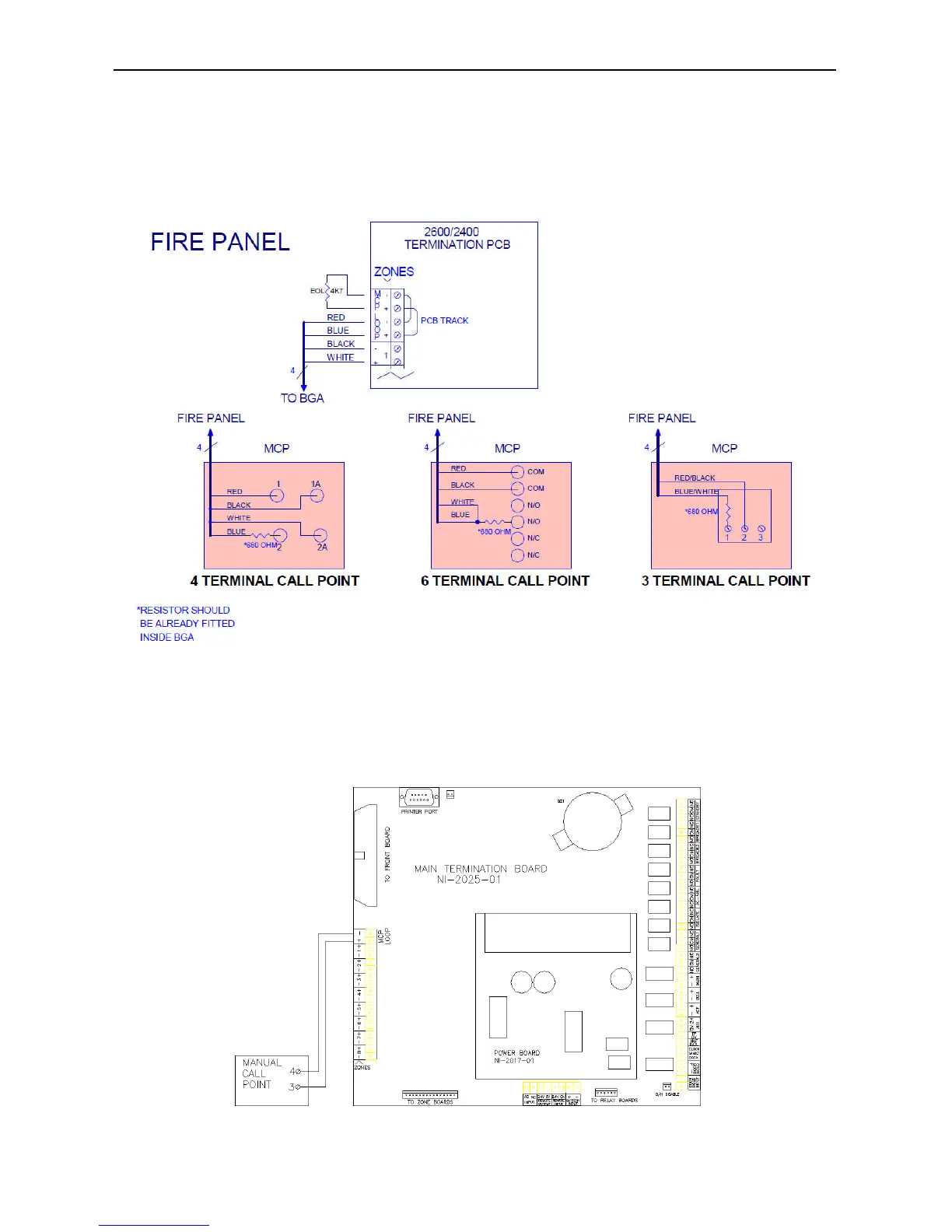

Figure 4-6, Manual Call Point (MCP) for IFS-2005/2006 Boards
For NI-2025-01 Boards:
In case of these boards, MCP connections are achieved by wiring from MCP Loop (+ & -) terminals on
main termination board to the terminals (3 & 4) on MCP. The MCP loop is in parallel with Zone 1 and no
EOL is required.
Figure 4-7, MCP connection for NI-2025-01/2017-01
