IFS-2600 Fire Indicator Panel Section 4 Installation
DOC-01-009 32
IFS804 - JP1-7 Zone Board Addressing
Jumper JP1 to JP7 on zone expansion board IFS-804 selects the addressing for the zones.
Place jumper in link position for the appropriate 8 zones to which the expansion board applies

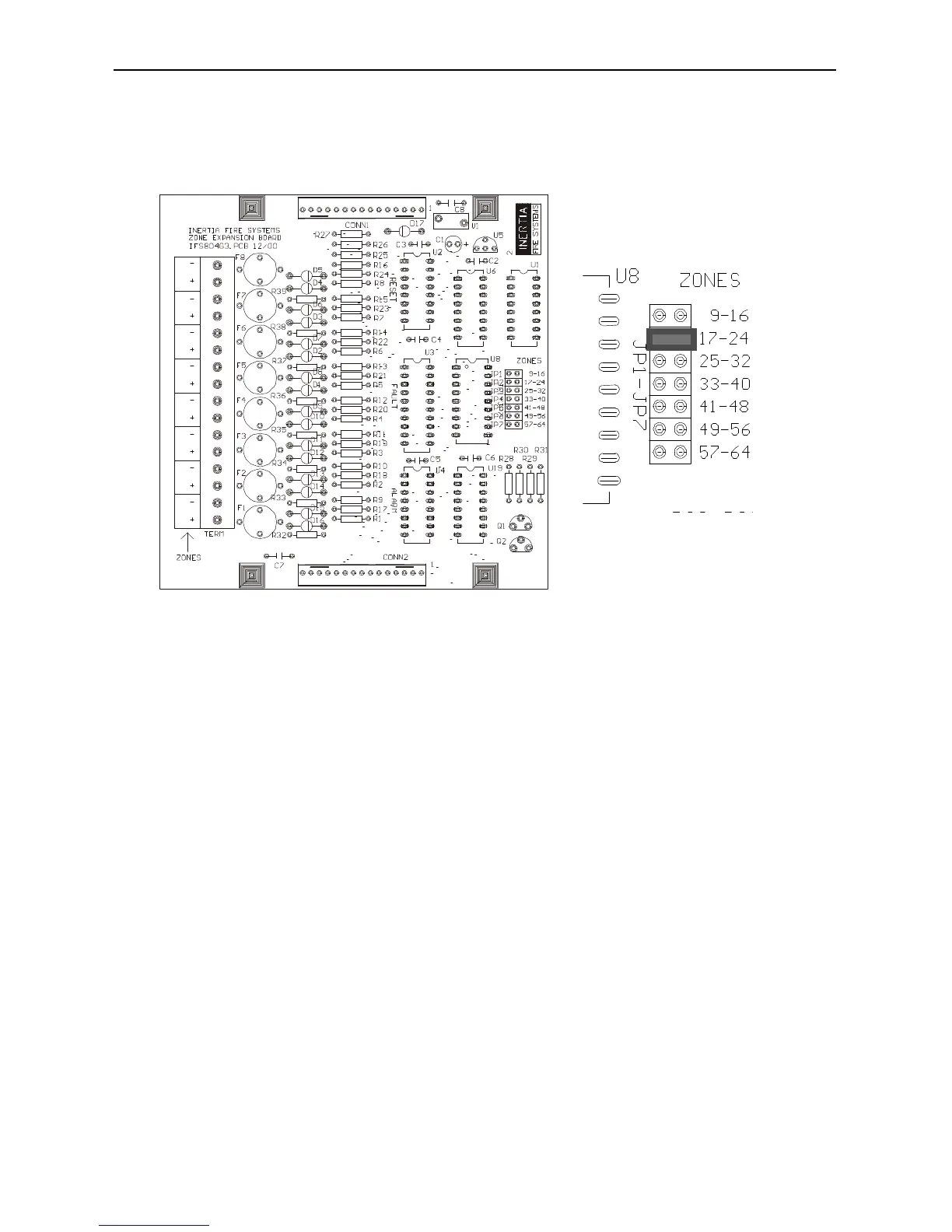

Figure 4-9, Zone addressing
