Oki Data CONFIDENTIAL
42930511TH Rev. 2
142 /
FAN PU BOARD
ID MOTOR(K)
ID MOTOR(Y)
ID MOTOR(M)
ID MOTOR(C)
TONER SUPPLY (KY)
TONER SUPPLY (MC)
JOB OFFSET
TRAY1 GEARED MOTOR
TRAY2 MOTOR
TRAY2 GEARED MOTOR
TRAY2 FEED MOTOR
TRAY2 ROLLER CLUTCH
REGIST MOTOR
REGIST CLUTCH
2ndCLUTCH
TRAY1 MOTOR = MPT MOTOR
FAN POWER
DUP MOTOR 2
DUP MOTOR 1
EXIT SOLENOID
REGISTRATION SHUTTER
FAN FUSER
FACE DOWN SOLENOID
FAN ID
FUSER MOTOR
BELT MOTOR

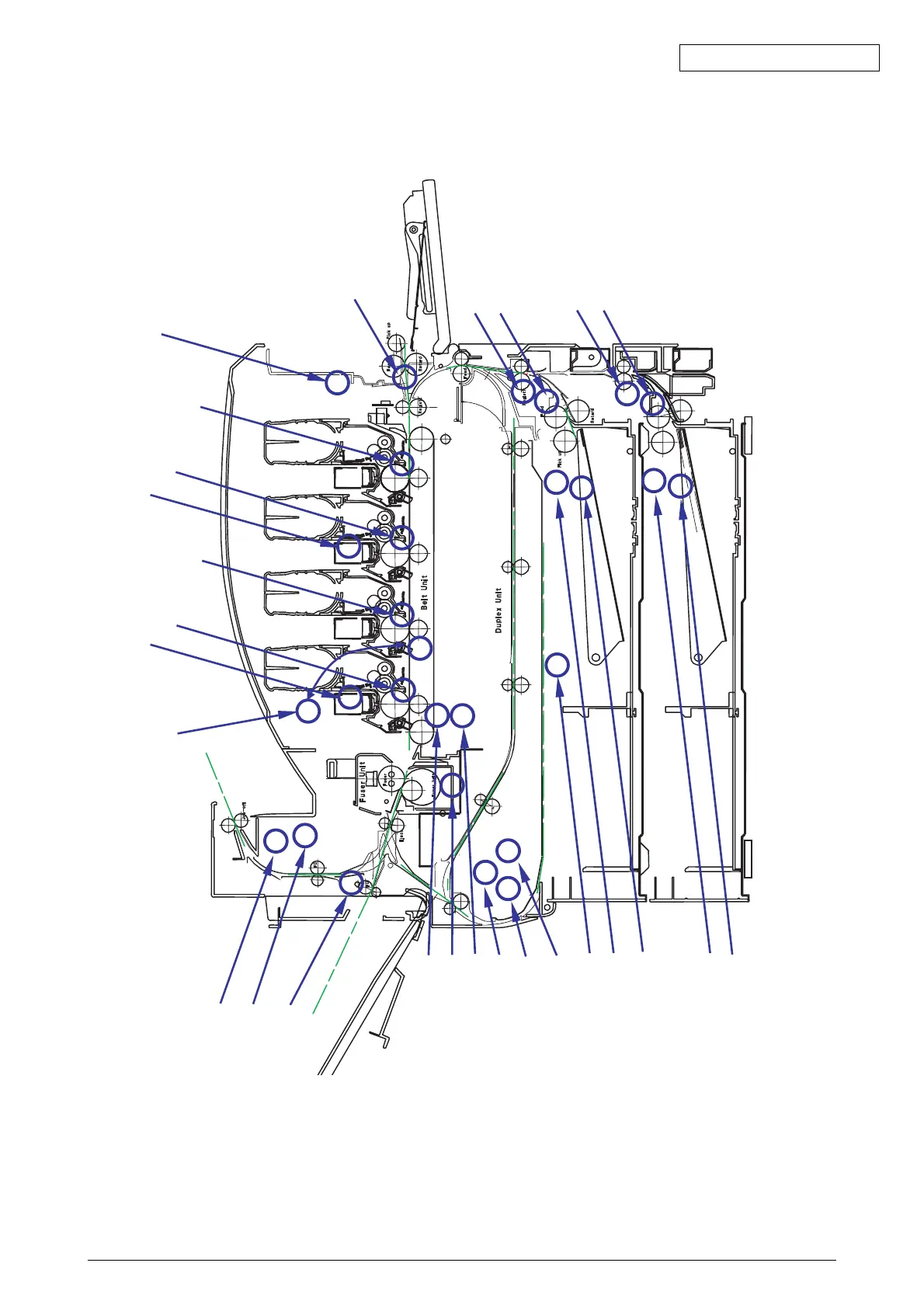

Figure 5-2 Location of Motor and Clutch
141
143
