Middle transport roller
2nd regist roller
1st regist roller
Pickup roller
Feed roller
Feed sensor
Write sensor
IN2 sensor
IN1 sensor
The clutch of
electromagnetism
The clutch of
electromagnetism
Retard roller
Feed motor
Regist motor
Paper

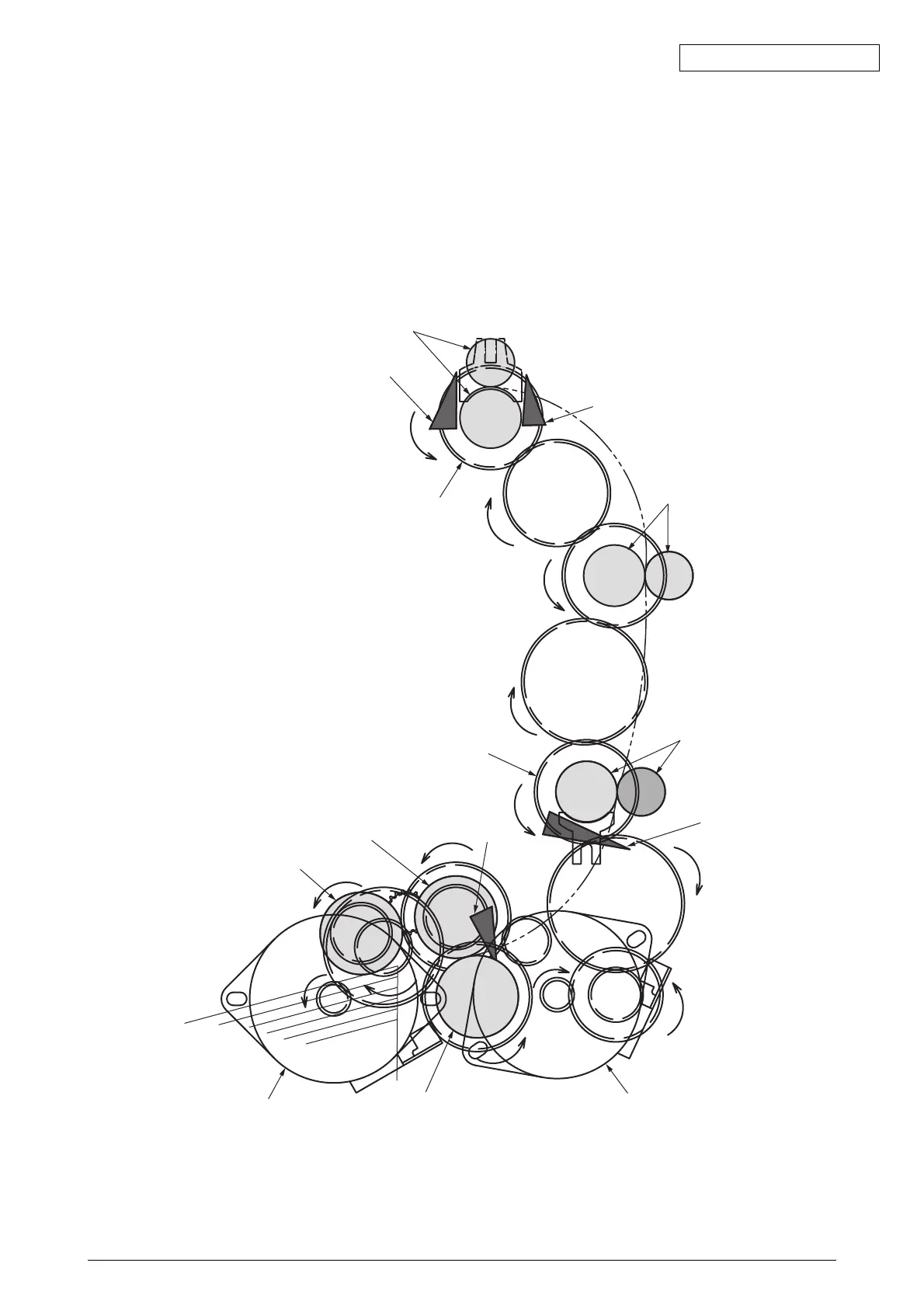

(1) Paper Supplied from the 1st Tray
1. Paper proceeds when the paper supply motor turns (CCW) and the paper supply
clutch is connected, until the IN1 sensor turns ON.
2. When the IN1 sensor is turned ON, a certain volume of paper is further transported
until it is against the 1st resist roller. (this corrects paper skew)
3. After paper has hit the roller while the Resist Motor is running (CW), the electromag-
netic clutch that transmits drive power to the Resist Rollers 1 is connected and paper
is sent 2 to the Feed Belt via Intermediate Feed Rollers and Resist Rollers.
